SHOWER SYSTEM

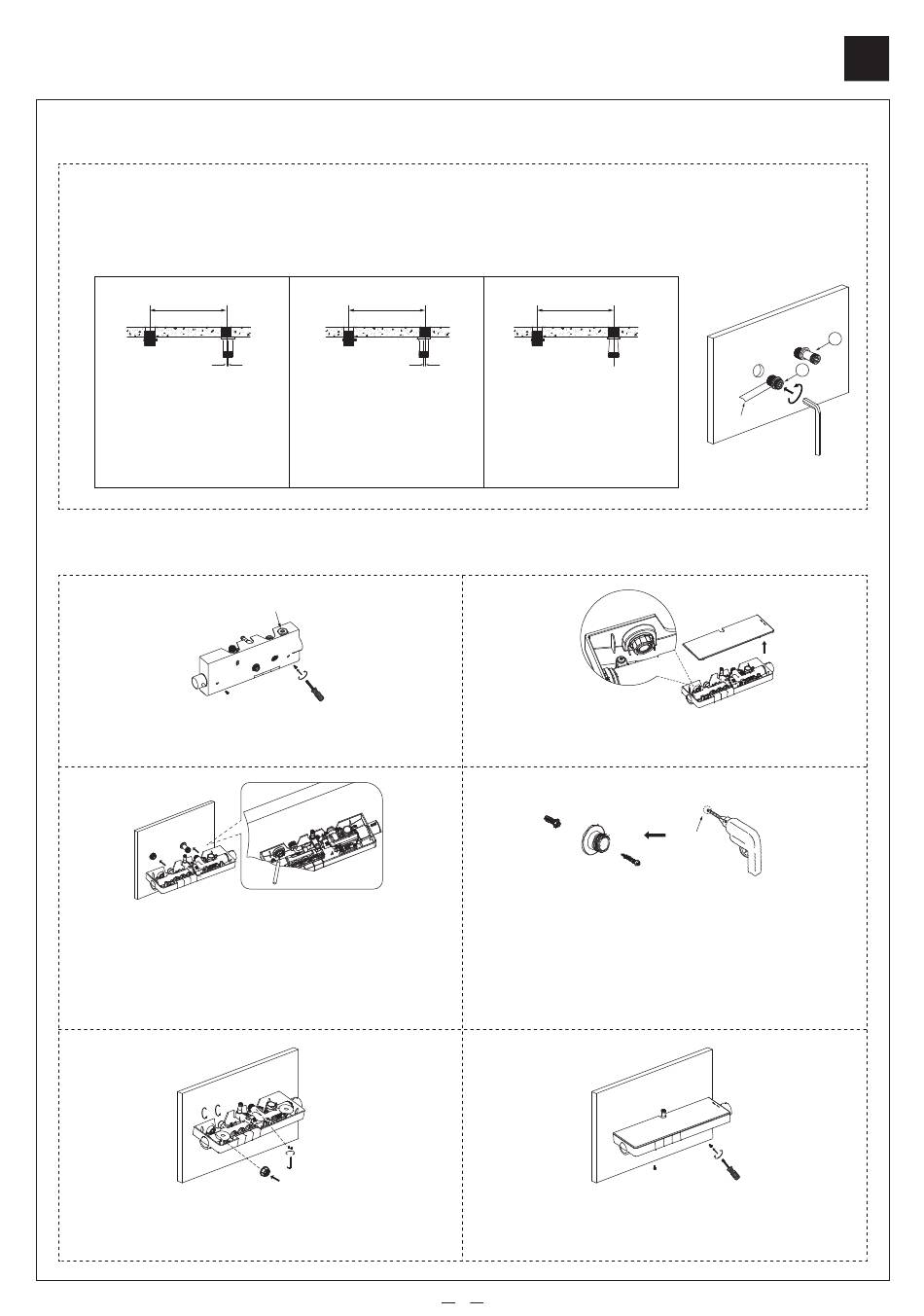

Step 1: Clean the water pipe and install the curved connector
a) Run the water around 1-2 minutes to clean the water pipe.
b) Wrap the teflon tape anticlockwise on the thread of both curved connector and hose connector. Then install
the curved connector to the cold water pipe and hose connector to the hot water pipe. Secure them with
wrench and Allen key(Figure 1).
When the distance between
the hot and cold water outlet the hot and cold water outlet
holes is <150mm, the axis of holes >150mm, the crank foot
the
the crank foot needs to be
rotated to the right.
Step 2: Install the thermostatic shower panel
a) Take the screws out under the thermostatic panel.
c) Put the thermostatic shower panel over the curved connector.
Check the spirit level to make sure thethermostatic shower
panel is level.
d) Press the copper screw on the wall then remove the thermo-
static shower panel. Markthe position of the copper screw on
the wall.
f ) Connect the thermostatic shower panel back on the wall.
Use a wrench to secure the copper screw and to connect
the hot water connector and curved connector .
When the distance between
axis should be turned to the
left.
3M sticker
When the distance between
the hot and cold water outlet
holes ~150mm, the axis of
crank foot should be rotated
to the approximate vertical
direction.
b) Remove the glass plate and unscrew the nut on the left
hand side. Peel off the 3M tape.
e) Remove the copper screw, then use the Φ6mm drill bit to
drill a hole on the marked place. Install the copper screw .
g) Put the glass cover back and connect the raiser rail
connector back to the thermostatic shower panel .
4
EN
Figure 1
Φ6mm
