Acoms TECHNISPORT V FIVE Bedienungsanleitung Seite 6

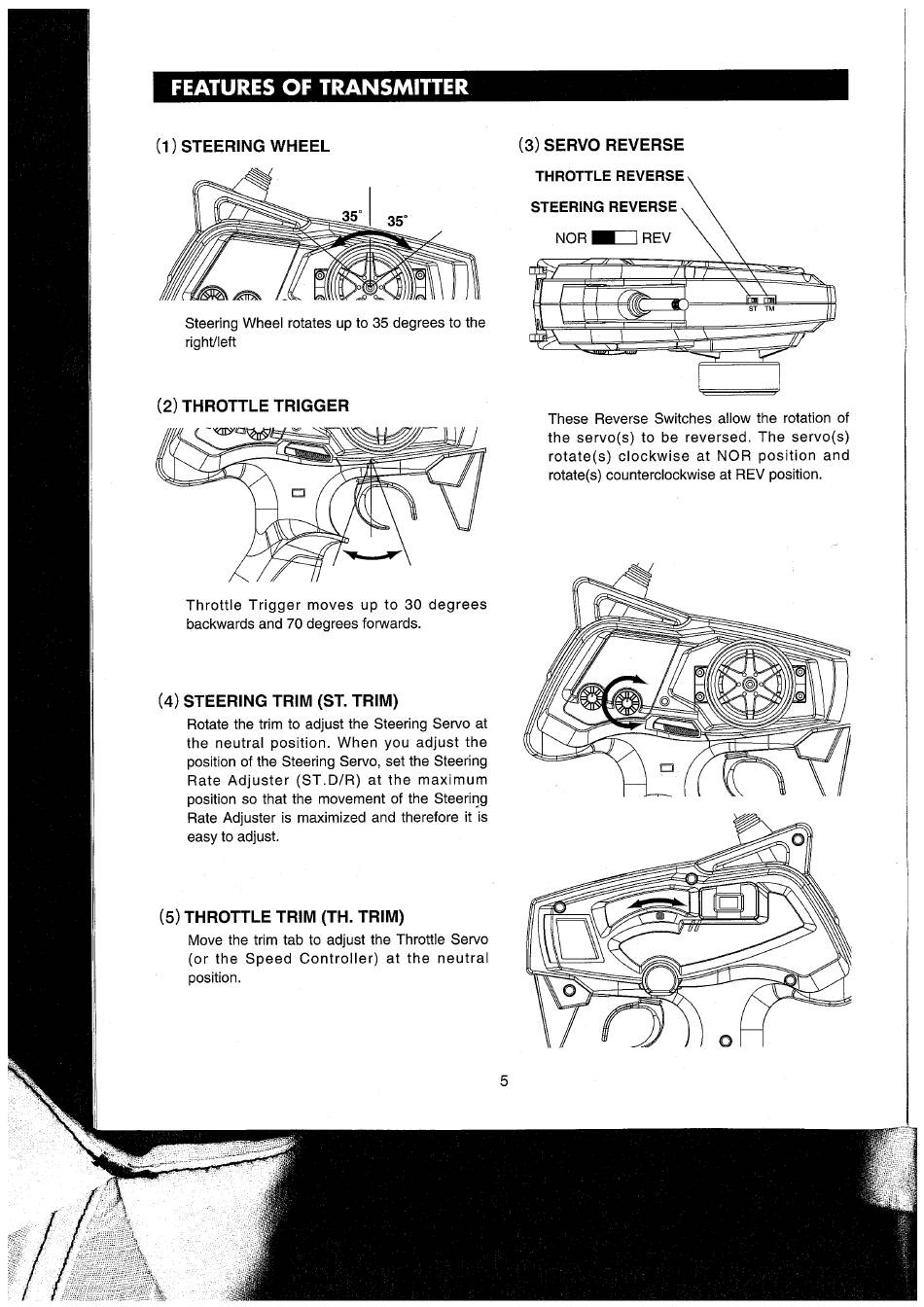

FEATURES OF TRANSMITTER
(1 ) STEERING WHEEL
Steering Wheel rotates up to 35 degrees to the
right/left
(2) THROTTLE TRIGGER
Throttle Trigger moves up to 30 degrees
backwards and 70 degrees forwards.
(4) STEERING TRIM (ST. TRIM)
Rotate the trim to adjust the Steering Servo at
the neutral position.
position of the Steering Servo, set the Steering
Rate Adjuster (ST.D/R)
position so that the movement of the Steering
Rate Adjuster is maximized and therefore it is
easy to adjust.
(5) THROTTLE TRIM (TH. TRIM)
Move the trim tab to adjust the Throttle Servo
(or the Speed Controller)
position.
350
350
When you adjust the
at the maximum
at the neutral
5
(3) SERVO REVERSE
THROTTLE REVERSE
STEERING REVERSE
NOR REV
These Reverse Switches
the servo(s) to be reversed. The servo(s)
rotate(s) clockwise
rotate(s) counterclockwise at REV position.
o
o
ST TM
allow the rotation of
at NOR position and
o
o
o
