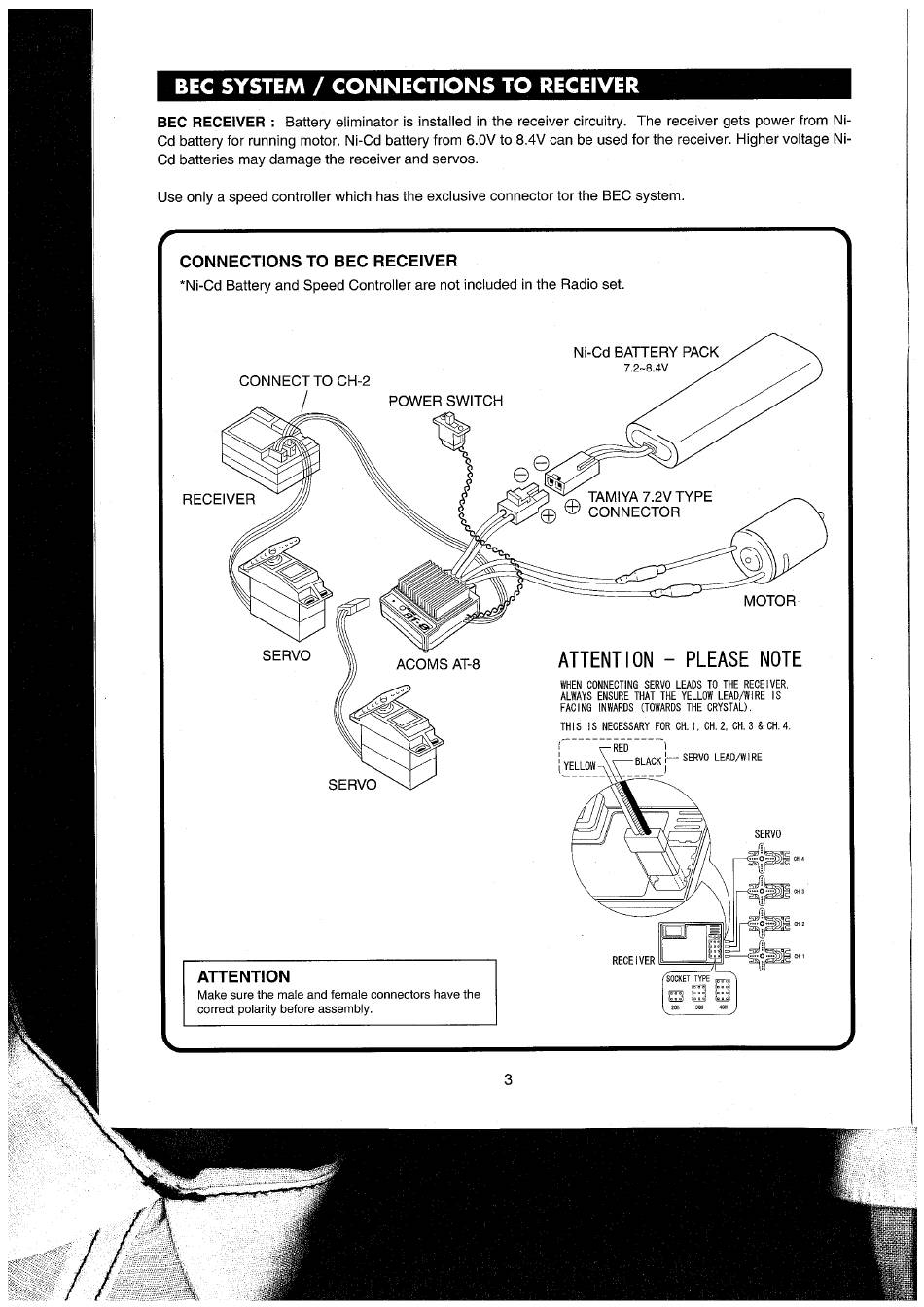

BEC SYSTEM / CONNECTIONS
BEC RECEIVER : Battery eliminator is installed in the receiver circuitry. The receiver gets power from Ni-
Cd battery for running motor. Ni-Cd battery from 6.0V to 8.4V can be used for the receiver. Higher voltage Ni-
Cd batteries may damage the receiver and servos.
Use only a speed controller which has the exclusive connector tor the BEC system.
CONNECTIONS TO BEC
*Ni-Cd Battery and Speed Controller are not included in the Radio set.
CONNECT TO CH-2
RECEIVER
SERVO
SERVO
ATTENTION
Make sure the male and female
correct polarity before assembly.
TO RECEIVER
RECEIVER
POWER SWITCH
e
e
ACOMS AT-8
connectors have the
3
Ni-Cd BATTERY PACK
7.2-8.4V
TAMIYA 7.2V TYPE
CONNECTOR
PLEASE NOTE
ATTENT I ON
WHEN CONNECTING SERVOLEADSTO THE RECEIVER,
ALWAYS ENSURE THAT THE YELLOW LEAD/WtRE IS
FACING INWARDS (TOWARDS T HE CRYSTAL).
THIS IS NECESSARY F OR CH.1, CH.2, u
RED
BLACK h- SERVO LEAD/WIRE
YELLow
RECEi VER
SOCKETTYPE
MOTOR
3 & CH.4.
SERVO
