MONITOR ARM ASSEMBLY
01

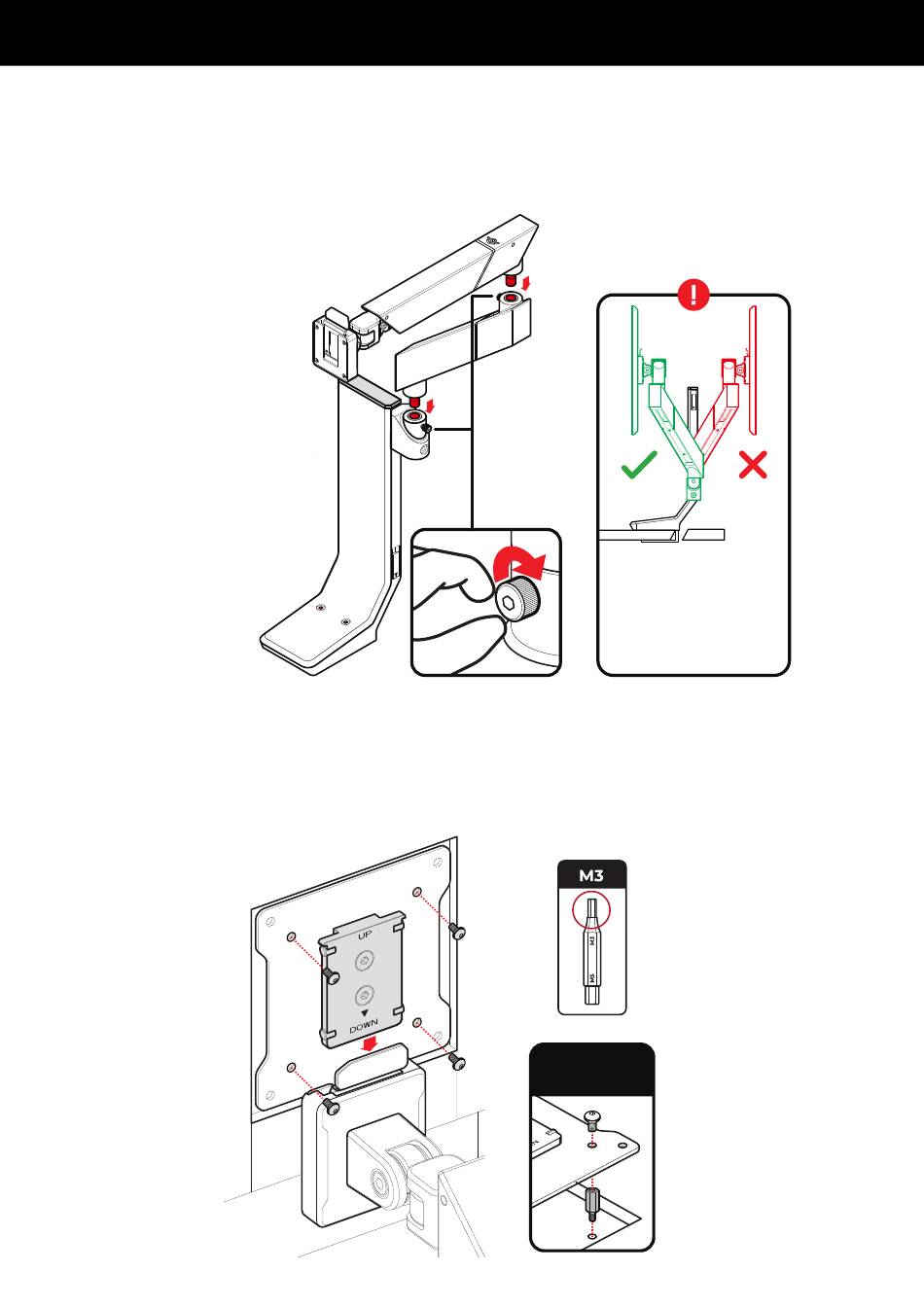

We recommend to install your upper monitor first. Insert the bottom arm into the connector and
the upper arm into the bottom arm. Secure the arms by tightening the pre-installed thumb screws.
Note: The thumb screws can be further tightened
with the screw handle provided.
02
Align the VESA plate with the mounting holes on your monitor. Secure the plate with the VESA screws
provided. Use the standoff screws to extend the VESA plate outwards when required.
Slide the VESA plate into the VESA mount on the upper arm. You should feel a click when the
plate is fully locked in place.
Secretlab MAGNUS Vertical Monitor Stand
Always use your monitor
arm in the direction of your
desktop. Do not use it away
from your desktop to avoid
damage to your monitor
and table.
Standoff
Screw Usage
