EcoDim ECO-DIM.07 Matter Handbuch Seite 4

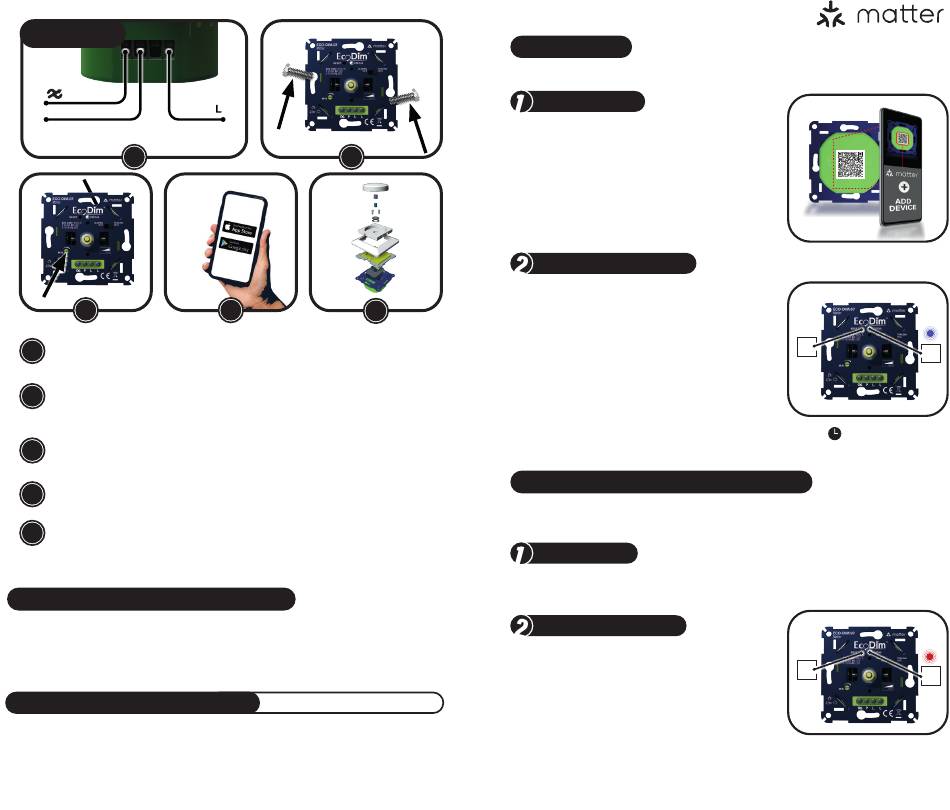

Installation
P
1
3
Step 1
1
Always ensure that the electricity is switched off during installation. Then connect the
power wires as shown in the 'Wiring diagram' .
Step 2
2
Now install the dimmer in the flush-mounting box using the screws.
Step 3
Switch the electricity back on. Determine the dimming technology using the slider on the
3
dimmer as shown under 'Setting trailing edge or leading edge' . Turn on the connected
lamps using the dimmer shaft. Now set MIN as indicated under 'Setting min. light level'.
4
Step 4
Now link the dimmer to your SMART home system.
5
Step 5
Replace the cover frame, central plate and dimmer button on the dimmer.
Setting trailing edge or leading edge
These dimmers feature two dimming techniques: phase cut (Leading, RL) and phase cut (Trailing,
RC). This can be set with the slide switch on the dimmer. Most dimmable LED lamps work best on
Trailing (RC), phase cut. If it is not shown on the lamps, you can try both programmes and choose the
technique that works best.
Suitable cover plate brands
• Berker by Hager
• Busch-Jaeger
• GIRA
• JUNG
2
4 5
*NIKO plate is not included. Available separately on
the EcoDim website via ED-10072
• Kopp
• Merten by Schneider
• Niko*
• PEHA
ECO-DIM.07 MATTER
OPERATION
There are two ways to include the device in your Matter controller with Open thread border router:
Scan the QR code
There is a QR code on each product. You can directly use
your Matter controller with the open Thread Border Router
app to scan the QR, and the device is automatically connec-
ted to your app. That is, scan the QR code with the "Google
Home" app on your smartphone, and the device is automati-
cally added to your app.
(Make sure you have a Matter controller, such as an Apple
HomePod built into Thread Border Routers).
Add device via reset button
Some Matter controllers can use the open Thread border
router's App to select "Add device" . To do so, follow the
following actions:→
1. Press the reset button of the dimmer 2x to put it in pairing
mode (the blue indicator light flashes). The dimmer remains
in pairing mode for 15 minutes.
2. The blue indicator light stops flashing and stays on for 10
seconds once pairing is successful. After this, the dimmer
appears in the menu of the selected controller and can be
operated.
Remove from APP and Factory reset
Matter over thread device supports multi fabric feature which means one device can connect to
multiple open thread border routers.To remove your device from the network, you need to perform
several actions:
Delete from app
To remove the device only for an individual controller, you can remove the device from the individual
App while your device remains in your other App if you are connected to multiple Apps.
Reset to factory settings
CAUTION: you will remove the dimmer from all controllers by
doing this! Follow the instructions below to reset the dimmer
to factory settings.
1. Press and hold the reset button for 5 seconds.
2. When the red indicator light is on, the dimmer has been
successfully reset and removed from all networks.
Simplified EU Declaration of Conformity:
We, EcoDim B.V., hereby declare that this product conforms to the directives applicable from the European Union.
The full text of the EU declaration of conformity can be consulted at the following internet address:
https://www.ecodim.nl/en/service/ecodim-certificering
