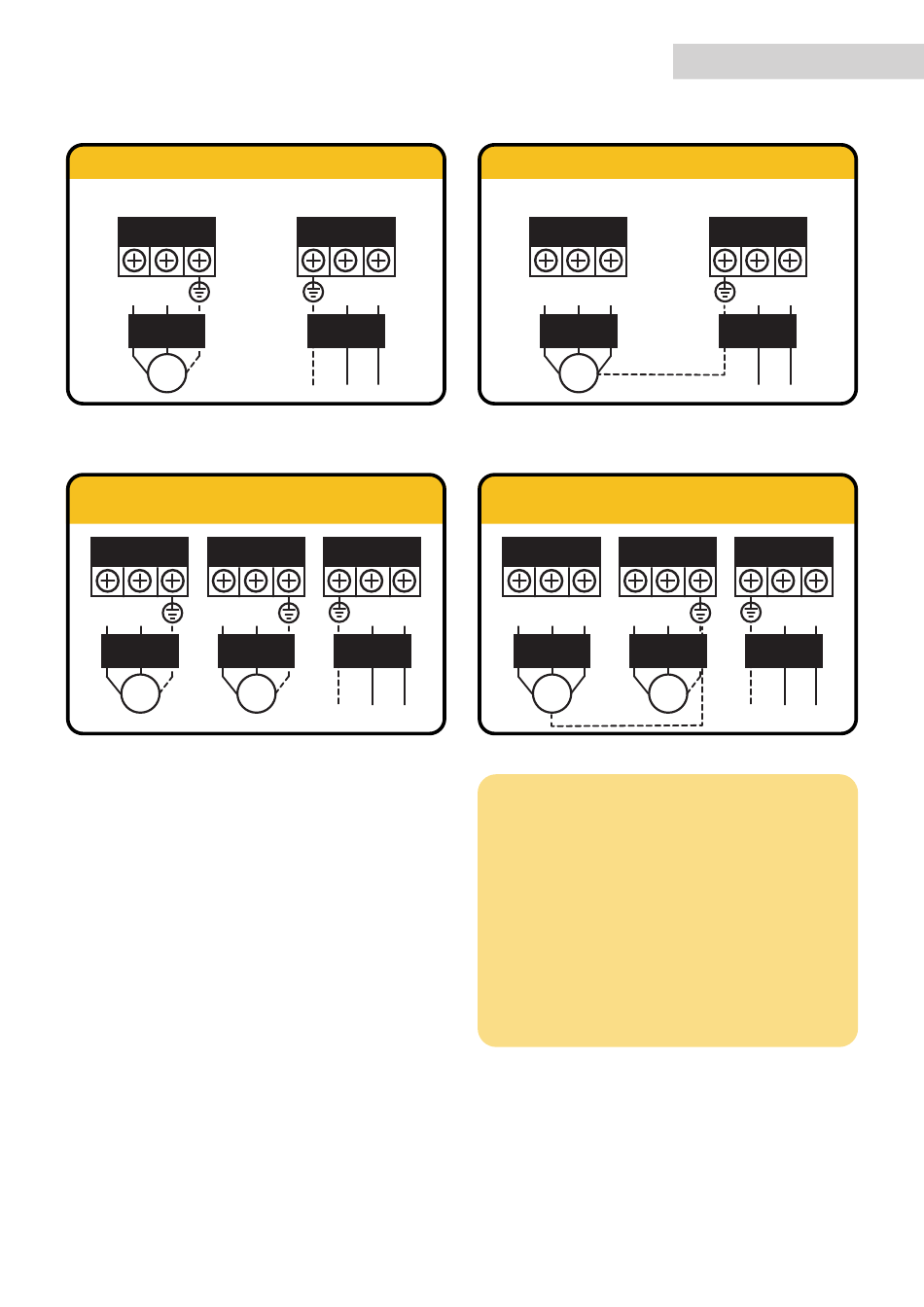

4.1 WIRING: Wiring Diagram and Instruction
Single-phase in and single-phase out
TO PUMP
U V
1~230V AC
50/60Hz
M
4.2 WIRING: IPC-3
Wiring Diagram and Instruction
Single-phase in and single-phase out
(with auxiliary pump)
TO PUMP TO PUMP
L2 N
U V
1~230V AC 1~230V AC
50/60Hz 50/60Hz
M
For REASONS OF SAFETY, there are
2 earth/ground connections, i.e. 4 cable
con-nections, for your inverter pump control.
One wire is in yellow-green colour, as
usual inter-nationally, and the other in BLACK
(which is usually assigned for the 230V
phase). The wiring diagram in our manual
and the printed terminal assignment in the
control clearly shows that the black cable
core is connected to ground and must
therefore also be con-nected in the pump.
This applies to IPC-2, IPC-3 and „standard"
230V pumps.
TO POWER
N L1
1~230V AC
50/60Hz
TO POWER
N L1
1~230V AC
50/60Hz
M
Single-phase in and three-phase out
TO PUMP
U V W
3~230V AC
50/60Hz
M
GROUND
Single-phase in and three-phase out
(auxiliary pump)
TO PUMP TO PUMP
L2 N
U V W
3~230V AC 1~230V AC
50/60Hz 50/60Hz
M M
GROUND
1. Don't connect the AC main circuit power
supply and output terminals U, V, W.
2. Wiring after the power cut off.
3. To verify the inverter rated voltage and the
input supply voltage are consistent
4. The inverter can't be done the dielectric
voltage withstand Test.
5. Terminal screw tightening torque 1.7N.m.
6. Make sure the ground terminal is connected
before wiring the main circuit terminals.
7. Connect the input power after installing the
panel,when the power is connected, don't
remove the panel
English 5
