4 English

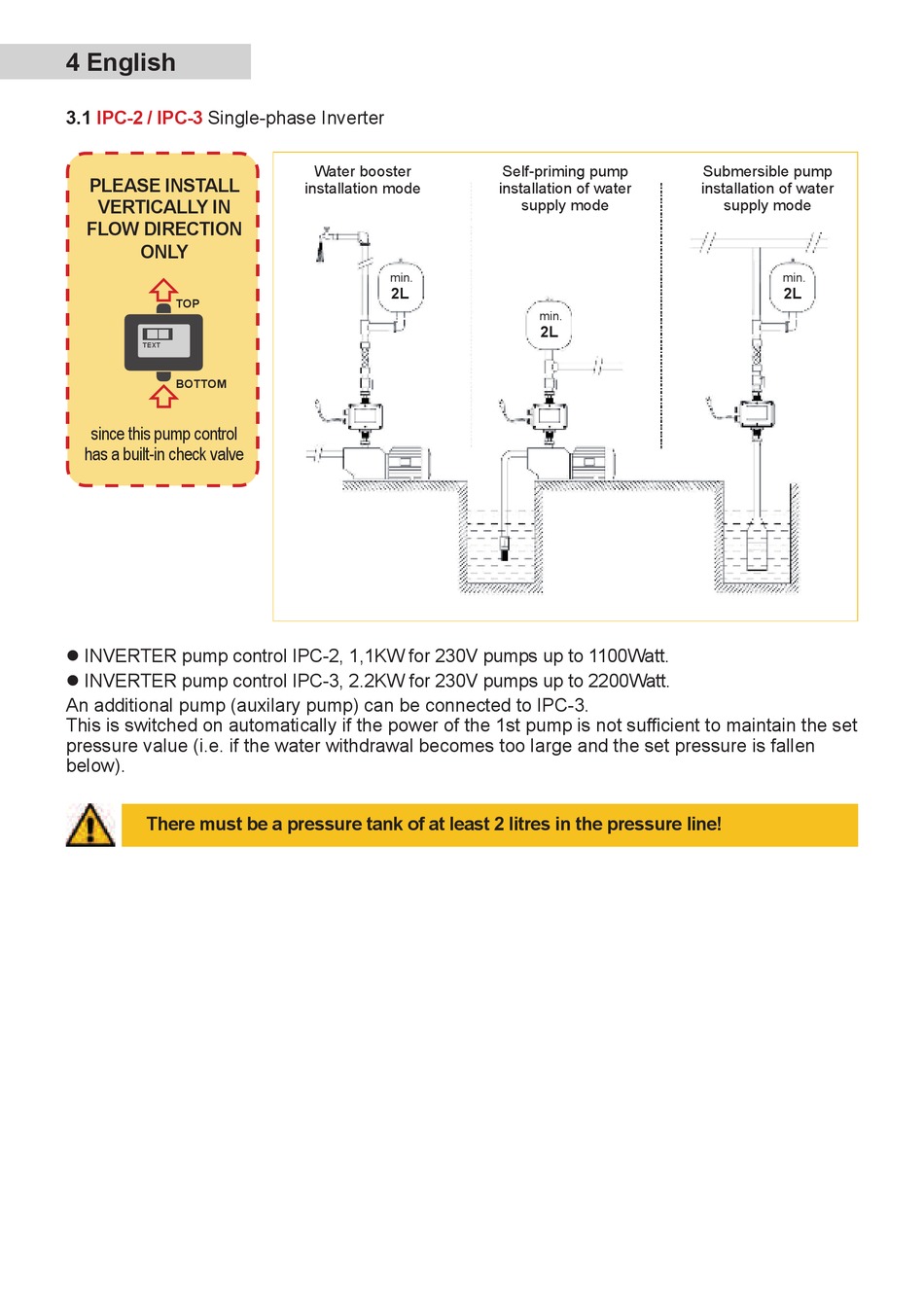

3.1 IPC-2 / IPC-3
Single-phase Inverter
PLEASE INSTALL
VERTICALLY IN
FLOW DIRECTION
ONLY
TOP
TEXT
BOTTOM
since this pump control
has a built-in check valve
 INVERTER pump control IPC-2, 1,1KW for 230V pumps up to 1100Watt.
 INVERTER pump control IPC-3, 2.2KW for 230V pumps up to 2200Watt.
An additional pump (auxilary pump) can be connected to IPC-3.
This is switched on automatically if the power of the 1st pump is not sufficient to maintain the set
pressure value (i.e. if the water withdrawal becomes too large and the set pressure is fallen
below).
There must be a pressure tank of at least 2 litres in the pressure line!
Water booster
installation mode
min.
2L
Self-priming pump
installation of water
supply mode
min.
2L
Submersible pump
installation of water
supply mode
min.
2L
