Gutta BS Plus 160 Montageanleitung Seite 5

Rechteckvordach mit seitenteil
Vorschau ausblenden Andere Handbücher für BS Plus 160:

Werbung

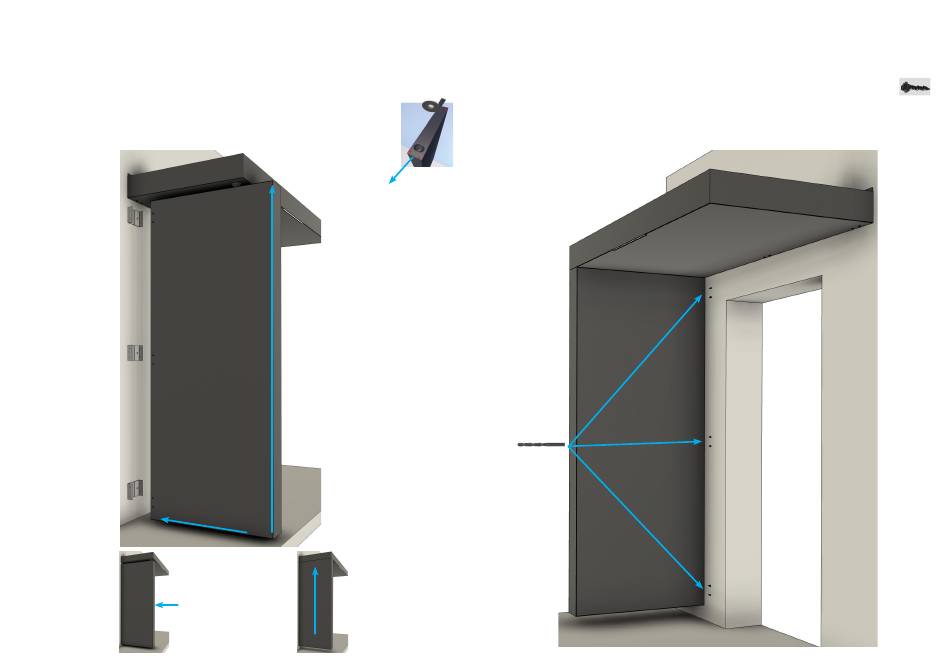

Montage Seitenteil
|
Assembly of side part
Montage de la partie latérale
|
Montage zijpaneel
2.
Zusammenfügen
|
Assembly
|
Affilier
|
Aaneenvoegen
1. Setzen Sie das Seitenteil auf die Wandhalter.
Place the side panel on the wall brackets.
Placez la partie latérale sur les supports muraux.
Plaats het zijpaneel op de muurbeugels.
1.
8
2. Heben Sie das Seitenteil an das Vordach.
Lift the side panel onto the canopy.
Soulevez la partie latérale contre l'avant-toit.
Til het zijpaneel op de luifel.
2.
1.
2.
3.
Befestigung
|
Fasting
1. Bohren Sie die Löcher mit einen Bohrer 3,5 mm vor.
Prépercez les trous avec une mèche de 3,5 mm.
2. Setzen Sie die Schrauben wie angezeigt.
Insérez les vis comme indiqué.
!
OBEN | Top
Montage Seitenteil
Montage de la partie latérale
|
Fixation
|
Bevestiging
|
Pre-drill the holes with a 3.5 mm drill bit.
|
Boor de gaten met een 3,5 mm boor.
|
Insert the screws as indicated.
|
Plaats de schroeven zoals aangegeven.
|
Assembly of side part
|
Montage zijpaneel
6x
9
