2nd plus socket Standard
4
5
14
4
Place label (+)

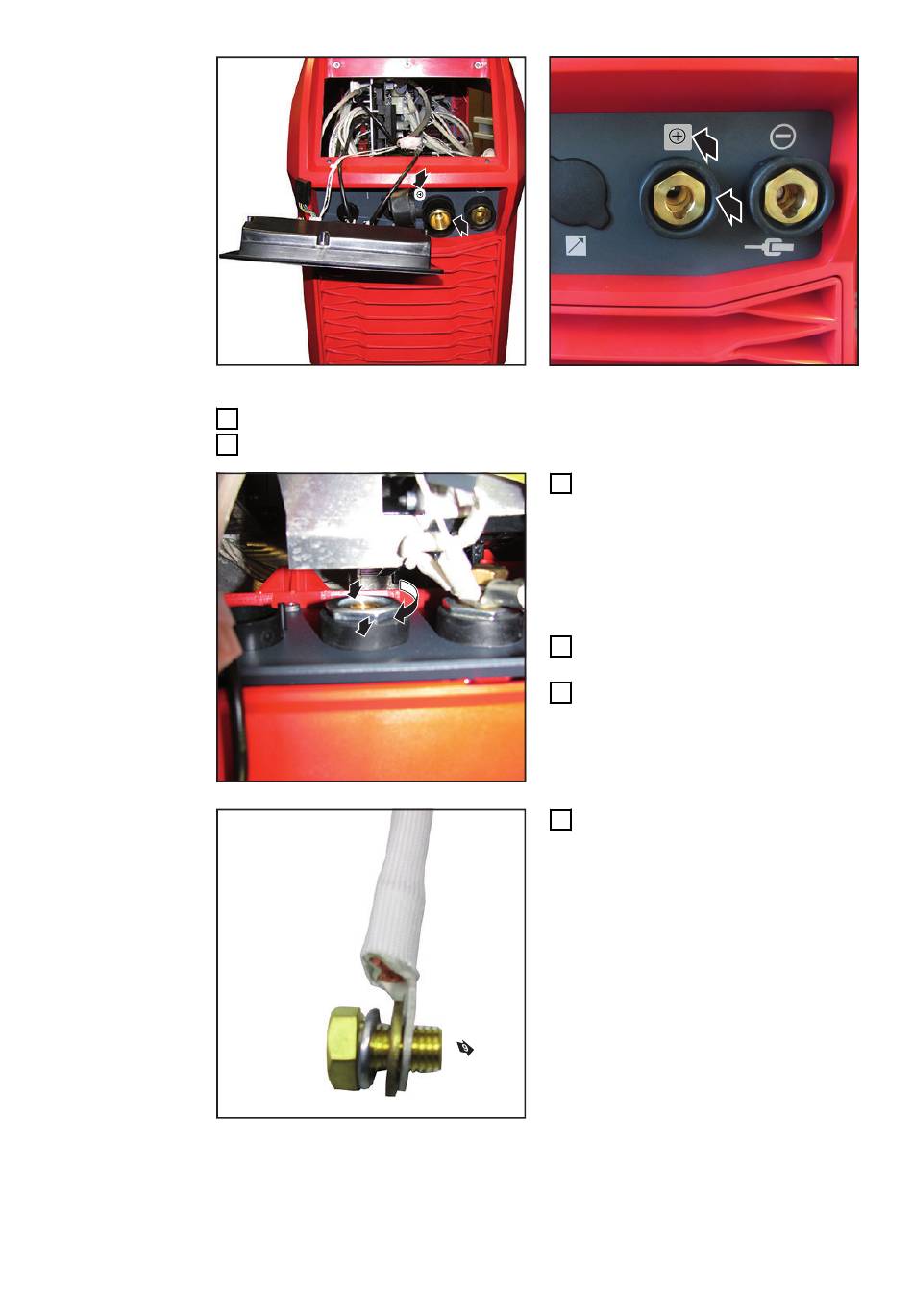

Insert the current socket and cover into the opening on the power source
7
8
6
5
2nd plus socket Dinse
Place the insulating washer onto
6
the current socket on the inside of
the power source
The current socket guides must be
in the recesses of the insulating
washer.
Place the hexagonal nut onto the
7
current socket
Tighten the hexagonal nut
8
Size 32 mm
Tightening torque = 35 Nm
Connect the cable to the new cur-
9
rent socket using the washer,
spring washer and hexagon bolt
Size 19 mm
Tightening torque = 15 - 35 Nm
The connected cable must point
upwards.
