1. Scope of delivery
Electronic Safety Transformer - Input: 110 – 240 V / 50/60 Hz, Output: 24 V DC
•
Wireless control for EcoDrift current pumps of the x.1 series:
•
- Two separately or parallel controllable channels for connecting any number of current pumps of
the series EcoDrift x.1.
- The Timer feature allows mutual alternating control of the channels in the interval of 1 - 60
minutes.
- Each channel can be individually adjusted for wave simulation, pulse rate and flow intensity.
- It is possible to reduce the flow at night automatically.
- Feed function for deactivating the flow for 10 minutes.
2. Operation
The EcoDrift Wireless Master Controller (Fig. 2) can only be used combined with the
EcoDrift Control 0 - 10 V (Fig. 1). In case older pumps of the x.0 series are used, the controller
has to be replaced.

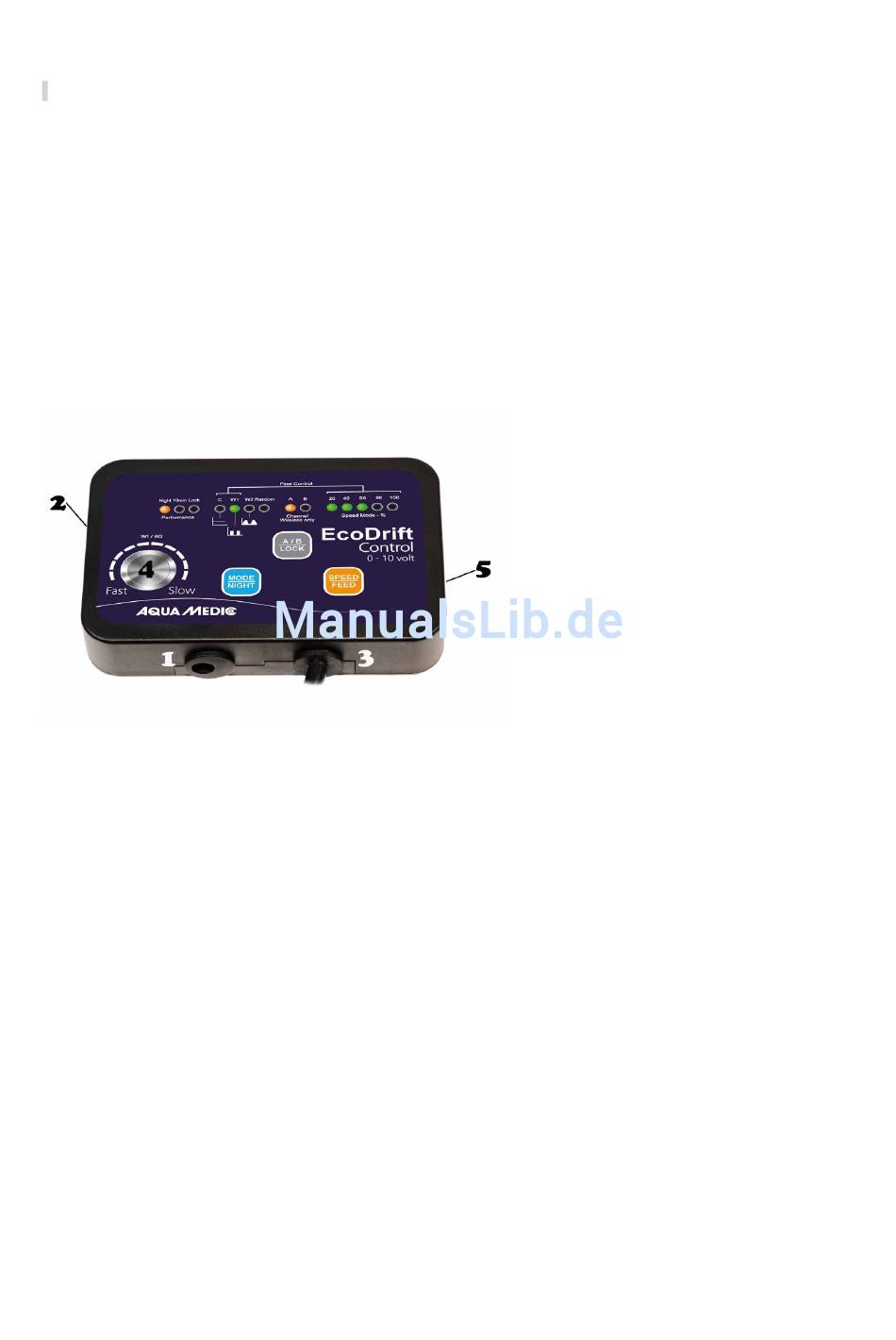

Fig. 1: EcoDrift Control 0 - 10 V
1. Power input
2. Light sensor connection (at the side)
3. Pump connection
Available spare parts: Please refer to www.aqua-medic.de.
Valid for all controllers:
Connect the Wireless Controller Master to the transformer and power supply, it must remain
permanently connected. In case of a power failure, the settings are saved. By briefly pressing the
"A/B LOCK" button, the EcoDrift Control 0 – 10 V is directed to the requested channel A (yellow LED)
or B (blue LED) for the respective EcoDrift pump. All other settings are suspended then, the pump is
only controlled by the EcoDrift Wireless Master Controller.
Programs of the EcoDrift Wireless Master Controller:
20 - 100: Speed Mode: Flow of 20, 40, 60, 80 or 100% power. Only in conjunction with W1
and C.
MODE/NIGHT: By briefly pressing, the requested pump mode at each active channel is selected.
By pressing a bit longer, the night mode is reached (LED "Night" is lit).
C: Constant flow.
W1: Frequency and speed can be adjusted. By using the SPEED button, the power can
be varied in steps of 20% between 20 and 100%. By turning the control dial Fig. 2,
No. 4) the frequency can be changed.
W2: The flow is increased slowly and then decreased just as slowly again.
Random: The flow changes according to the random principle.
5
Protect it from condensate and respect a
4. Control dial
5. Connection for 0 – 10 volt
maximum of 80% air humidity.
