2. Remove the battery pack and pull the
slide switch in position lock.
3.
10. 90°-180°

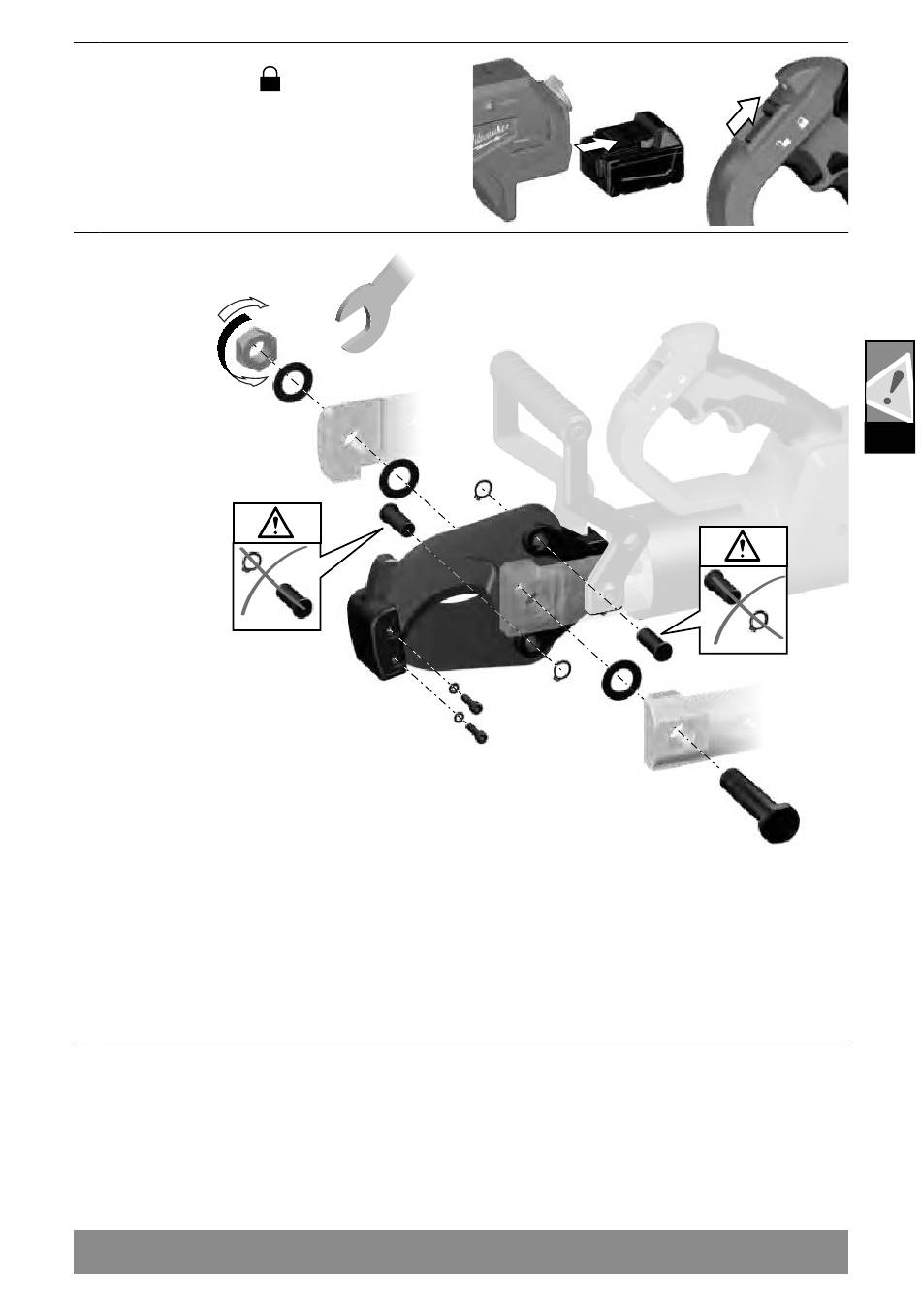

1. Use a wrench or pliers to remove the blade
nuts and remove the blade bolt.
2. Remove the retaining ring and pull out
the pin from one of the blades.
3. NOTE: Take notice of the blade orientation so the new
blades can be installed the same way. The blades should
be oriented so the flat sides contact and the bevels
face away from each other, like a pair of scissors.
4. Carefully remove the blade.
Check that the cutting tools can move freely.
To avoid injury and damage, never immerse the tool, removable
battery or charger in liquid or allow liquid to penetrate them.
The ventilation slots of the machine must be kept clear at all times.
The device contains hydraulic fluid. Hydraulic fluids pose a hazard
to groundwater. Uncontrolled draining or improper disposal is
punishable by law.
Deutsch
9. 17 Nm
5. Install the new blade in the same orientation.
6. Slide the pin through the blade and bracket.
Replace the retaining ring.
7. Repeat steps 2 to 6 for the other blade.
8. Insert the blade bolt.
9. Thread the blade nut onto the blade bolt and tighten to 17 Nm.
10. Back it off between 1/4 and 1/2 turn
The device should be serviced every six to twelve months, depen-
ding on usage.
You can find out more about service intervals via the ONE-KEY app.
Service and repair work may only be carried out by authorised
specialist workshops.
