NC Series Conventional Optical/Heat Detector
Installation Sheet
EN DA DE ES FR
IT
1
EN: Installation Sheet
Figures

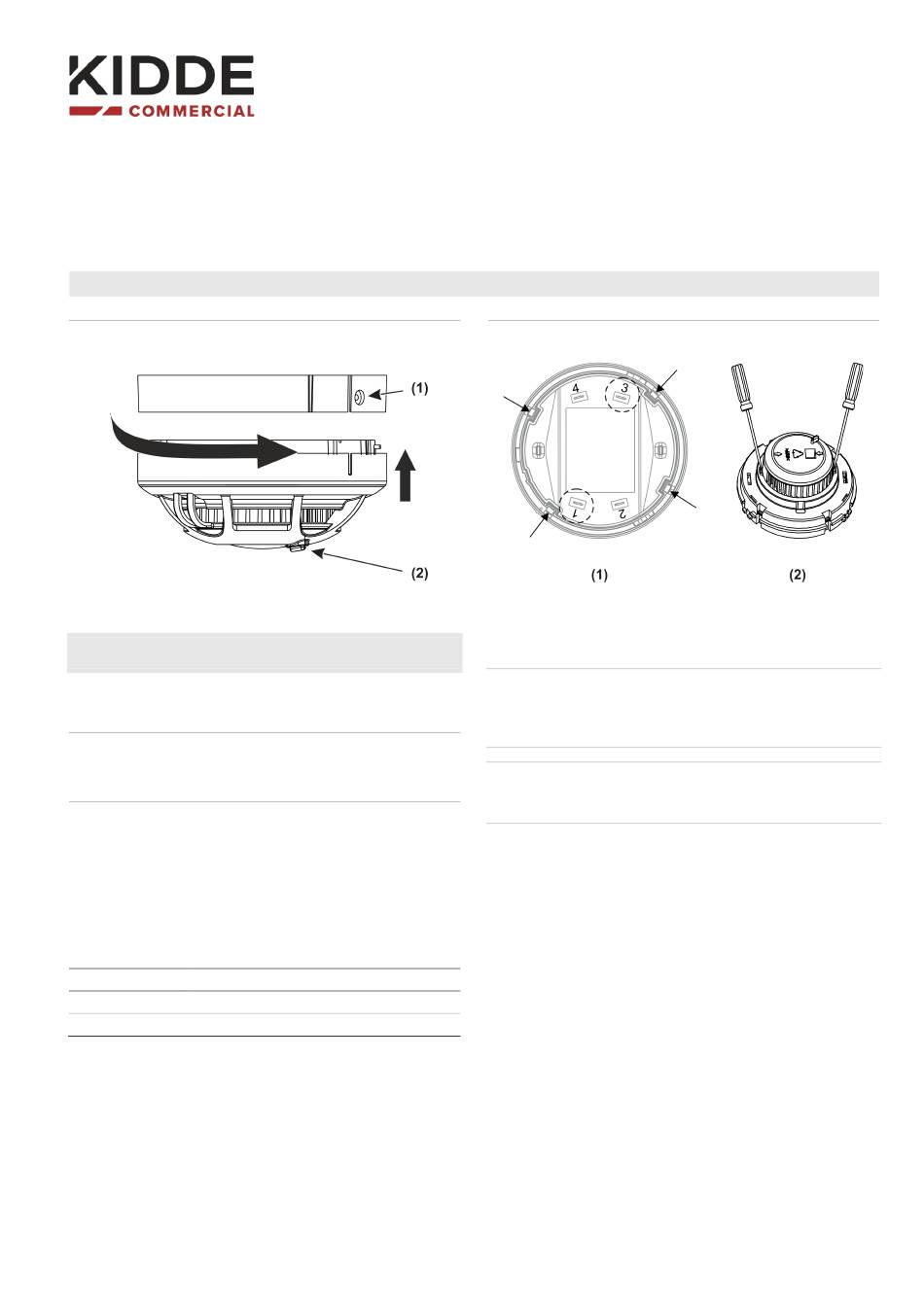

Figure 1: Inserting the detector head into the mounting base
(1) Locking mechanism
(2) Status LED and test area
Figure 2: Removing the detector cover and optical chamber
(1) Removing the detector cover
(2) Removing the optical chamber
Description
This installation sheet includes information on the NC Series
conventional optical/heat detectors shown in the table below.
Model
Description
NC-DPM-W
Conventional optical/heat detector (white)
NC-DPM-B
Conventional optical/heat detector (black)
The detector combines optical smoke detection and fixed
temperature/rate-of-rise detection technology.
All NC Series conventional detectors are compatible for use
with NC Series conventional control panels.
© 2024 Carrier. All rights reserved.
www.acornfiresecurity.com
NL NO PT SV
www.acornfiresecurity.com
2
Installation
WARNING:
Electrocution hazard. To avoid personal injury or
death from electrocution, remove all sources of power and
allow stored energy to discharge before installing or removing
equipment.
Caution:
For general guidelines on system planning, design,
installation, commissioning, use and maintenance, refer to the
EN 54-14 standard and local regulations.
Install and wire the mounting base, as described in the
installation sheet supplied with the base.
Installing the detector head
Insert the detector head into the mounting base and rotate it
clockwise until it snaps into the locked position (see Figure 1).
If required, lock the detector to the mounting base using the
screw provided with the mounting base.
1 / 25
P/N 3103029-ML • REV 001 • ISS 04JUN24

Werbung

loading

Inhaltszusammenfassung für Kidde NC Serie

  • Seite 6 www.acornfiresecurity.com Melderstatus DE: Installationsanweisungen Der Melderstatus wird durch die Status-LED (Abbildung 1) angezeigt, wie in der folgenden Tabelle dargestellt. Abbildungen Status Anzeige Abbildung 1: Einsetzen des Melderkopfs in den Montagesockel Alarm LED leuchtet durchgehend rot (1) Verschlussmechanismus In Betrieb[1] Einzelne LED blinkt rot (2) Status-LED und Testbereich Rauchkammer defekt oder Zwei LEDs blinken rot...
  • Seite 7 www.acornfiresecurity.com Im Folgenden sind die verfügbaren Meldereinstellungen Testen aufgeführt. Die Standardeinstellung ist „1“. Melder müssen nach der Installation immer zuerst getestet werden, um sicherzustellen, dass der Melder den Status an die Tabelle 1: Einstellungen für Dualmelder (optisch/Wärme) Brandmeldezentrale sendet. Einstellung[1] Beschreibung Status-LED Der Melder muss vor dem Testen mindestens 10 Sekunden...
