NC Series Standard Mounting Base
Installation Sheet
EN DA DE ES FR
IT
1
EN: Installation Sheet
Figures

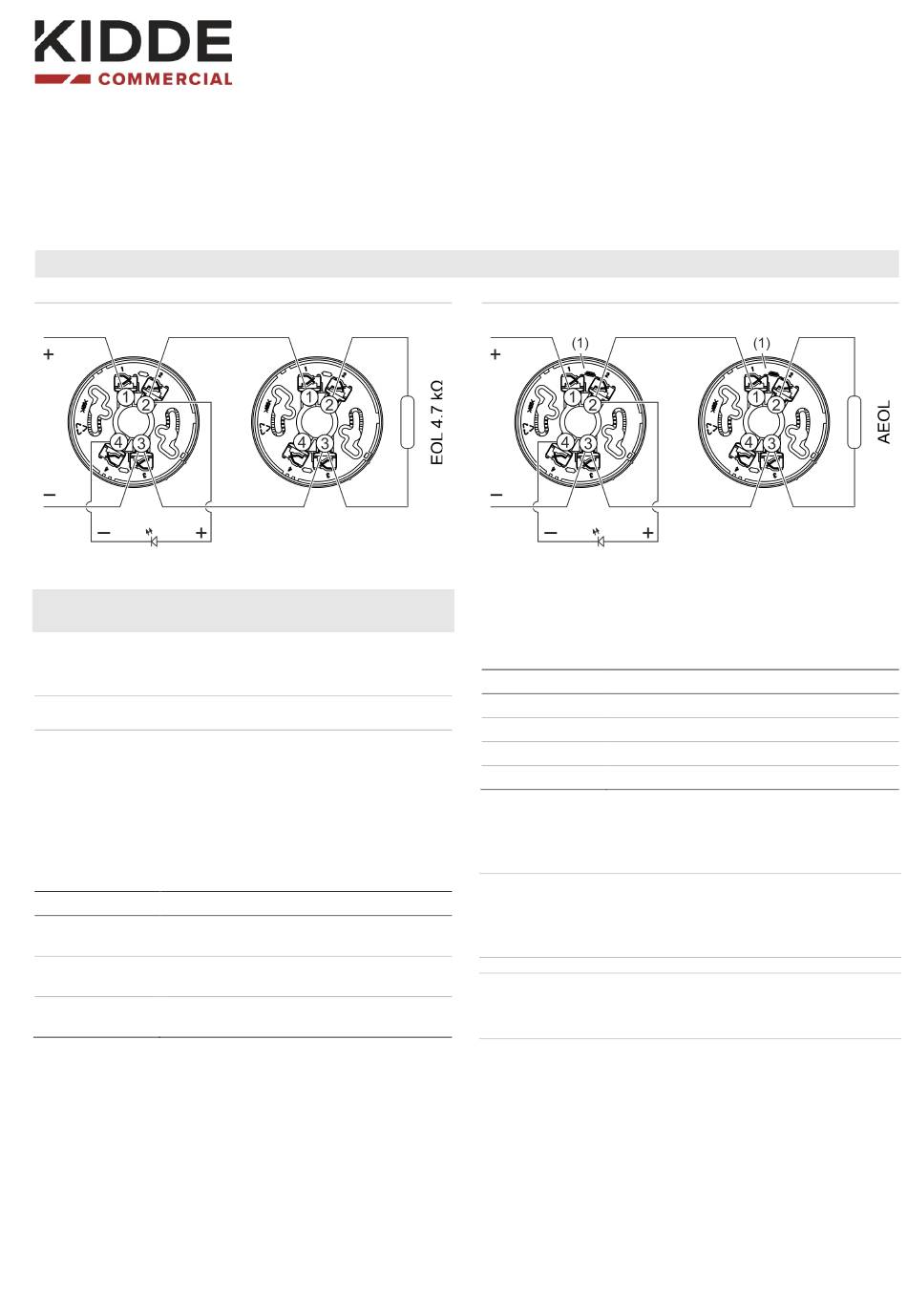

Figure 1: NC-DB wiring with end-of-line resistor
Figure 2: NC-DBD wiring with active end-of-line
(1) IN5819 Diode Between Terminals 1 And 2
Description
This installation sheet includes information on the NC Series
standard mounting bases shown in the table below.
Model
Description
Standard mounting base for NC Series
NC-DB-W
conventional detectors (white)
NC-DB-B
Standard mounting base for NC Series
conventional detectors (black)
Standard mounting base with integrated diode
NC-DBD-W [1]
for NC Series conventional detectors (white)
For installation on rough surfaces or over conduit, order the
NC-BA-SM-W Surface Mount Accessory.
