mini

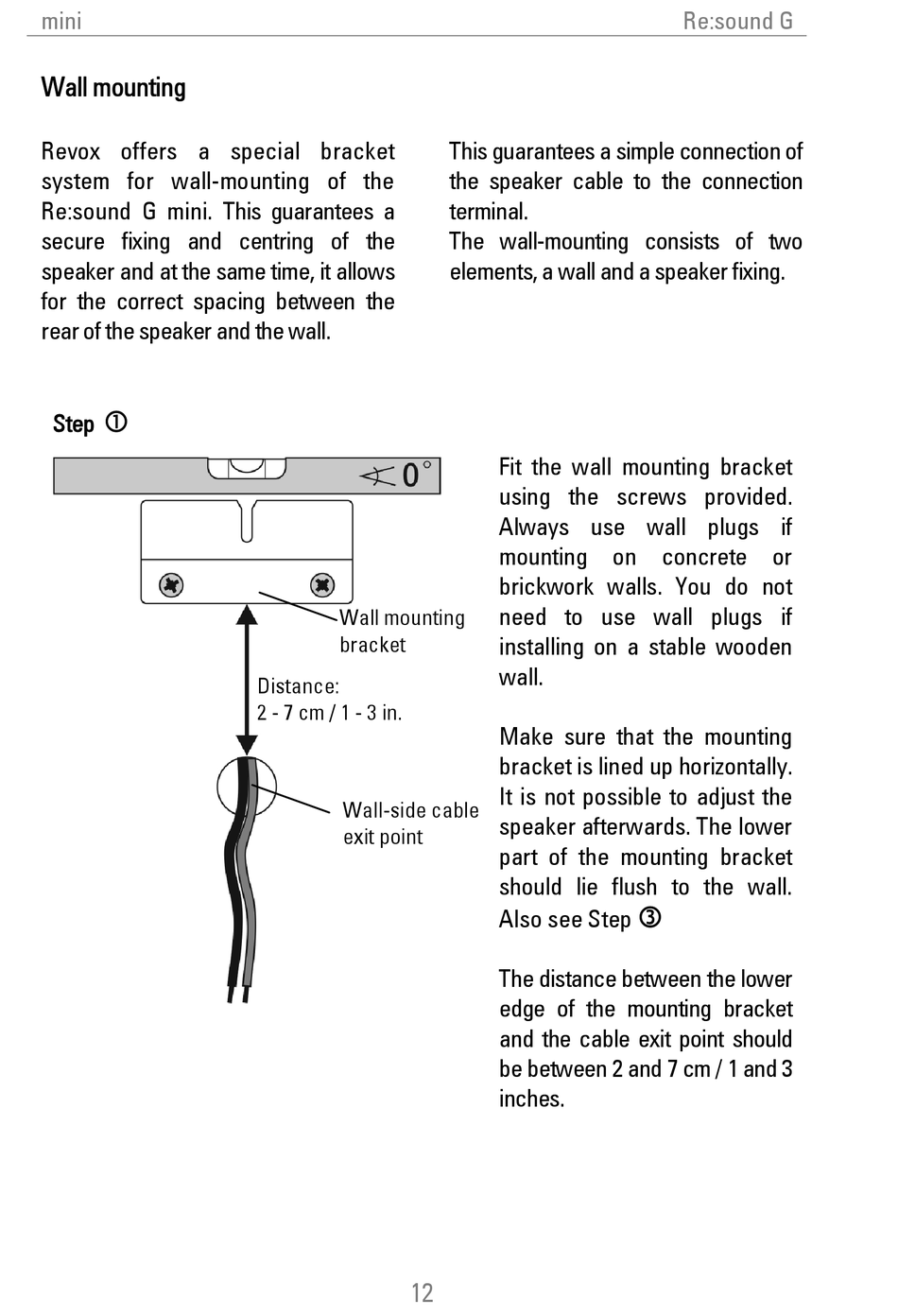

Wall mounting

Revox offers a special bracket
system for wall-mounting of the
Re:sound G mini. This guarantees a
secure fixing and centring of the
speaker and at the same time, it allows
for the correct spacing between the
rear of the speaker and the wall.

Step
Wall mounting
bracket
Distance:
2 - 7 cm / 1 - 3 in.
Wall-side cable
exit point
12
This guarantees a simple connection of
the speaker cable to the connection
terminal.
The wall-mounting consists of two
elements, a wall and a speaker fixing.
Fit the wall mounting bracket
using the screws provided.
Always use wall plugs if
mounting on concrete or
brickwork walls. You do not
need to use wall plugs if
installing on a stable wooden
wall.
Make sure that the mounting
bracket is lined up horizontally.
It is not possible to adjust the
speaker afterwards. The lower
part of the mounting bracket
should lie flush to the wall.
Also see Step
The distance between the lower
edge of the mounting bracket
and the cable exit point should
be between 2 and 7 cm / 1 and 3
inches.
