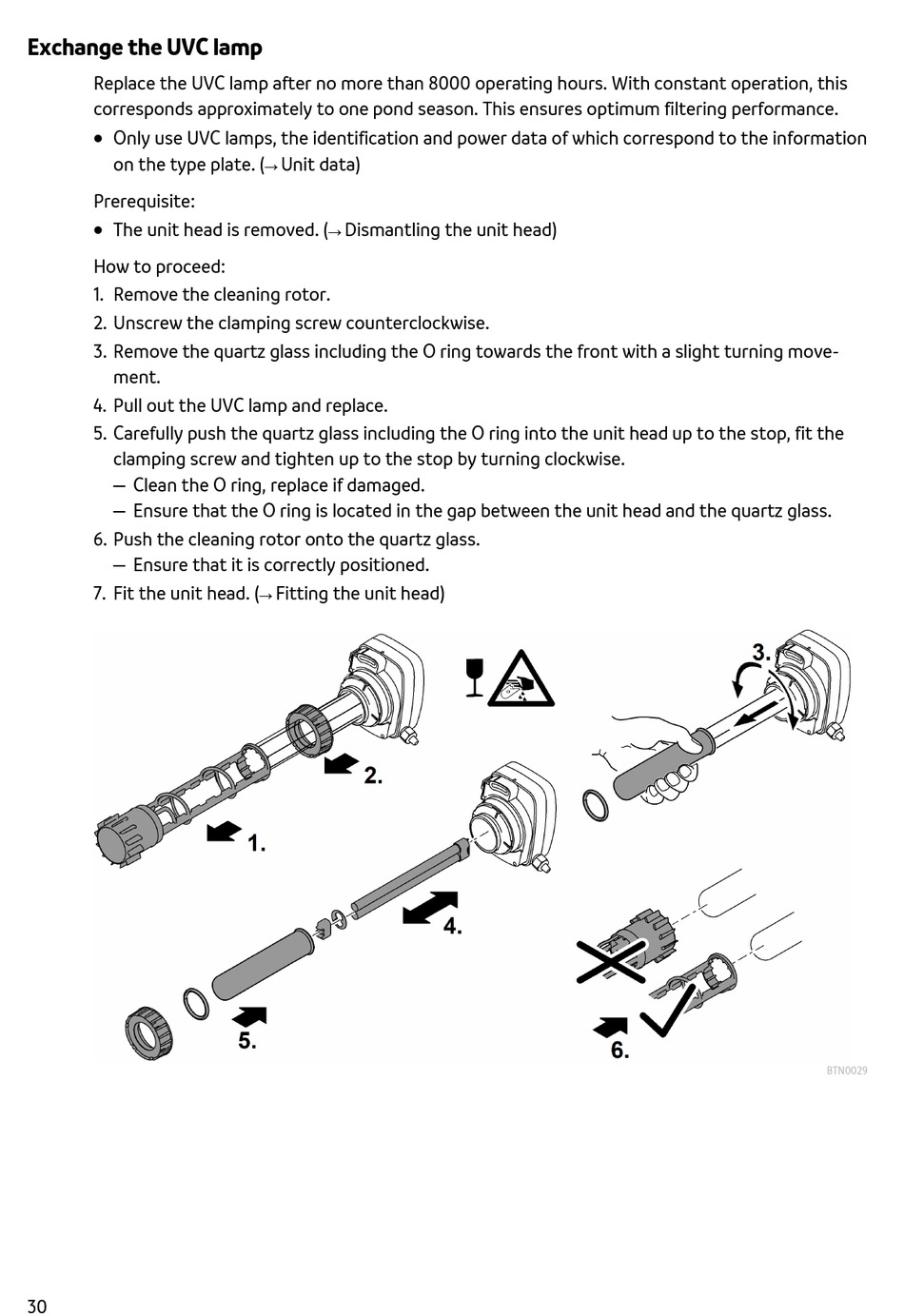

Exchange the UVC lamp
Replace the UVC lamp after no more than 8000 operating hours. With constant operation, this
corresponds approximately to one pond season. This ensures optimum filtering performance.
• Only use UVC lamps, the identification and power data of which correspond to the information
on the type plate. (→ Unit data)
Prerequisite:
• The unit head is removed. (→ Dismantling the unit head)
How to proceed:
1. Remove the cleaning rotor.
2. Unscrew the clamping screw counterclockwise.
3. Remove the quartz glass including the O ring towards the front with a slight turning move-
ment.
4. Pull out the UVC lamp and replace.
5. Carefully push the quartz glass including the O ring into the unit head up to the stop, fit the
clamping screw and tighten up to the stop by turning clockwise.
– Clean the O ring, replace if damaged.
– Ensure that the O ring is located in the gap between the unit head and the quartz glass.
6. Push the cleaning rotor onto the quartz glass.
– Ensure that it is correctly positioned.
7. Fit the unit head. (→ Fitting the unit head)
