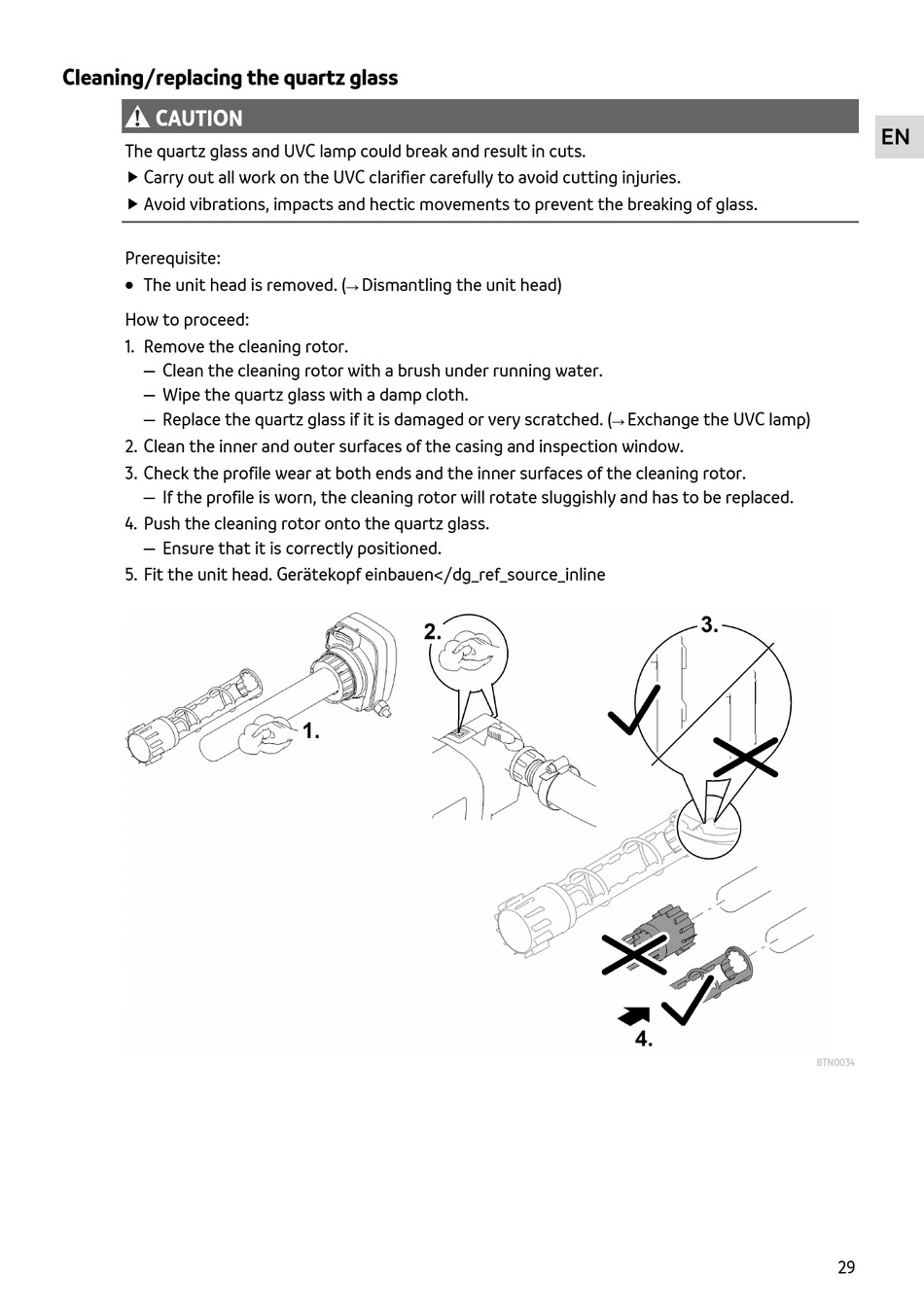

Cleaning/replacing the quartz glass
CAUTION
The quartz glass and UVC lamp could break and result in cuts.
Carry out all work on the UVC clarifier carefully to avoid cutting injuries.

 Avoid vibrations, impacts and hectic movements to prevent the breaking of glass.
Prerequisite:
• The unit head is removed. (→ Dismantling the unit head)
How to proceed:
1. Remove the cleaning rotor.
– Clean the cleaning rotor with a brush under running water.
– Wipe the quartz glass with a damp cloth.
– Replace the quartz glass if it is damaged or very scratched. (→ Exchange the UVC lamp)
2. Clean the inner and outer surfaces of the casing and inspection window.
3. Check the profile wear at both ends and the inner surfaces of the cleaning rotor.
– If the profile is worn, the cleaning rotor will rotate sluggishly and has to be replaced.
4. Push the cleaning rotor onto the quartz glass.
– Ensure that it is correctly positioned.
5. Fit the unit head. Gerätekopf einbauen</dg_ref_source_inline
