4 English

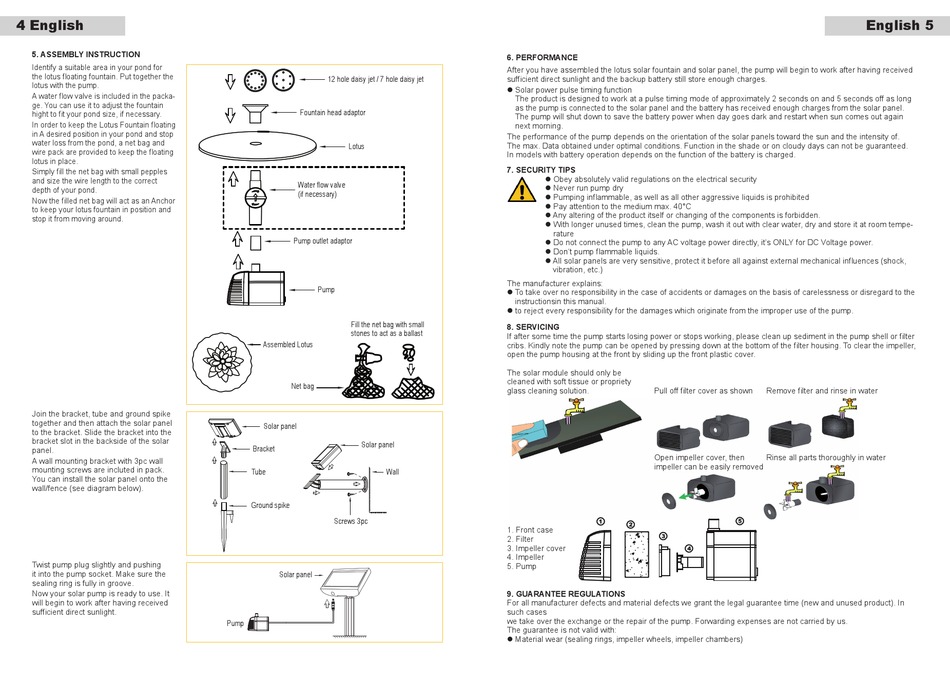

5. ASSEmBLY INSTRUCTION
Identify a suitable area in your pond for
the lotus floating fountain. Put together the
lotus with the pump.
A water flow valve is included in the packa-
ge. You can use it to adjust the fountain
hight to fit your pond size, if necessary.
In order to keep the Lotus Fountain floating
in A desired position in your pond and stop
water loss from the pond, a net bag and
wire pack are provided to keep the floating
lotus in place.
Simply fill the net bag with small pepples
and size the wire length to the correct
depth of your pond.
Now the filled net bag will act as an Anchor
to keep your lotus fountain in position and
stop it from moving around.
Join the bracket, tube and ground spike
together and then attach the solar panel
to the bracket. Slide the bracket into the
bracket slot in the backside of the solar
panel.
A wall mounting bracket with 3pc wall
mounting screws are incluted in pack.
You can install the solar panel onto the
wall/fence (see diagram below).
Twist pump plug slightly and pushing
it into the pump socket. Make sure the
sealing ring is fully in groove.
Now your solar pump is ready to use. It
will begin to work after having received
sufficient direct sunlight.
12 hole daisy jet / 7 hole daisy jet
Fountain head adaptor
Lotus
Water flow valve
(if necessary)
Pump outlet adaptor
Pump
Fill the net bag with small
stones to act as a ballast
Assembled Lotus
Net bag
Solar panel
Solar panel
Bracket
Tube Wall
Ground spike
Screws 3pc
Solar panel
Pump
6. PERFORmANCE
After you have assembled the lotus solar fountain and solar panel, the pump will begin to work after having received
sufficient direct sunlight and the backup battery still store enough charges.
l Solar power pulse timing function
The product is designed to work at a pulse timing mode of approximately 2 seconds on and 5 seconds off as long
as the pump is connected to the solar panel and the battery has received enough charges from the solar panel.
The pump will shut down to save the battery power when day goes dark and restart when sun comes out again
next morning.
The performance of the pump depends on the orientation of the solar panels toward the sun and the intensity of.
The max. Data obtained under optimal conditions. Function in the shade or on cloudy days can not be guaranteed.
In models with battery operation depends on the function of the battery is charged.
7. SECURITY TIPS
l Obey absolutely valid regulations on the electrical security
l Never run pump dry
l Pumping inflammable, as well as all other aggressive liquids is prohibited
l Pay attention to the medium max. 40°C
l Any altering of the product itself or changing of the components is forbidden.
l With longer unused times, clean the pump, wash it out with clear water, dry and store it at room tempe-
rature
l Do not connect the pump to any AC voltage power directly, it's ONLY for DC Voltage power.
l Don't pump flammable liquids.
l All solar panels are very sensitive, protect it before all against external mechanical influences (shock,
vibration, etc.)
The manufacturer explains:
l To take over no responsibility in the case of accidents or damages on the basis of carelessness or disregard to the
instructionsin this manual.
l to reject every responsibility for the damages which originate from the improper use of the pump.
8. SERVICING
If after some time the pump starts losing power or stops working, please clean up sediment in the pump shell or filter
cribs. Kindly note the pump can be opened by pressing down at the bottom of the filter housing. To clear the impeller,
open the pump housing at the front by sliding up the front plastic cover.
The solar module should only be
cleaned with soft tissue or propriety
glass cleaning solution. Pull off filter cover as shown
Open impeller cover, then
impeller can be easily removed
1. Front case
2. Filter
3. Impeller cover
4. Impeller
5. Pump
9. GUARANTEE REGULATIONS
For all manufacturer defects and material defects we grant the legal guarantee time (new and unused product). In
such cases
we take over the exchange or the repair of the pump. Forwarding expenses are not carried by us.
The guarantee is not valid with:
l Material wear (sealing rings, impeller wheels, impeller chambers)
English 5
Remove filter and rinse in water
Rinse all parts thoroughly in water
