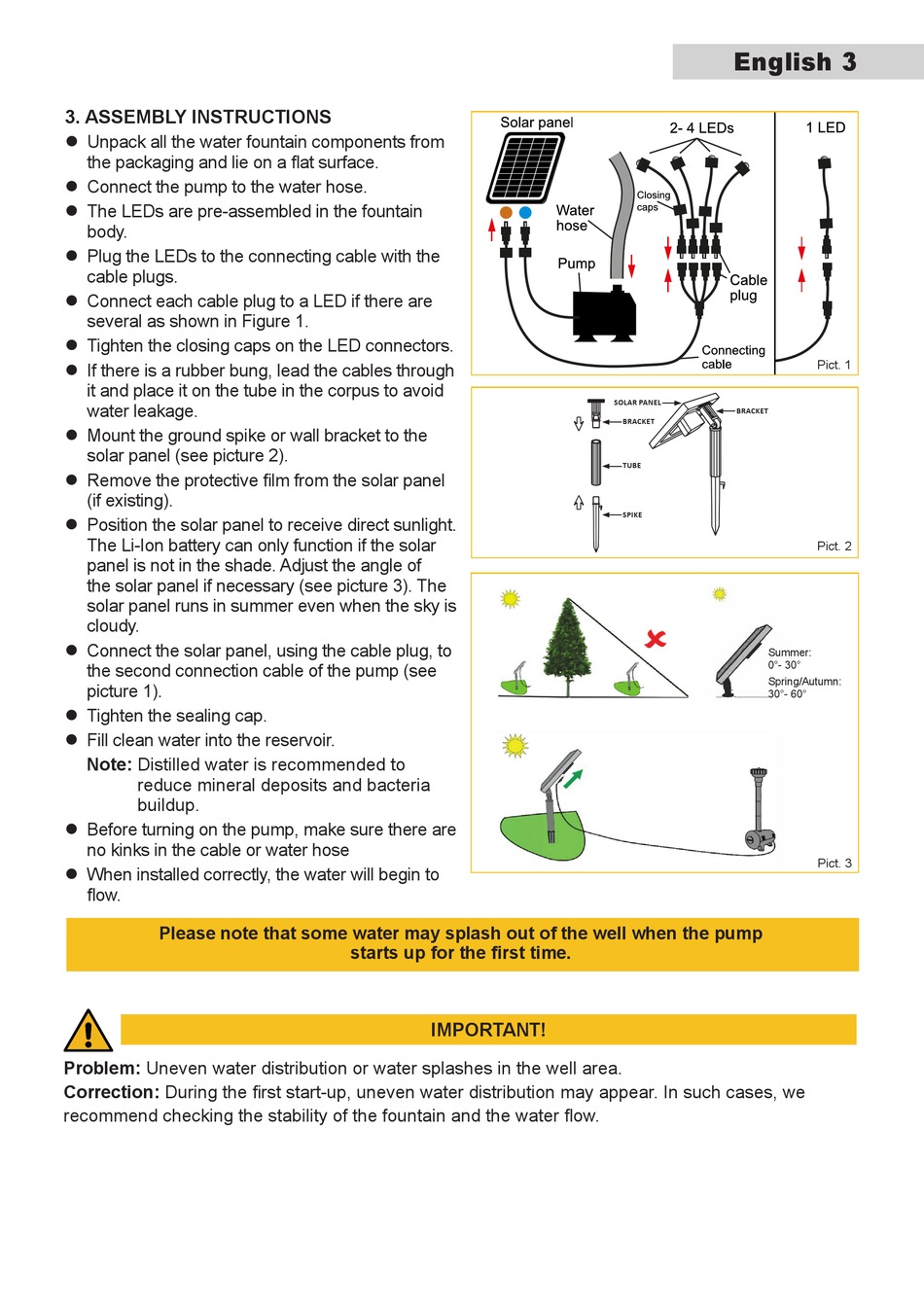

3. ASSEMBLY INSTRUCTIONS
z Unpack all the water fountain components from
the packaging and lie on a flat surface.
z Connect the pump to the water hose.
z The LEDs are pre-assembled in the fountain
body.
z Plug the LEDs to the connecting cable with the
cable plugs.
z Connect each cable plug to a LED if there are
several as shown in Figure 1.
z Tighten the closing caps on the LED connectors.
z If there is a rubber bung, lead the cables through
it and place it on the tube in the corpus to avoid
water leakage.
z Mount the ground spike or wall bracket to the
solar panel (see picture 2).
z Remove the protective film from the solar panel
(if existing).
z Position the solar panel to receive direct sunlight.
The Li-Ion battery can only function if the solar
panel is not in the shade. Adjust the angle of
the solar panel if necessary (see picture 3). The
solar panel runs in summer even when the sky is
cloudy.
z Connect the solar panel, using the cable plug, to
the second connection cable of the pump (see
picture 1).
z Tighten the sealing cap.
z Fill clean water into the reservoir.
Note: Distilled water is recommended to
reduce mineral deposits and bacteria
buildup.
z Before turning on the pump, make sure there are
no kinks in the cable or water hose
z When installed correctly, the water will begin to
flow.
Please note that some water may splash out of the well when the pump
Problem: Uneven water distribution or water splashes in the well area.
Correction: During the first start-up, uneven water distribution may appear. In such cases, we
recommend checking the stability of the fountain and the water flow.
starts up for the first time.
IMPORTANT!
English 3
SOLAR PANEL
BRACKET
BRACKET
TUBE
SPIKE
Summer:
0°- 30°
Spring/Autumn:
30°- 60°
Pict. 1
Pict. 2
Pict. 3
