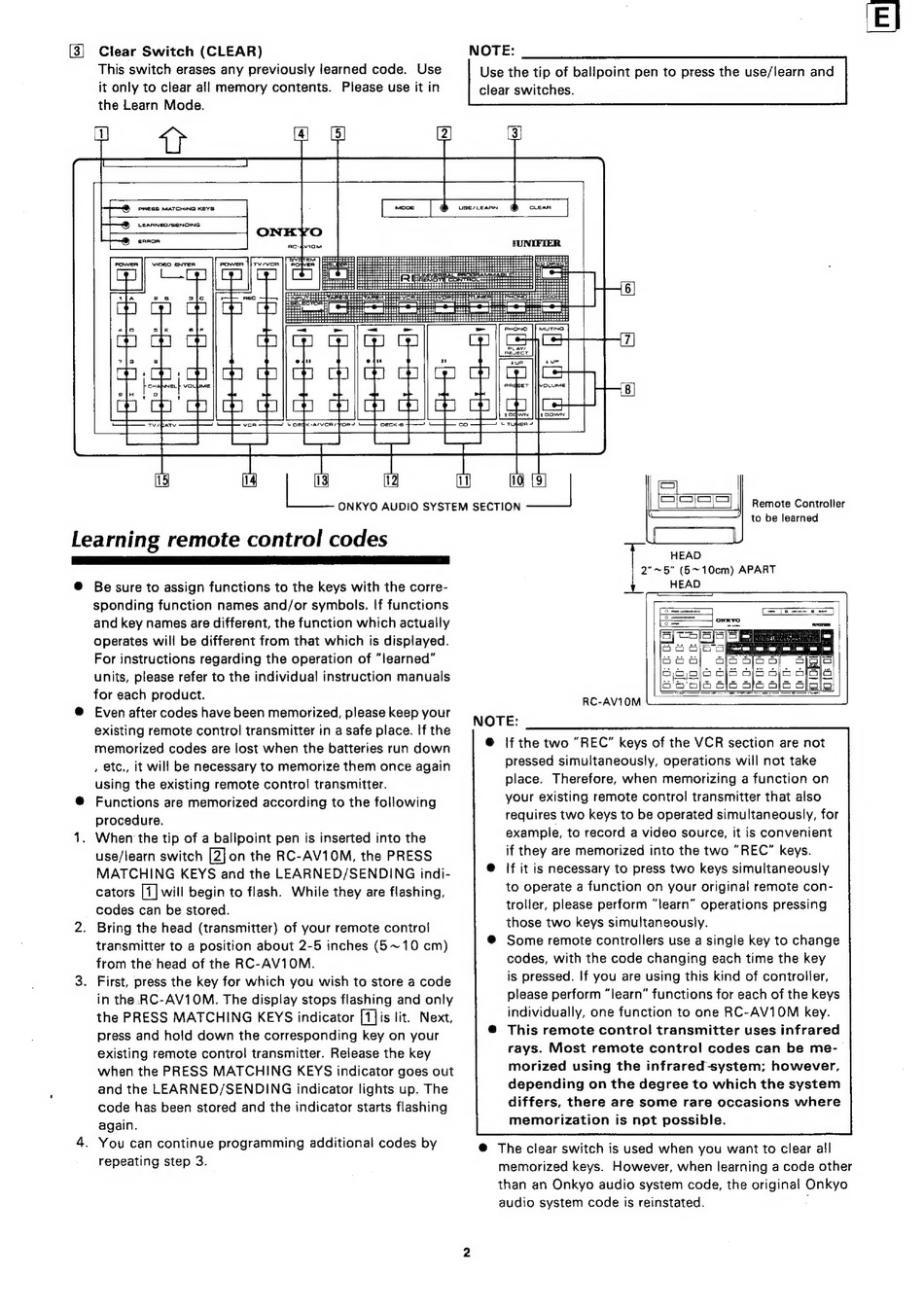

[3] Clear Switch (CLEAR) NOTE:
This switch erases any previously learned code. Use
it only to clear all memory contents. Please use it in clear switches.
the Learn Mode.
H <} 4 5 2 3
Use the tip of ballpoint pen to press the use/learn and
PRESS MATCHING KEYS MODE USE/LEARN clear
LEARNEDO/SENDING
ERROR
Rc-Aviom FUNIFIER
Syqrem
Power || vioeo ENTER Powen |i tv/ver || Peover | Hei 'COmeC.
RI Rec Tie
aja ee alec REC INPUT: TAPE-S tH TAPE VER VOR: ARH PRONG ce
SELECTOR:
alo sle 6 jr ~ = — = = prone |f muTinG
Baye
REDECT
7|s a equ edu " tUP sur
a a
fonafevert ver fnne endser |[hocume 8
efx °
' '
rodqwn ||}ro0wn
TVEaTy vcr Coedgx-arvorsfors OEcK-s co . TUNER
1 1 | 1 1 1 1 9 S
ONKYO AUDIO SYSTEM SECTION FISIE|E] || remote Controller
to be learned
Learning remote control codes
HEAD
2"~5" (5~10cem) APART
® Be sure to assign functions to the keys with the corre- HEAD
sponding function names and/or symbols. If functions
and key names are different, the function which actually
operates will be different from that which is displayed.
For instructions regarding the operation of "learned"
units, please refer to the individual instruction manuals
for each product.
@ Even after codes have been memorized, please keep your
existing remote control transmitter in a safe place. If the
RC-AV10M
NOTE:
memorized codes are lost when the batteries run down © If the two "REC" keys of the VCR section are not
, @tc., it will be necessary to memorize them once again pressed simultaneously, operations will not take
using the existing remote control transmitter. place. Therefore, when memonenye function on
@ Functions are memorized according to the following your existing remote control transmitter that also
procedure. requires two keys to be operated simultaneously, for
1. When the tip of a ballpoint pen is inserted into the example, to record a video source, it is convenient
use/learn switch [2] on the RC-AV10M, the PRESS if they are memorized into the two "REC" keys.
MATCHING KEYS and the LEARNED/SENDING indi- If it is necessary to press two keys simultaneously
cators [1] will begin to flash. While they are flashing, to operate a function on your original remote con-
codes can be stored. trolier, please perform "learn" operations pressing
2. Bring the head (transmitter) of your remote contro! those two keys simultaneously. —
transmitter to a position about 2-5 inches (5~10 cm) Some remote controllers use a single key to change
from the head of the RC-AV10M. codes, with the code changing each time the key
3. First, press the key for which you wish to store a code is pressed. If pacer lied pete this kind of controller,
in the .RC-AV10M. The display stops flashing and only please perform "learn" functions for each of the keys
the PRESS MATCHING KEYS indicator [Tis lit. Next, individually, one function to one RC-AV10M key.
press and hold down the corresponding key on your This remote control transmitter uses infrared
existing remote control transmitter. Release the key rays. Most remote control codes can be me-
when the PRESS MATCHING KEYS indicator goes out morized using the infrared-system; however,
and the LEARNED/SENDING indicator lights up. The depending on the degree to which the system
code has been stored and the indicator starts flashing differs, there are some rare occasions where
again. memorization is not possible.
4. You can continue programming additional codes by
repeating step 3.
@ The clear switch is used when you want to clear all
memorized keys. However, when learning a code other
than an Onkyo audio system code, the origina! Onkyo
audio system code is reinstated. :
