PANARAY SYSTEM DIGITAL CONTROLLER SETUPS

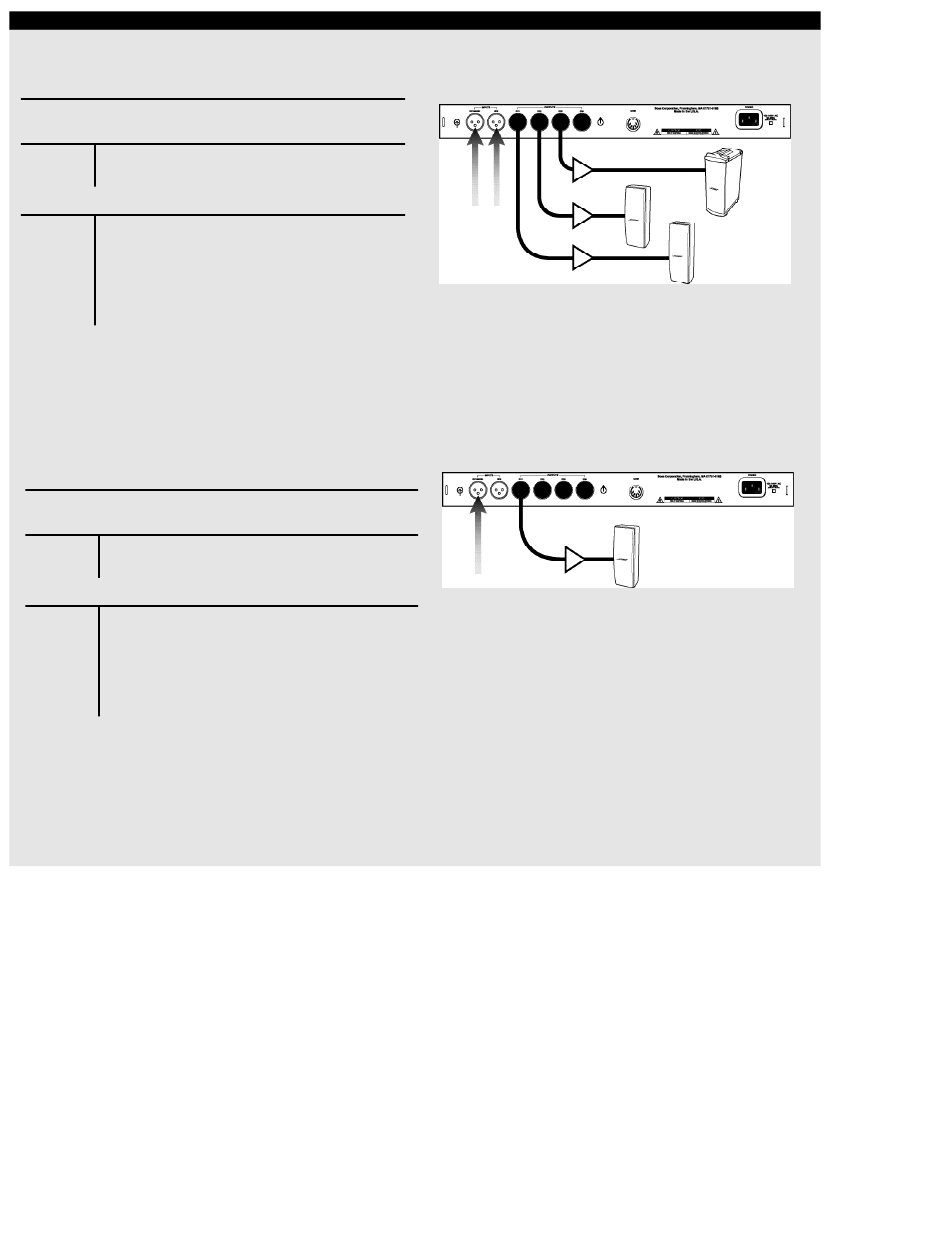

Example 3: Stereo Mid High with Mono Bass
Preset
402 ® -II Speaker Stereo with MB4 Speaker Mono
Controller Inputs
Ch 1/Mono Left from mixer
Ch 2 Right from mixer
Controller Default Output Routing
Ch 1 Ch 2
Routing 402-II speaker 402-II speaker
Left Right
(High freq) (High freq)
Limiter Off Off
Delay Off Off
Mono Preset Bank:
Example 1: Mono Full Range
Preset
402-II Speaker Mono Full Range
Controller Inputs
Ch 1/Mono Mono from mixer
Ch 2 No input
Controller Default Output Routing
Ch 1 Ch 2
Routing 402-II speaker 402-II speaker
Mono Mono
(Full range) (Full range)
Limiter Off Off
Delay Off Off
Ch3 Ch4
MB4 speaker MB4 speaker
Mono Mono
(Low freq) (Low freq)
Off Off
Off Off
Presets designed for Mono Operation.
Ch3 Ch4
402-II speaker 402-II speaker
Mono Mono
(Full range) (Full range)
Off Off
Off Off
From mixer
Left Right
Mono from
mixer
MB4 speaker
Mono
(Low freq)
402-II speaker
Right
(High freq)
402-II speaker
Left
(High freq)
402-II speaker
Mono
(Full range)
