STANDBY button:
Standby on/off
Input Meters:
The peak meter shows the input
level of left and right channels.
The meter range is:
O (Overload), 0, -6, -12, -24,
-40dB
Overload LEDs:
The Overload LEDs indicate one
of two situations.
• The input level is clipping
• There is an internal DSP over-
flow
The Overload LED is lit when one
sample is @ 0 dBFS.
DISPLAY:
The 2 x 16 LCD displays Preset
names, parameter names, and
values depending on the mode of
operation.
Up Arrow Button:
Press to navigate up through the
user interface.
Down Arrow Button:
Press to navigate down through
the user interface.

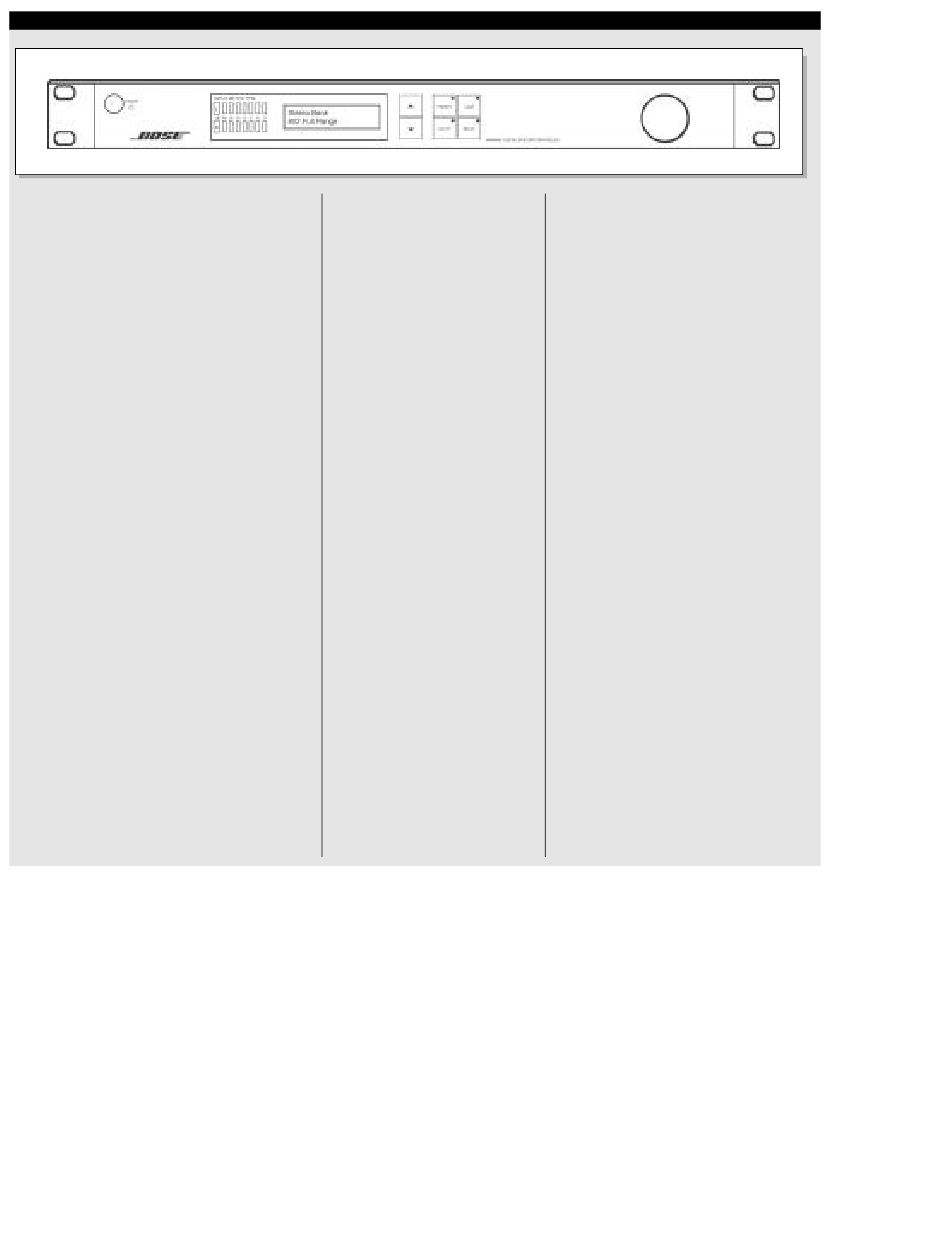

FRONT PANEL
PRESET Button:
Press to enter Preset mode
which provides access to all
Bose ® speaker EQ Presets.
LIMITER Button:
Press to access output limiter
parameters.
UTILITY Button:
Press to access ROUTING,
LEVEL and general SYSTEM
parameters.
DELAY Button:
Press to access output delay
parameters.
Encoder Wheel:
Selects Presets and changes
parameter values.
FEATURE:
User Lockout:
The User Lockout feature is avail-
able in order to prevent customers
from tampering with the EQs and
associated parameters that have
been set.
To access the User Lockout fea-
ture, press the UTILITY button, then
press the arrow UP button until the
USER LOCKOUT parameter is dis-
played. Toggle the Encoder to
select ON.
When set to ON, the User Lockout
feature locks the current Preset and
prevents users from accessing the
following buttons and their associat -
ed parameters:
PRESET
DELAY
LIMITER
Pressing any of these buttons or
turning the ENCODER will yield a
"LOCKED" message on the display.
To Disable User Lockout:
Press and hold the UTILITY button
for five seconds until you see the
USER LOCKOUT parameter.
Disable the Lockout mode by tog-
gling the Encoder and selecting
OFF.
