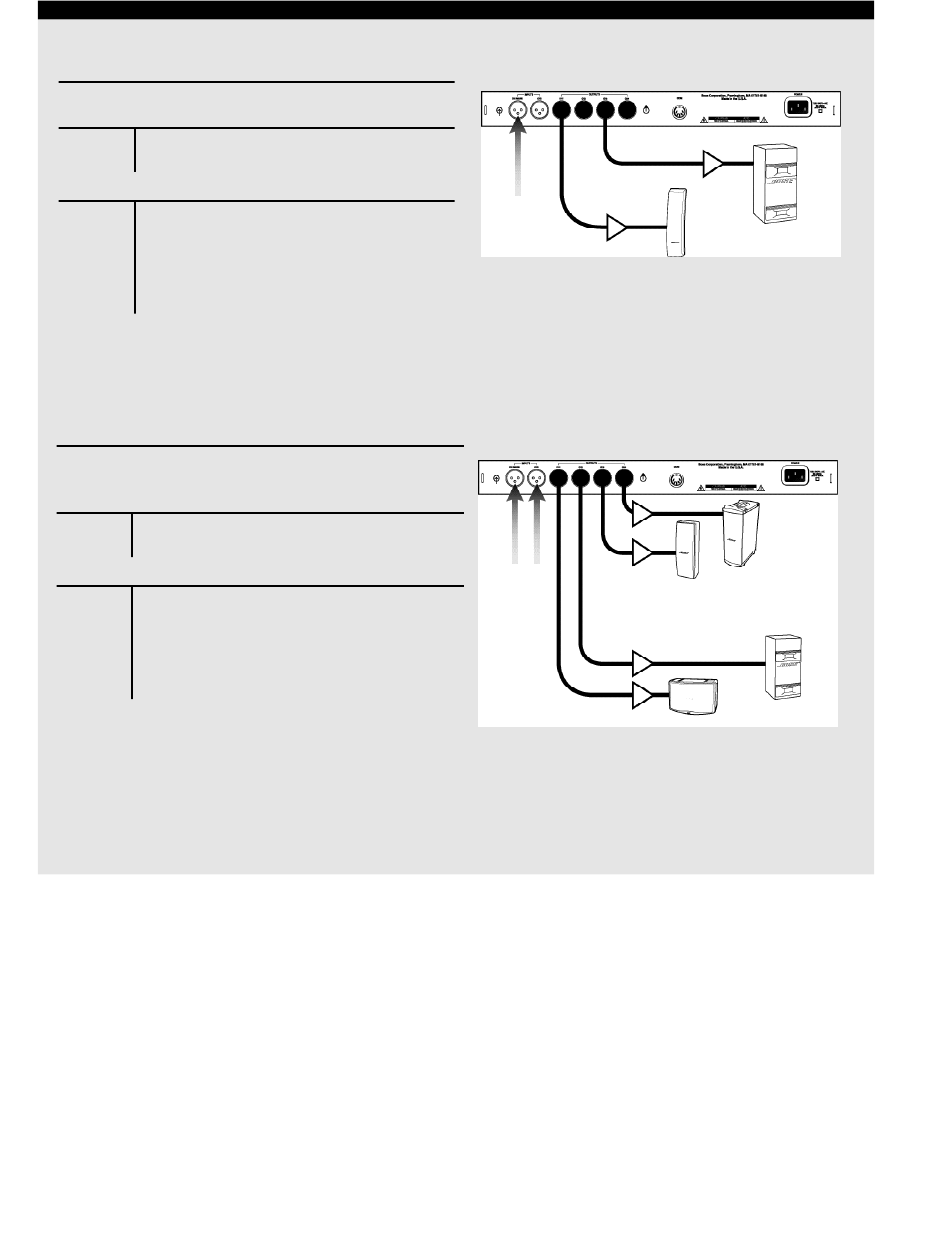

PANARAY SYSTEM DIGITAL CONTROLLER SETUPS
Example 2: Mono Mid High Device with Mono Bass
Preset
®
502 A Speaker Mono with 502B Speaker Mono
Controller Inputs
Ch 1/Mono Mono from mixer
Ch 2 No input
Controller Default Output Routing
Ch 1 Ch 2
Routing 502A speaker 502A speaker
Mono Mono
(High freq) (High freq)
Limiter Off Off
Delay Off Off
Dual Mono Presets:
Example 1: Dual Mono
Presets
Preset 1: 802 ® -III Speaker with 502B Speaker Mono
Preset 2: 402 ® -II Speaker with MB4 Speaker Mono
Controller Inputs
Ch 1 Source #1 from mixer
Ch 2 Source #2 from mixer
Controller Default Output Routing
Ch 1
Routing 802-III speaker
Source #1
(High freq)
Limiter Off
Delay Off
10
Ch3 Ch4
502B speaker 502B speaker
Mono Mono
(Low freq) (Low freq)
Off Off
Off Off
Independent selection of two single mono presets.
Ch 2 Ch3 Ch4
502B speaker 402-II speaker MB4 speaker
Source #1 Source #2 Source #2
(Low freq) (High freq) (Low freq)
Off Off Off
Off Off Off
Mono from
mixer
From mixer
Source Source 402-II speaker
#1 #2 Source #2
(High freq)
502B speaker
Mono
(Low freq)
502A speaker
Mono
(High freq)
MB4 speaker
Source #2
(Low freq)
Zone 2
502B speaker
Source #1
(Low freq)
Zone 1
802-III speaker
Source #1
(High freq)
