PANARAY SYSTEM DIGITAL CONTROLLER SETUPS
Presets in the Panaray System Digital Controller are organized into Banks. Within each Bank are Presets that provide
®
Bose speaker equalization.
To load a preset from the front panel:
• Press the PRESET button. Next, use the Arrow UP or Arrow DOWN button to select the configuration Bank (Stereo,
Mono, etc.). Then use the Encoder to select the desired Preset. The Panaray System Digital Controller automatically
updates the Outputs to reflect the selected EQ Preset and configuration.
Below are examples that illustrate how the Panaray System Digital Controller is configured for each type of default output
configuration.

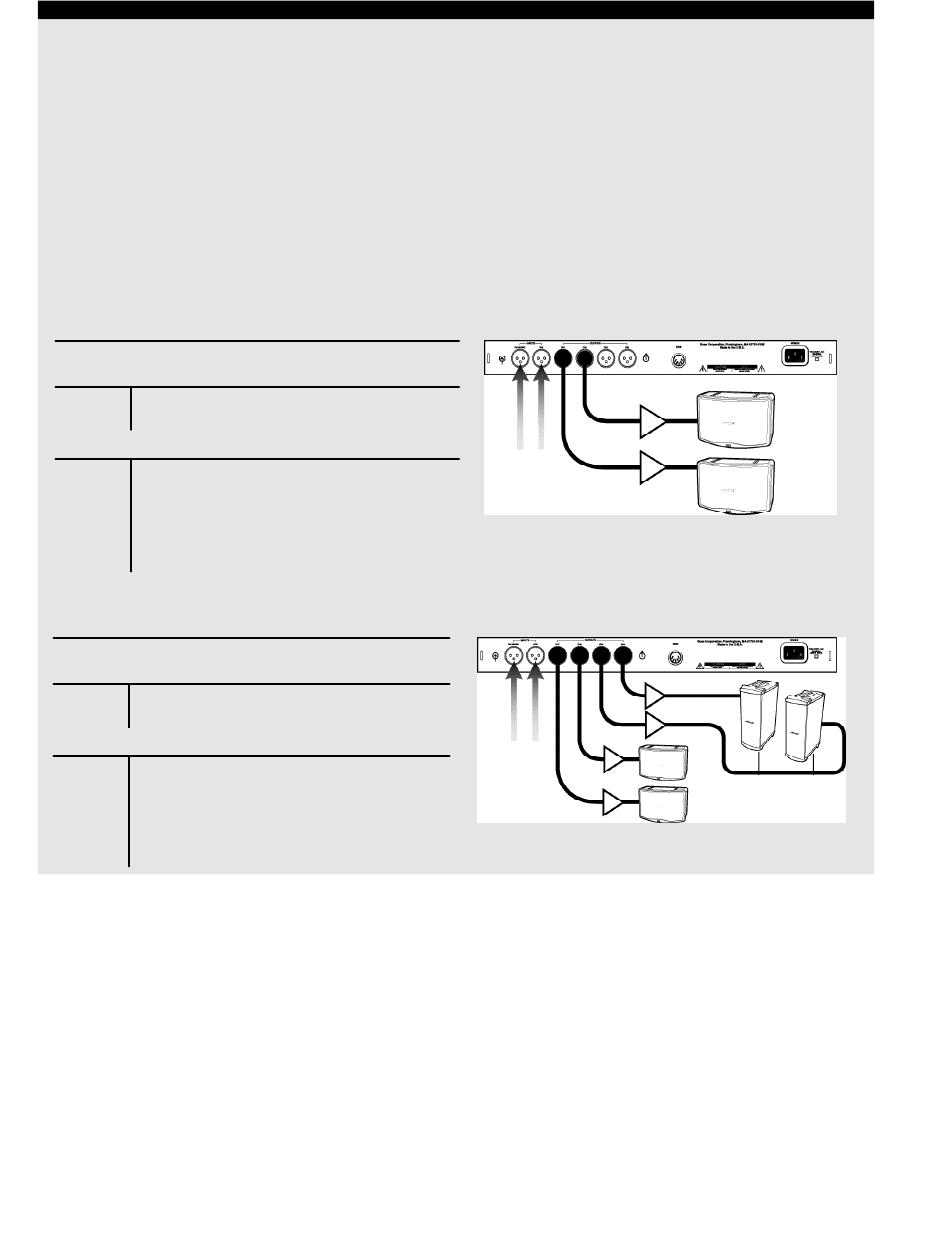

Stereo Preset Bank:
Example 1: Stereo Full Range
Preset
® -
802 III Speaker Stereo Full Range
Controller Inputs
Ch 1/Mono Left from mixer
Ch 2 Right from mixer
Controller Default Output Routing
Ch 1 Ch 2
Routing 802-III speaker 802-III speaker
Left Right
(Full range) (Full range)
Limiter Off Off
Delay Off Off
Example 2: Stereo Mid High with Stereo Bass
Preset
802-III Speaker Stereo with MB4 Speaker Stereo Bass
Controller Inputs
Ch 1/Mono Left from mixer
Ch 2 Right from mixer
Controller Default Output Routing
Ch 1 Ch 2
Routing 802-III speaker 802-III speaker
Left Right
(High freq) (High freq)
Limiter Off Off
Delay Off Off
8
Presets designed for Stereo operation.
Ch 3 Ch 4
802-III speaker 802-III speaker
Left Right
(Full range) (Full range)
Off Off
Off Off
Ch3 Ch4
MB4 speaker MB4 speaker
Left Right
(Low freq) (Low freq)
Off Off
Off Off
From mixer
Left Right
From mixer
Left
Right
®
802 -III speaker
Right
(Full range)
802-III speaker
Left
(Full range)
802-III
speaker
Right
MB4 speaker
(High freq) MB4 speaker
Left
Right
802-III (Low freq)
(Low freq)
speaker
Left
(High freq)
