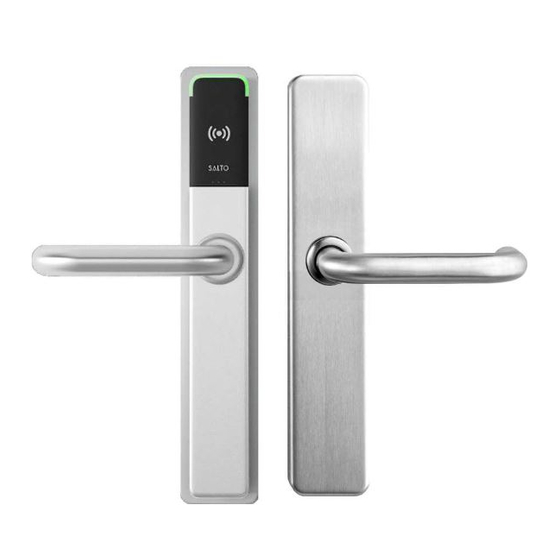

Salto XS4 One S Montageanleitung

Installation guide
Eng
Guía de instalación
E
Montageanleitung
D
Guide d'installation
F
Guida all'installazione
I
Guia de instalação
P
TORX 20 (x2)
TORX 20 (x1)
TORX 20 (x2)
ALLEN 3 (x2)
BOLT (Depending on door thickness)
Only with SALTO
LT2Lxx.. tubular latch!
"A2" version has to be
installed always with the
SALTO LT2L tubular latch.
La versión "A2" solo se puede
instalar con el picaporte
tubular SALTO LT2L.
SALTO LT2Lxx
A2..
With Ei7xx
Tubular latch
To be used only with
SALTO compatible
escutcheons!
O
25
A utiliser uniquement
avec les ensembles
O
1"
plaques-béquilles
SALTO compatibles!
¡Utilizar solamente
con escudos SALTO
compatibles!
All contents current at time of publication.
SALTO Systems S.L. reserves the right to change availability of any
item in this catalog, its design, construction, and/or materials.
Installation guide
S
XS4 One for European mortsie
locks
42
Out side
* *
* *
t > 60
Not included
No incluido
Nicht enthalten
Non incluse
Non incluso
Não incluido
Only!
42 20
20
I nside
O
14
SALTO recommends the use of a mortise lock, with a maximum 4º pre-turn.
SALTO recomienda utilizar cerraduras con un pregiro máximo de 4º.
SALTO empfiehlt den Einsatz von Einsteckschlössern mit max. 4° Vorspannung.
SALTO recommande d'utiliser des serrures à mortaiser avec un angle au repos de 4° maximum.
SALTO raccomanda l'utilizzo di una serratura con un angolo di pre-rotazione massimo di 4°.
SALTO recomenda utilizar fechaduras com uma pré rotação máxima de 4º.
2021 SALTO Systems S.L.
©
*
112- FOR 7F MODEL
O
14
1/4
50
E i 8 xx..series
Model: W81M
226867-ED.-24/08/2021
