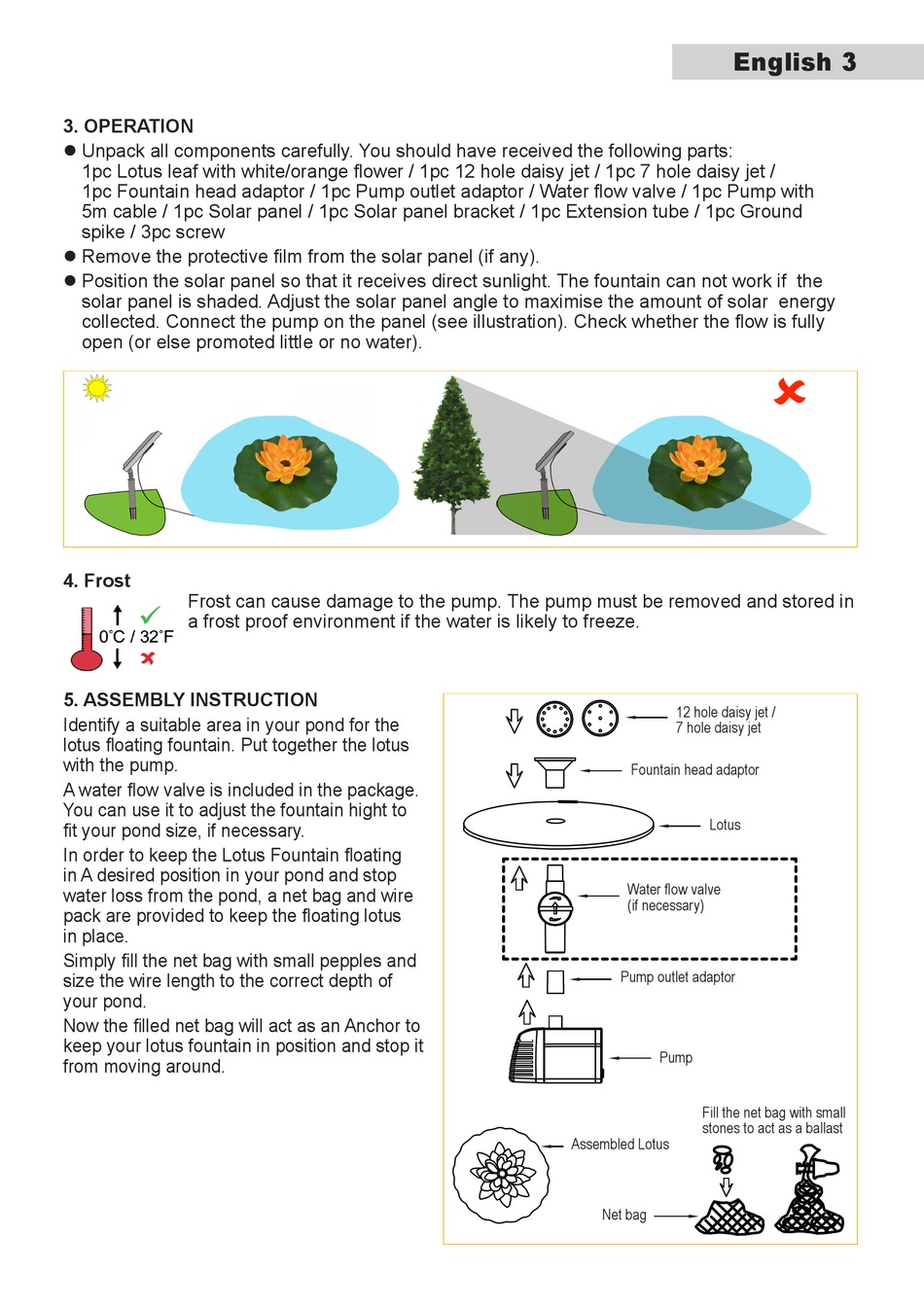

3. OPERATION
l Unpack all components carefully. You should have received the following parts:
1pc Lotus leaf with white/orange flower / 1pc 12 hole daisy jet / 1pc 7 hole daisy jet /
1pc Fountain head adaptor / 1pc Pump outlet adaptor / Water flow valve / 1pc Pump with
5m cable / 1pc Solar panel / 1pc Solar panel bracket / 1pc Extension tube / 1pc Ground
spike / 3pc screw
l Remove the protective film from the solar panel (if any).
l Position the solar panel so that it receives direct sunlight. The fountain can not work if the
solar panel is shaded. Adjust the solar panel angle to maximise the amount of solar energy
collected. Connect the pump on the panel (see illustration). Check whether the flow is fully
open (or else promoted little or no water).
4. Frost
Frost can cause damage to the pump. The pump must be removed and stored in
a frost proof environment if the water is likely to freeze.
5. ASSEMBLY INSTRUCTION
Identify a suitable area in your pond for the
lotus floating fountain. Put together the lotus
with the pump.
A water flow valve is included in the package.
You can use it to adjust the fountain hight to
fit your pond size, if necessary.
In order to keep the Lotus Fountain floating
in A desired position in your pond and stop
water loss from the pond, a net bag and wire
pack are provided to keep the floating lotus
in place.
Simply fill the net bag with small pepples and
size the wire length to the correct depth of
your pond.
Now the filled net bag will act as an Anchor to
keep your lotus fountain in position and stop it
from moving around.
English 3
12 hole daisy jet /
7 hole daisy jet
Fountain head adaptor
Lotus
Water flow valve
(if necessary)
Pump outlet adaptor
Pump
Fill the net bag with small
stones to act as a ballast
Assembled Lotus
Net bag
