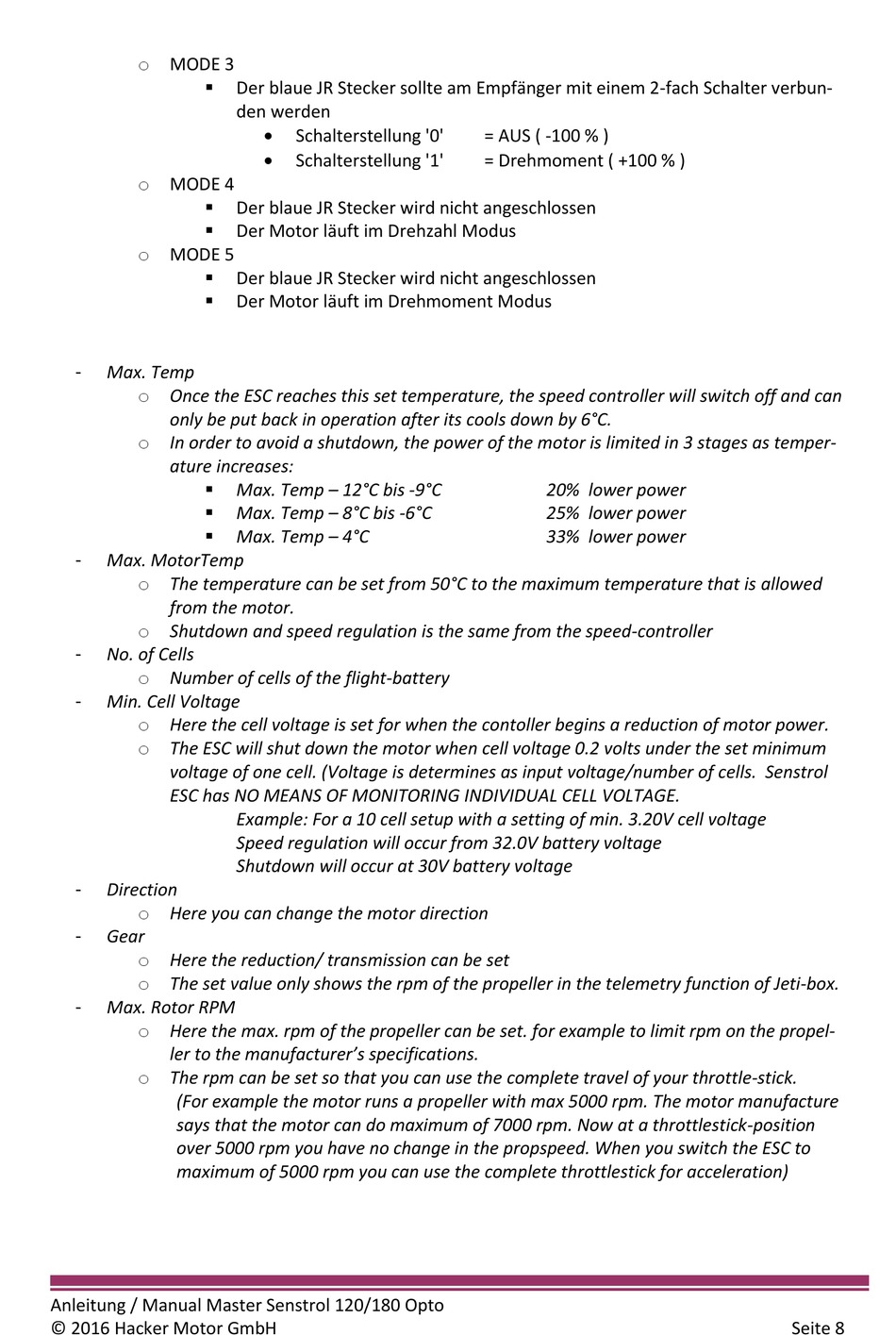

Hacker MASTER Senstrol 120A Opto Bedienungsanleitung Seite 8

o MODE 3

o MODE 4


o MODE 5


Max. Temp
-
o Once the ESC reaches this set temperature, the speed controller will switch off and can
only be put back in operation after its cools down by 6°C.
o In order to avoid a shutdown, the power of the motor is limited in 3 stages as temper-
ature increases:



Max. MotorTemp
-
o The temperature can be set from 50°C to the maximum temperature that is allowed
from the motor.
o Shutdown and speed regulation is the same from the speed-controller
No. of Cells
-
o Number of cells of the flight-battery
- Min. Cell Voltage
o Here the cell voltage is set for when the contoller begins a reduction of motor power.
o The ESC will shut down the motor when cell voltage 0.2 volts under the set minimum
voltage of one cell. (Voltage is determines as input voltage/number of cells. Senstrol
ESC has NO MEANS OF MONITORING INDIVIDUAL CELL VOLTAGE.
Direction
-
o Here you can change the motor direction
Gear
-
o Here the reduction/ transmission can be set
o The set value only shows the rpm of the propeller in the telemetry function of Jeti-box.
- Max. Rotor RPM
o Here the max. rpm of the propeller can be set. for example to limit rpm on the propel-
ler to the manufacturer's specifications.
o The rpm can be set so that you can use the complete travel of your throttle-stick.
(For example the motor runs a propeller with max 5000 rpm. The motor manufacture
says that the motor can do maximum of 7000 rpm. Now at a throttlestick-position
over 5000 rpm you have no change in the propspeed. When you switch the ESC to
maximum of 5000 rpm you can use the complete throttlestick for acceleration)
Anleitung / Manual Master Senstrol 120/180 Opto
© 2016 Hacker Motor GmbH
Der blaue JR Stecker sollte am Empfänger mit einem 2-fach Schalter verbun-
den werden

Schalterstellung '0'

Schalterstellung '1'
Der blaue JR Stecker wird nicht angeschlossen
Der Motor läuft im Drehzahl Modus
Der blaue JR Stecker wird nicht angeschlossen
Der Motor läuft im Drehmoment Modus
Max. Temp – 12°C bis -9°C
Max. Temp – 8°C bis -6°C
Max. Temp – 4°C
Example: For a 10 cell setup with a setting of min. 3.20V cell voltage
Speed regulation will occur from 32.0V battery voltage
Shutdown will occur at 30V battery voltage
= AUS ( -100 % )
= Drehmoment ( +100 % )
20% lower power
25% lower power
33% lower power
Seite 8
