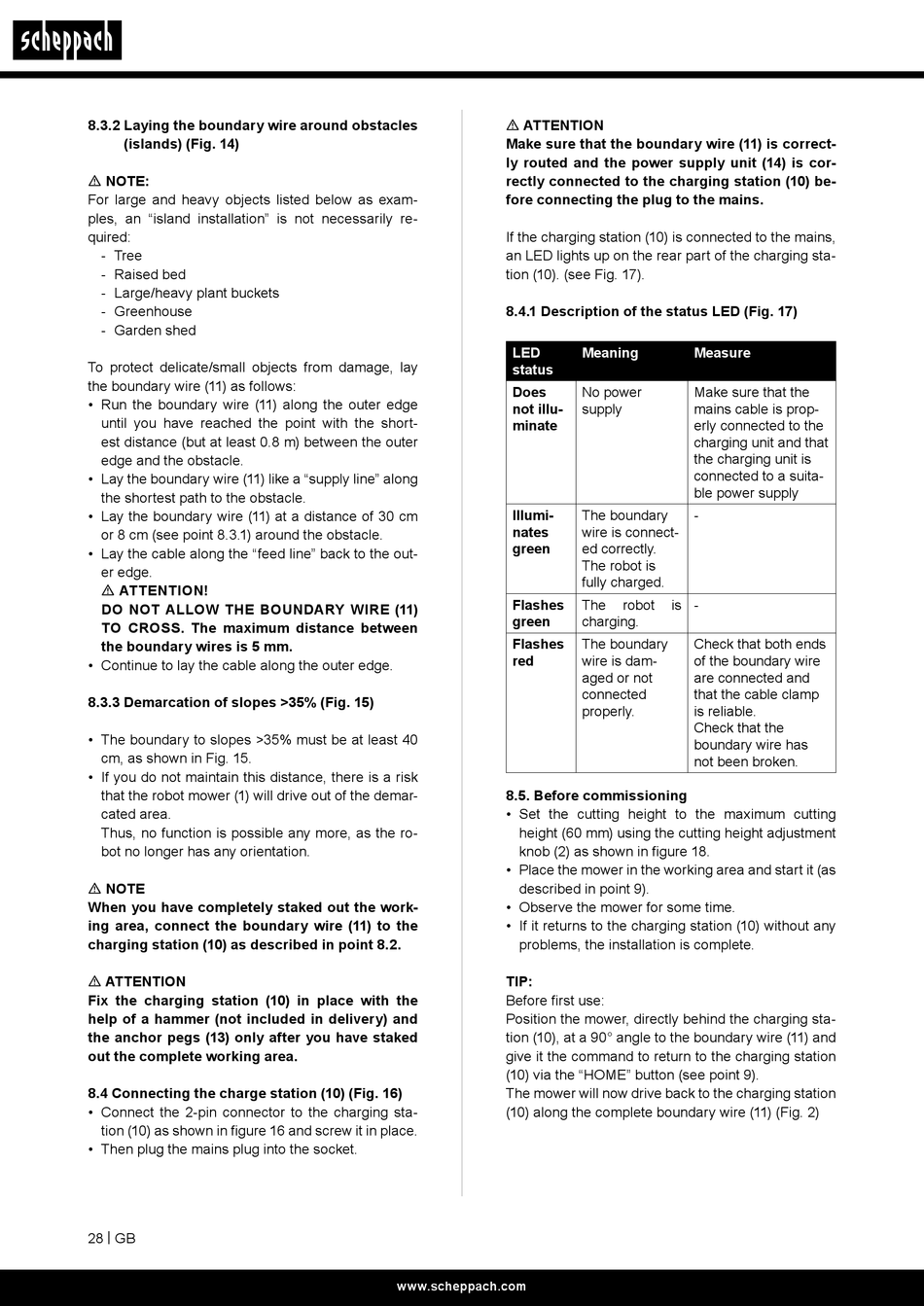

8.3.2 Laying the boundary wire around obstacles
(islands) (Fig. 14)
m NOTE:
For large and heavy objects listed below as exam-
ples, an "island installation" is not necessarily re-
quired:
- Tree
- Raised bed
- Large/heavy plant buckets
- Greenhouse
- Garden shed
To protect delicate/small objects from damage, lay
the boundary wire (11) as follows:
• Run the boundary wire (11) along the outer edge
until you have reached the point with the short-
est distance (but at least 0.8 m) between the outer
edge and the obstacle.
• Lay the boundary wire (11) like a "supply line" along
the shortest path to the obstacle.
• Lay the boundary wire (11) at a distance of 30 cm
or 8 cm (see point 8.3.1) around the obstacle.
• Lay the cable along the "feed line" back to the out-
er edge.
m ATTENTION!
DO NOT ALLOW THE BOUNDARY WIRE (11)
TO CROSS. The maximum distance between
the boundary wires is 5 mm.
• Continue to lay the cable along the outer edge.
8.3.3 Demarcation of slopes >35% (Fig. 15)
• The boundary to slopes >35% must be at least 40
cm, as shown in Fig. 15.
• If you do not maintain this distance, there is a risk
that the robot mower (1) will drive out of the demar-
cated area.
Thus, no function is possible any more, as the ro-
bot no longer has any orientation.
m NOTE
When you have completely staked out the work-
ing area, connect the boundary wire (11) to the
charging station (10) as described in point 8.2.
m ATTENTION
Fix the charging station (10) in place with the
help of a hammer (not included in delivery) and
the anchor pegs (13) only after you have staked
out the complete working area.
8.4 Connecting the charge station (10) (Fig. 16)
• Connect the 2-pin connector to the charging sta-
tion (10) as shown in figure 16 and screw it in place.
• Then plug the mains plug into the socket.
28 | GB
m ATTENTION
Make sure that the boundary wire (11) is correct-
ly routed and the power supply unit (14) is cor-
rectly connected to the charging station (10) be-
fore connecting the plug to the mains.
If the charging station (10) is connected to the mains,
an LED lights up on the rear part of the charging sta-
tion (10). (see Fig. 17).
8.4.1 Description of the status LED (Fig. 17)
LED
status
Does
not illu-
minate
Illumi-
nates
green
Flashes
green
Flashes
red
8.5. Before commissioning
• Set the cutting height to the maximum cutting
height (60 mm) using the cutting height adjustment
knob (2) as shown in figure 18.
• Place the mower in the working area and start it (as
described in point 9).
• Observe the mower for some time.
• If it returns to the charging station (10) without any
problems, the installation is complete.
TIP:
Before first use:
Position the mower, directly behind the charging sta-
tion (10), at a 90° angle to the boundary wire (11) and
give it the command to return to the charging station
(10) via the "HOME" button (see point 9).
The mower will now drive back to the charging station
(10) along the complete boundary wire (11) (Fig. 2)
