1

For Your Safety

For safe and successful operation of the unit, read these instructions completely.
If instructions are not observed, the manufacturer can assume no responsibility.
Caution! Observe general safety regulations for the handling of chemicals!
Observe manufacturer's instructions!
Request a safety data sheet for the product used!
2

Usage and Function

The Vari-Drop™ applicator is suitable for manually dispensing all Loctite
using time/pressure dispensing. This covers products with viscosities up to 80,000 centipoise.
The adjusting screw allows repeatable dispense from light to heavy beads or drops.
The quantity applied is dependent on the stroke set for the trigger (5). Adjust the screw (7) for the
desired amount.
The Vari-Drop™ Applicator #97131 can be used with the Integrated Manual Controller #97003 or
#97004, and the cartridge dispenser #97109. The Vari-Drop™ Applicator #97132 (Replacement Kit) can
be used with the Bond-A-Matic
3

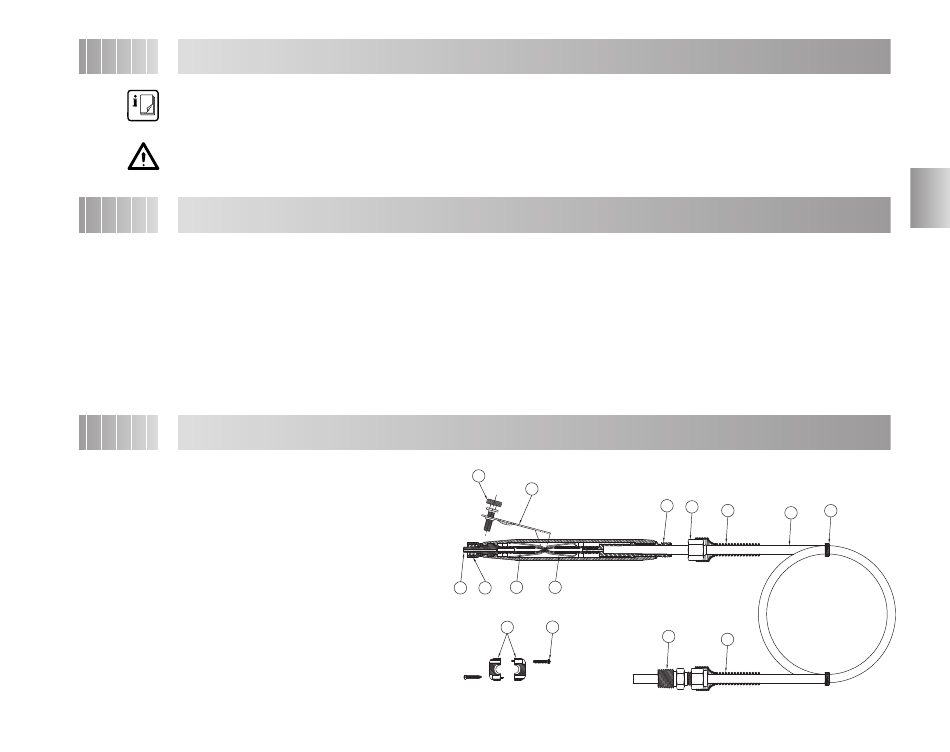

Description

#97131 / #97132
Operating Elements
1. Spring, pinch
2. Applicator Housing
3. Needle Adapter
4. Feed Line Connector
5. Applicator Trigger
6. Pinch Tube Subassembly
7. Screw Flow Adjuster
8. Screw, Housing Assembly
9. Silicone Tubing (not shown)
10. Nut and Sleeve Subassembly
®
11. Tubing, Teflon Lined, 1/4 O.D.
12. Fitting, Thermocouple,
1/4 Tube x 1/4 NPT
13. Spring Guard for 1/4 O.D. Tubing
14. Wire Ties for Tubing Loop
15. Luer-Lck Sleeve
® 3000 (#982719 and #982722).
7
5
3 15 6 1
8
2
® products that can be dispensed
4
10
13 14
11
12
13
3
