1 English

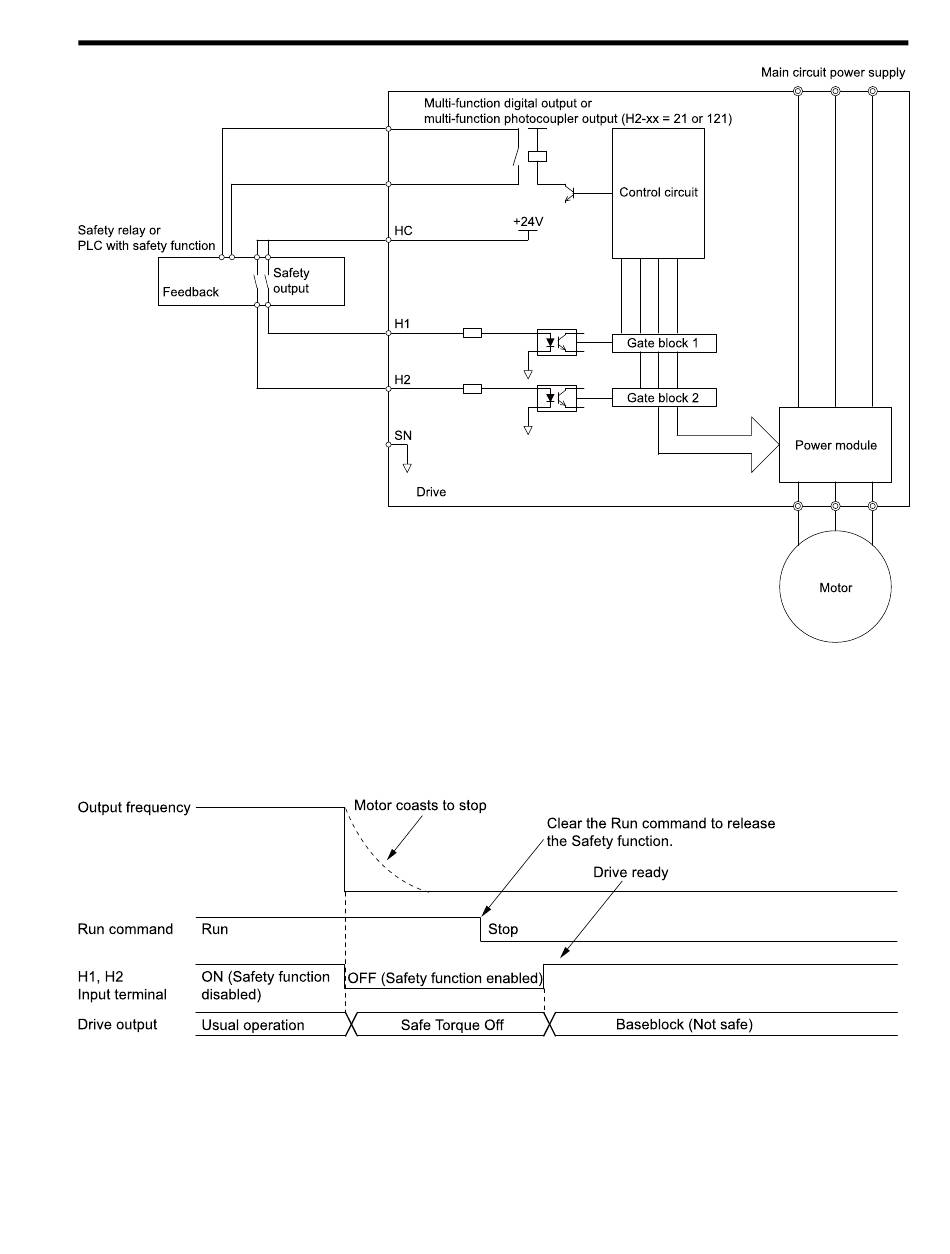

Figure 1.10 Safe Disable Function Wiring Example
■
Enabling and Disabling the Drive Output ("Safe Torque Off")
for an example of drive operation when the drive changes from "Safe
Refer to Figure 1.11
Torque Off" status to usual operation.
Figure 1.11 Safe Disable Operation
YASKAWA TOMPC7106173UA GA500 Installation and Operation Instruction 49
