Product Specification; Technical Parameters; Circuit Diagram - Jimmy HW9 Pro Max Gebrauchsanweisung

Product Specification

Technical parameters

Product Name
Model
Rated Power
Battery Capacity
Charging Time
Rated Input
Rated Voltage

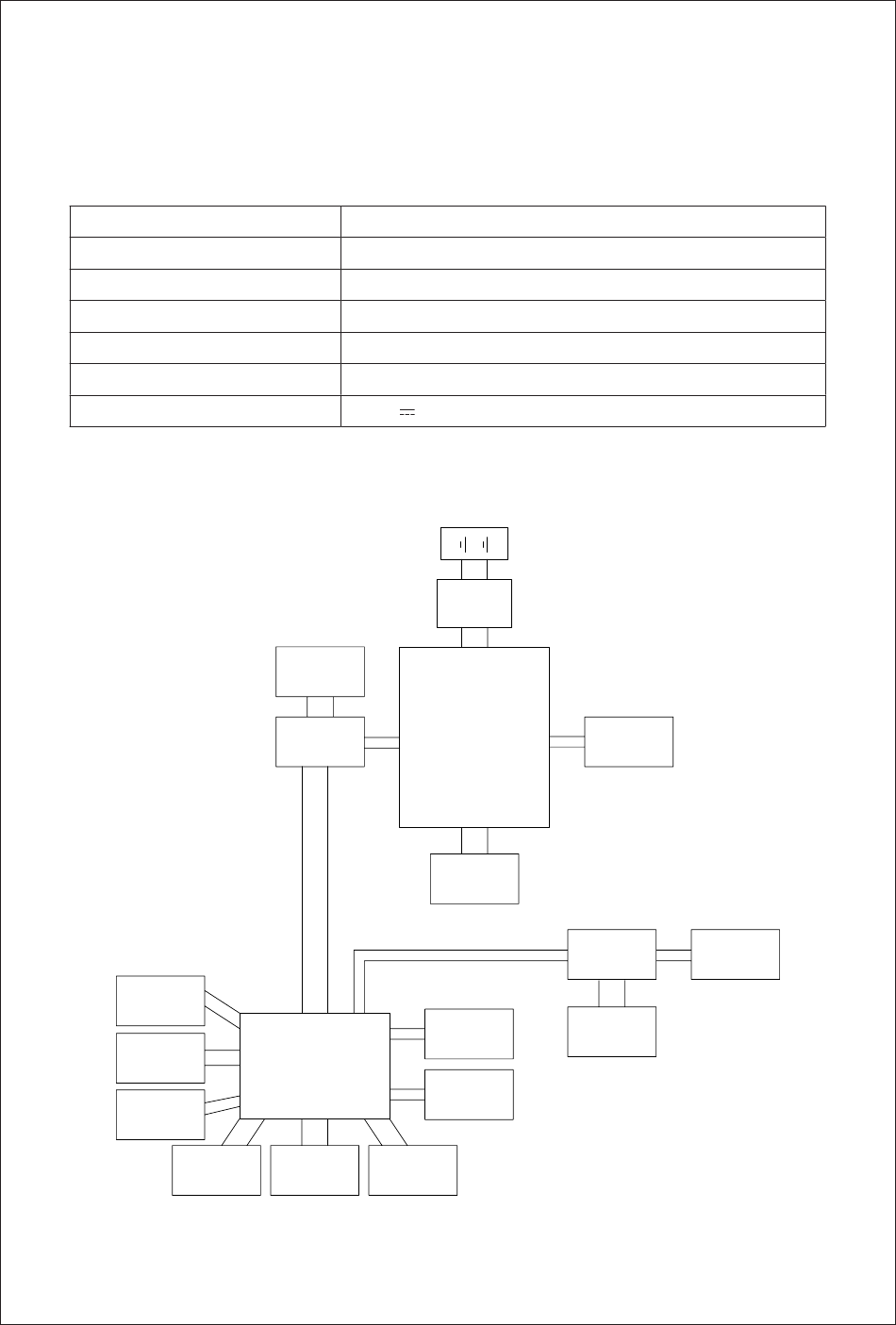

Circuit Diagram

Floorhead
motor
Water pump
Solenoid valve
Micro switch
12
Cordless Vacuum&Washer
HW9 Pro Max
460W
4000mAH
4h±0.5
220 - 240V ~ 50/60 Hz
21.6V
Lithium battery
Dirty water tank
Control PCB 1
Transfer PCB 1
Display screen
voice switch
button PCB
Transfer PCB 2
Infrared tube
PCB
Liquid level
Charging base
sensor
······ ······
Protection
PCB
Brushless
motor
Handle switch
button PCB
Speaker louder
Self-cleaning
button PCB
