Before installation, make sure that all connecting cables of the device are
undamaged.
Preparation

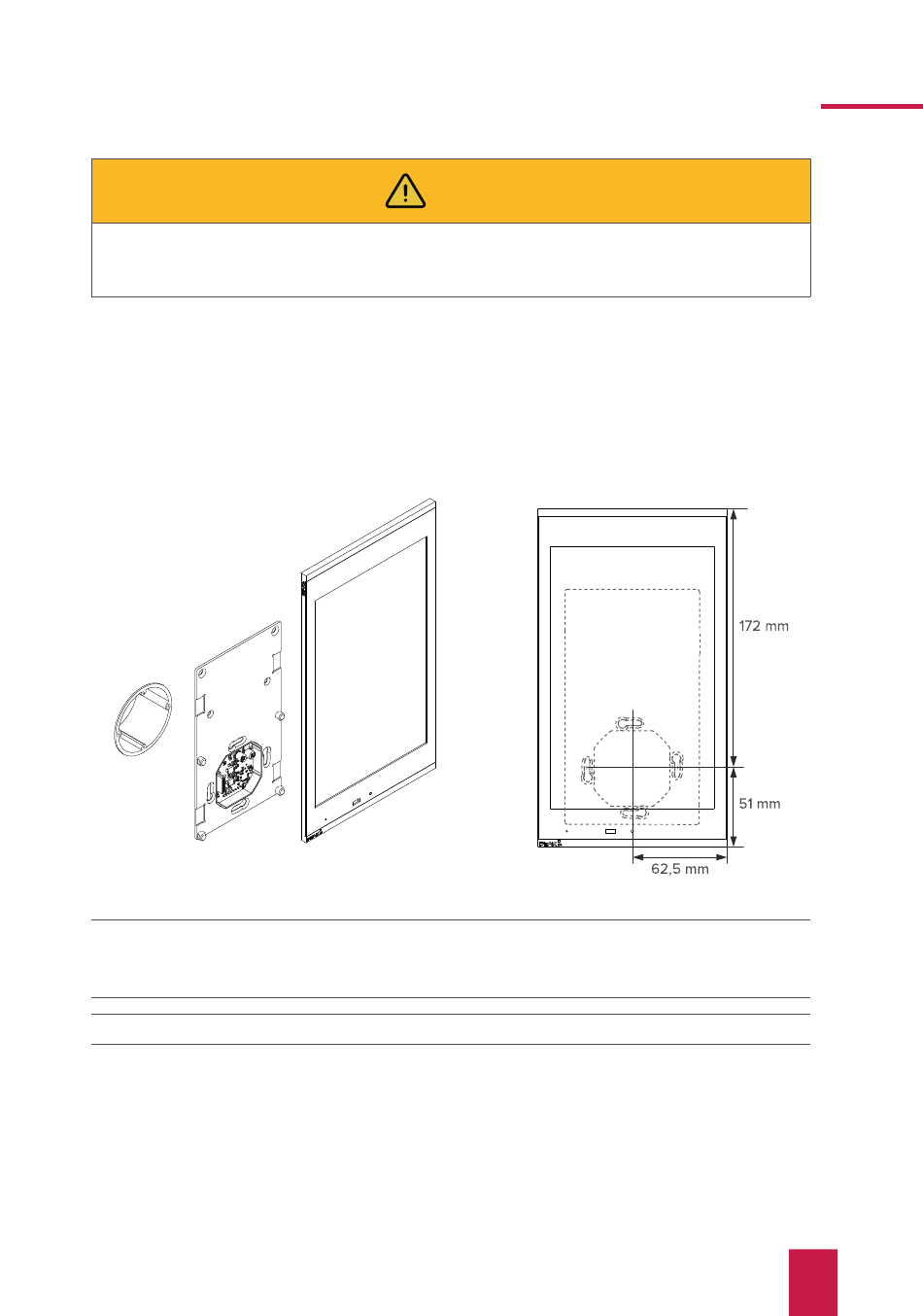

The panel can be installed in both portrait and landscape format over a standard switch box:
standard screw spacing 60 mm, depth min. 35 mm.
Choose the installation height of the panel according to the height of the primary user so
 Tip:
that the top edge of the panel is at his/her eye level. A slightly lower screen prevents fatigue of
the arms during operation.


We recommend fusing the panel separately.
Note:
▪
Use a power source of the following specification:
− 24 V variant; PNX13-10001: 24 V DC, 2.5 A for the control cabinet, for example: Item
number: PNX12-10010
Warning
Panel mounting and installation
