INSTALLATION DIMENSIONS
HI4071M (Dimensions in mm, tolerance 0,5 mm)
644
43
560
min.50

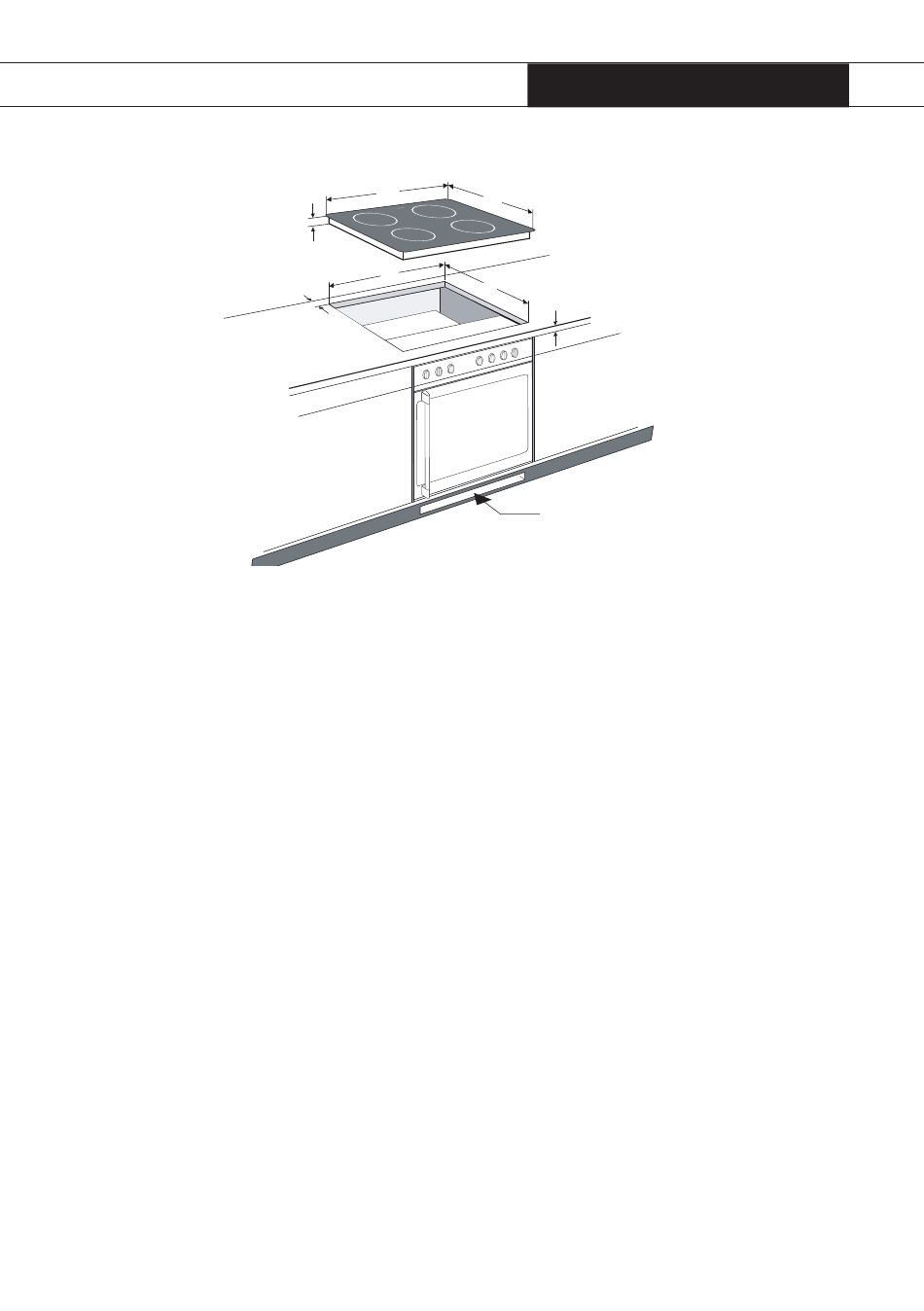

The dimensions and recesses are shown in the illustrations
above.
If you are using a 600 mm wide cupboard with a worktop less
than 500 mm thick, saw a cut-out "C" in both sides
of the cupboard.
18
installation instructions
522
490
28-50
100 cm²
