zoopa 350

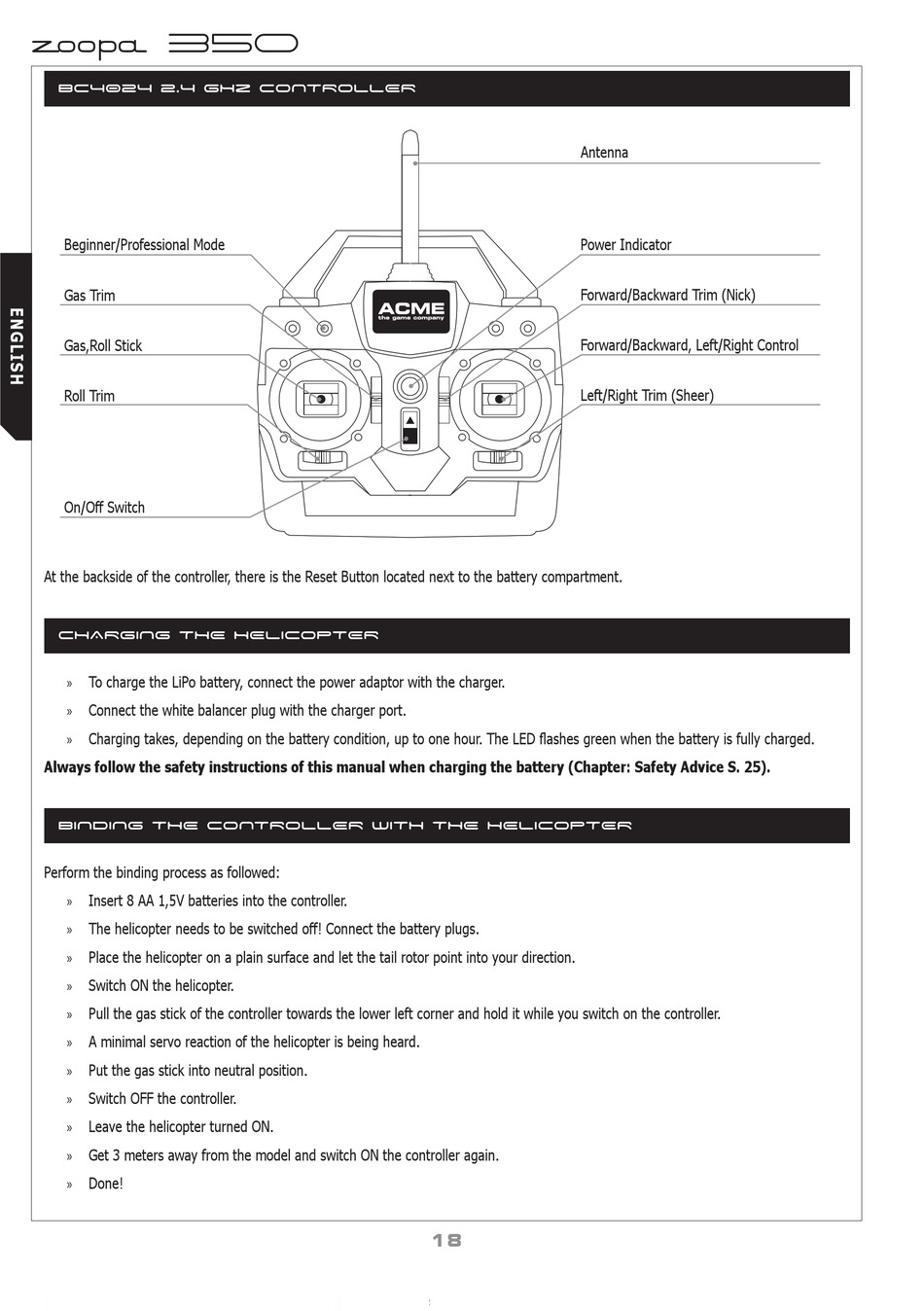

BC4024 2.4 GHZ CONTROLLER

Beginner/Professional Mode
Gas Trim
Gas,Roll Stick
Roll Trim
On/Off Switch
At the backside of the controller, there is the Reset Button located next to the battery compartment.

CHARGING THE HELICOPTER

To charge the LiPo battery, connect the power adaptor with the charger.
»
Connect the white balancer plug with the charger port.
»
Charging takes, depending on the battery condition, up to one hour. The LED flashes green when the battery is fully charged.
»
Always!follow!the!safety!instructions!of!this!manual!when!charging!the!battery!(Chapter:!Safety!Advice!S.!25).
BINDING THE CONTROLLER WITH THE HELICOPTER
Perform the binding process as followed:
Insert 8 AA 1,5V batteries into the controller.
»
The helicopter needs to be switched off! Connect the battery plugs.
»
Place the helicopter on a plain surface and let the tail rotor point into your direction.
»
Switch ON the helicopter.
»
Pull the gas stick of the controller towards the lower left corner and hold it while you switch on the controller.
»
A minimal servo reaction of the helicopter is being heard.
»
Put the gas stick into neutral position.
»
Switch OFF the controller.
»
Leave the helicopter turned ON.
»
Get 3 meters away from the model and switch ON the controller again.
»
Done!
»
Antenna
Power Indicator
Forward/Backward Trim (Nick)
Forward/Backward, Left/Right Control
Left/Right Trim (Sheer)
18
