PALERMO | SIZE 11: 9363843, SIZE 12: 9363844, SIZE 13: 363845
Ganzjahres Wohnwagen Vorzelt | All-season Caravan awning

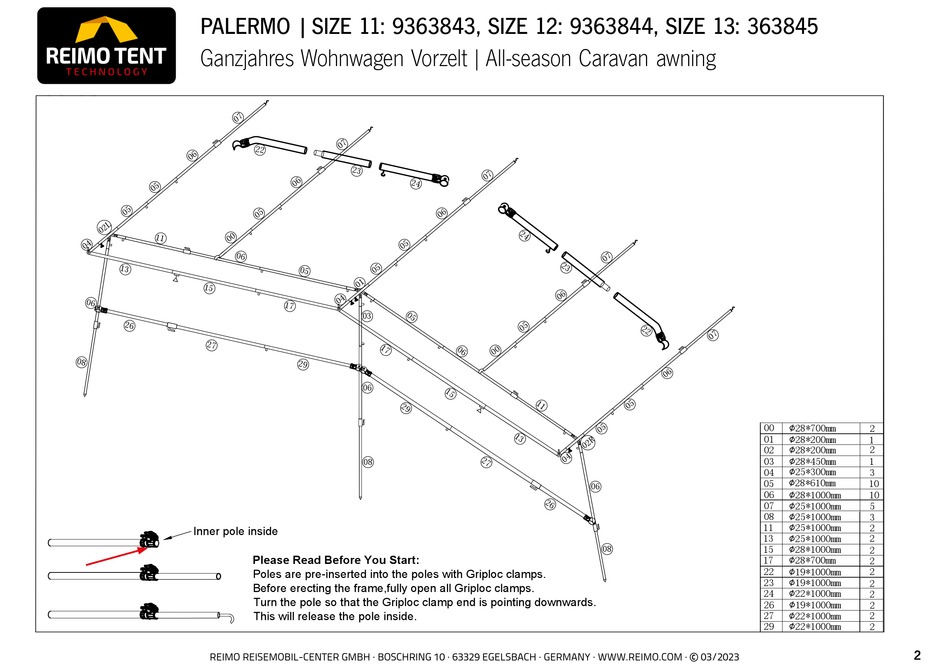

Frame Assembly
11-13
Inner pole inside
REIMO REISEMOBIL-CENTER GMBH · BOSCHRING 10 · 63329 EGELSBACH · GERMANY · WWW.REIMO.COM ·
Please Read Before You Start:
Poles are pre-inserted into the poles with Griploc clamps.
Before erecting the frame,fully open all Griploc clamps.
Turn the pole so that the Griploc clamp end is pointing downwards.
This will release the pole inside.
∅
00
28*700mm
∅
01
28*200mm
1
∅
02
28*200mm
∅
03
28*450mm
1
∅
25*300mm
04
3
∅
05
28*610mm
10
∅
06
28*1000mm
10
∅
07
25*1000mm
5
∅
08
25*1000mm
3
∅
11
25*1000mm
∅
13
25*1000mm
2
∅
15
28*1000mm
2
∅
17
28*700mm
2
∅
22
2
19*1000mm
∅
23
19*1000mm
2
∅
24
22*1000mm
2
∅
26
19*1000mm
∅
27
2
22*1000mm
∅
29
22*1000mm
©
03/2023
2
2
2
2
2
2
