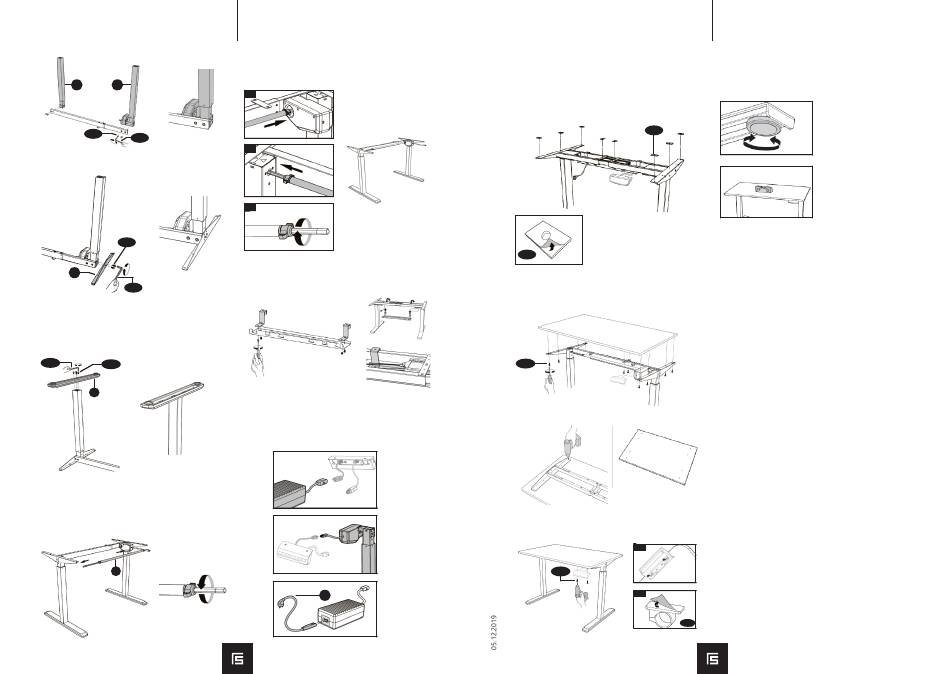

FASTENING SIDE BRACKETS
•
Fasten the side brackets E to the traverse with S-E
bolts.
S-A
E
S-G
FOOT INSTALLATION
•
Place the foot D on the bottom of the lifting column.
Make sure that the mounting holes on the foot are
completely aligned with the screw holes in the lifting
column E.
•
Fasten the foot C with S-A screws and S-G allen
wrench.
S-G
S-A
D
INSTALLATION OF THE ADJUSTMENT ROD
•
Turn the desk frame upwards.
•
After placing the frame in a vertical position, turn
the rod adjustment knob as shown in the picture
counterclockwise to loosen the B adjustment rod.
•
Then adjust the adjustment rod to fit the width of
the frame.
B
EN
•
Align the red line on the adjustment rod to the
right side of the left foot. Align the right side of the
adjustment rod with the red line.
•
Retighten the adjustment rod with the hand wheel.
1
2
3
CABLE TRAY INSTALLATION
•
Align the mounting holes in the tray hooks with the
screw holes in the cable tray.
•
Mount cable hooks to cable tray D with S-D screws
from below using a phillips screwdriver.
•
Hang the cable trays on the traverse and tighten the
knobs on the hooks.
INSTALLATION OF CABLES AND AC ADAPTER.
•
Connect the AC adapter F to the control panel K
•
Connect the control panel to the lifting column.
•
Insert the power plug into the power supply.
J
EN
Caution! The picture of control panel is for informational
purposes only. The actual product may vary.
DESKTOP ASSEMBLY
•
Remove the adhesive backing layer from the rubber
pads.
•
Stick the pad to the traverse surface in 8 places as
shown.
S-F
S-F
•
Align the previously drilled screw holes with the
mounting holes on the traverse. Fasten with S-B
screws from below.
•
Repeat the same steps to mount the other side of
the countertop.
S-B
CAUTION! Mounting holes should be greater than 10 mm
and diameter less than 3 mm.
•
Fasten the control panel to the counter with S-C
screws and a drill.
•
Stick the adhesive clip to the S-E cable under the
desk to organize the cables.
1
S-C
2
S-E
13
FOOT ADJUSTMENT
•
There are two adjustable pads under each foot. To
ensure stability, the desk should be adjusted by
rotating the pad.
Tip: Use the bubble level to check the desk level.
•
Connect the device to the power supply.
3.3. DEVICE USE
Digital control panel for electric desk height adjustment.
WORKING WITH THE DEVICE
•
Height adjustment - up/down button - press and
hold the button to raise/lower the desk
•
Timer - used to inform the user about getting up
after a specified time. To set the time, press the „T"
button. Each time you press the „T" button, the time
increases by another 30 minutes. The maximum time
setting is 2 hours. When the display stops flashing,
the time has been set successfully and the indicator
light in the upper right corner of the panel lights up.
When the time is up, a beep will sound to remind
you. The clock will automatically turn off after a long
beep. To cancel the countdown, press the „T" button
5 times until the current altitude appears on the
display and the control lamp goes out.
•
Memory - set the desk in the desired position; Press
the „M" button and then the „S" will appear on the
display. Then press the „1", „2" or „3" button to code
the height setting. You can save up to 3 heights in
the device's memory.
•
Power saving mode - if no operations are performed
for 10 minutes, the system will go into power saving
mode. To return to normal operation, unplug the
power cord and then plug it in again.
•
Measuring switch [cm inches] – press and hold the
„T" button for 8 seconds. A beep will announce the
unit change from centimeters to inches. If you want
to change the measuring unit again, hold the „T"
button for 8 seconds.
•
Reset mode - after reconnecting the system, press
the down button until „RST" appears. Hold the
button. The desk will move down and then slightly
rise (make sure that the button was pressed
throughout the reset process). After stopping the
movement, the system is restored to its starting
position.
Problem solving:
If the message ER1 / ER2 / ER3/ ER5 appears on the control
panel, you should not worry. This means that the
system has exceeded its rated values by use. To
solve the problem, follow the steps below. If the
