The device is not designed to be handled by persons
(including children) with limited mental and sensory
functions or persons lacking relevant experience and/
or knowledge unless they are supervised by a person
responsible for their safety or they have received
instruction on how to operate the device.
c)
The device can be handled only by physically fit
persons who are capable of handling it, properly
trained, familiar with this manual and trained within
the scope of occupational health and safety.
d)
When working with the device, use common sense
and stay alert. Temporary loss of concentration while
using the device may lead to serious injuries.
e)
To prevent the device from accidentally switching on,
make sure the switch is on the OFF position before
connecting to a power source.
f)
Remove all adjusting tools or spanners before turning
the device on. A tool or spanner left in the revolving
part of the device may cause injury.
g)
The device is not a toy. Children must be supervised to
ensure that they do not play with the device.
2.4. SAFE DEVICE USE
a)
Do not overload the device. Use the appropriate tools
for the given task. A correctly-selected device will
perform the task for which it was designed better and
in a safer manner.
b)
Do not use the device if the ON/OFF switch does not
function properly (does not switch the device on and
off). Devices which cannot be switched on and off
using the ON/OFF switch are hazardous, should not
be operated and must be repaired.
c)
Make sure the plug is disconnected from the socket
before
attempting
any
adjustments,
accessory
replacements or before putting the device aside.
Such precautions will reduce the risk of accidentally
activating the device.
d)
Disconnect the device from the power supply
before commencement of adjustment, cleaning and
maintenance. Such a preventive measure reduces the
risk of accidental activation.
e)
Keep the device in perfect technical condition. Before
each use check for general damage and especially
check for cracked parts or elements and for any other
conditions which may impact the safe operation of
the device. If damage is discovered, hand over the
device for repair before use.
f)
Keep the device out of the reach of children.
g)
Device repair or maintenance should be carried out by
qualified persons, only using original spare parts. This
will ensure safe use.
h)
To ensure the operational integrity of the device, do
not remove factory-fitted guards and do not loosen
any screws.
i)
When transporting and handling the device between
the warehouse and the destination, observe the
occupational health and safety principles for manual
transport operations which apply in the country where
the device will be used.
j)
Avoid situations where the device stops working
during use due to excessive loading. This may result
in overheating of the drive elements and damage to
the device.
EN
k)
Do not touch articulated parts or accessories unless
the device has been disconnected from the power
source.
l)
Do not move, adjust or rotate the device in the course
of work.
m)
Do not leave this appliance unattended while it is in
use.
n)
Clean the device regularly to prevent stubborn grime
from accumulating.
o)
The device is not a toy. Cleaning and maintenance
may not be carried out by children without
supervision by an adult person.
p)
It is forbidden to interfere with the structure of
the device in order to change its parameters or
construction.
q)
Keep the device away from sources of fire and heat.
r)
Do not overload the device.
s)
Exceeding the maximum permissible user weight can
damage the product.
t)
Improper use of the product, e.g. sitting on a counter,
may result in a damage of the product and / or injury.
Do not sit on the counter to prevent serious injury.
u)
It is forbidden to move or lie under the desk during
adjustment. Do not sit or stand on the desk frame.
Take special care when adjusting.
v)
Regularly check if the desk adjustment mechanism
works properly and remove any obstacles blocking
the possibility of efficient adjustment.
w)
Make sure that cables, connections and plugs do not
interfere with the use of the product.
x)
When adjusting the height of the desk, make sure
that the cables are of sufficient length. Too short
cables and connections can make height adjustment
difficult or damage other devices.
ATTENTION! Despite the safe design of the device
and its protective features, and despite the use of
additional elements protecting the operator, there
is still a slight risk of accident or injury when using
the device. Stay alert and use common sense when
using the device.
3. USE GUIDELINES
The product is intended to support and adjust the height
of the counter.
The user is liable for any damage resulting from
unintended use of the device.

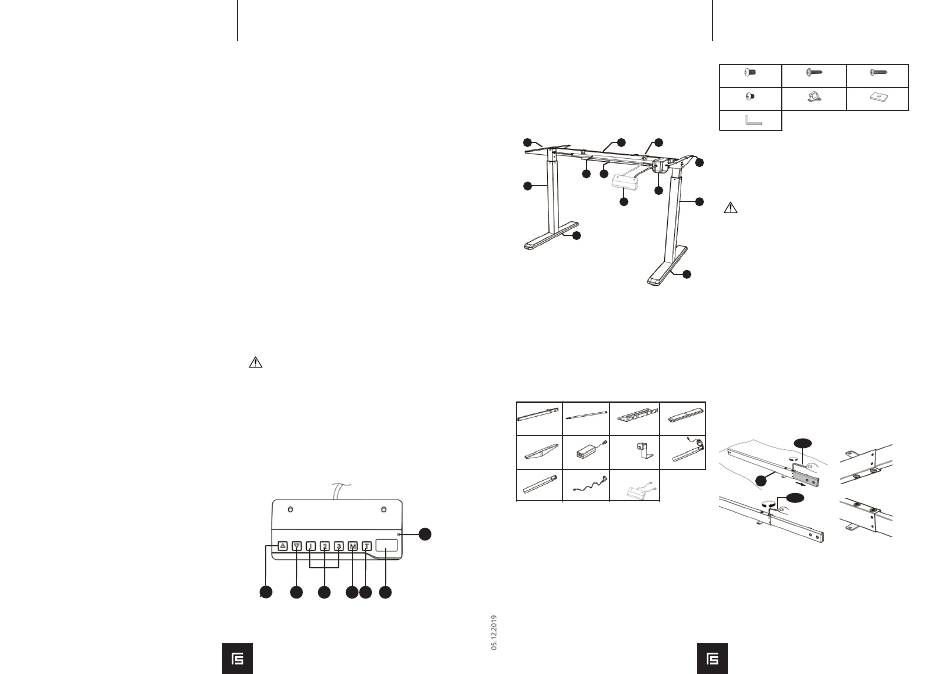

3.1. DEVICE DESCRIPTION
Digital control panel for desk height adjustment.
G
A
B
C
D
E
F
EN
A.
Move up
B.
Move down
C.
Memory 1/2/3
D.
Memory/screen lock (unlock)
E.
Timer
F.
Display
G.
Signal lamp
Electric sit stand desk frame
5
1
7
2
3
8
6
9
4
4
1.
Traverse
2.
Adjustment rod
3.
Cable management tray
4.
Foot
5.
Side bracket
6.
AC adapter
7.
Hook
8.
Lifting column
9.
Control panel
3.2. PREPARING FOR USE
Electric sit stand desk frame
ELEMENTS LIST:
A(x1)
B(x1)
C(x1)
D(x2)
E(x2)
F(x1)
H(x1)
G(x2)
K(x1)
I(x1)
J(x1)
A.
Traverse
B.
Adjustment rod
C.
Cable management tray
D.
Foot
E.
Side bracket
F.
AC adapter
G.
Hook
H.
Lifting column
I.
Lifting column
J.
Power plug
K.
Control panel
11
CONNECTION ELEMENTS
S-A(x20)
S-C(x2)
S-B(x10)
S-D(x4)
S-E(x3)
S-D(x8)
S-G(x1)
S-A. Hexagon head screw
S-B. Phillips head screw + 1 spacer pad
S-C. Long phillips head screw
S-D. Short phillips head screw
5
S-E.
Cable clip
S-F.
Rubber pad
S-G. Allen wrench
8
Warning! Before assembling the device, make
sure that the number of items in the packaging
corresponds to the list of items contained in this
manual.
The temperature of environment must not be higher than
40°C and the relative humidity should be less than 85%.
Ensure good ventilation in the room in which the device is
being used. There should be at least 10 cm distance between
each side of the device and the wall or other objects. Position
the device such that you always have access to the power
plug. The power cord connected to the appliance must be
properly grounded and correspond to the technical details on
the product label.
ASSEMBLING THE DEVICE
Before installation, prepare and secure the appropriate space.
It is recommended to use a protective mat or pad to prevent
product / floor scratches.
MOUNTING THE TRAVERSE
•
Loosen the hexagon head screw that holds the
adjustable connector, but do not remove it
completely.
•
Adjust the frame width
•
Tighten the hexagon head screw to complete the
adjustment.
S-G
S-G
A
S-G
INSTALLATION OF THE LIFTING COLUMNS
•
Remove the desk counter for further installation
•
nsert two lifting columns (one on each side) into the
traverse with the lifting columns faced inward. Make
sure that the mounting holes in the lifting columns
are completely aligned with the screw holes in the
traverse.
•
Fasten the lifting column H with S-A screws and S-F
allen wrench.
•
Fasten the lifting column I with S-A screws and S-F
allen wrench.
