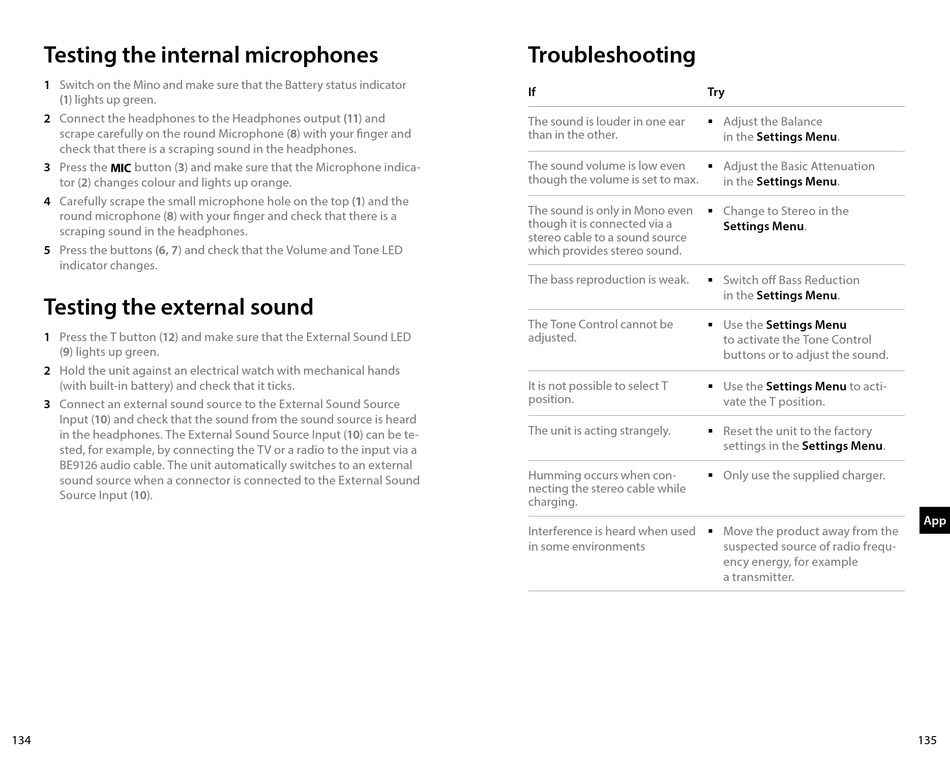

Testing the internal microphones
1 Switch on the Mino and make sure that the Battery status indicator
(1) lights up green.
2 Connect the headphones to the Headphones output (11) and
scrape carefully on the round Microphone (8) with your finger and
check that there is a scraping sound in the headphones.
3 Press the button (3) and make sure that the Microphone indica-
M
tor (2) changes colour and lights up orange.
4 Carefully scrape the small microphone hole on the top (1) and the
round microphone (8) with your finger and check that there is a
scraping sound in the headphones.
5 Press the buttons (6, 7) and check that the Volume and Tone LED
indicator changes.
Testing the external sound
1 Press the T button (12) and make sure that the External Sound LED
(9) lights up green.
2 Hold the unit against an electrical watch with mechanical hands
(with built-in battery) and check that it ticks.
3 Connect an external sound source to the External Sound Source
Input (10) and check that the sound from the sound source is heard
in the headphones. The External Sound Source Input (10) can be te-
sted, for example, by connecting the TV or a radio to the input via a
BE9126 audio cable. The unit automatically switches to an external
sound source when a connector is connected to the External Sound
Source Input (10).
134
Troubleshooting
If
The sound is louder in one ear
than in the other.
The sound volume is low even
though the volume is set to max.
The sound is only in Mono even
though it is connected via a
stereo cable to a sound source
which provides stereo sound.
The bass reproduction is weak.
The Tone Control cannot be
adjusted.
It is not possible to select T
position.
The unit is acting strangely.
Humming occurs when con-
necting the stereo cable while
charging.
Interference is heard when used
in some environments
Try
Adjust the Balance

in the Settings Menu.
Adjust the Basic Attenuation

in the Settings Menu.
 Change to Stereo in the
Settings Menu.
 Switch off Bass Reduction
in the Settings Menu.
Use the Settings Menu

to activate the Tone Control
buttons or to adjust the sound.
 Use the Settings Menu to acti-
vate the T position.
Reset the unit to the factory

Settings Menu.
settings in the
Only use the supplied charger.

Move the product away from the

suspected source of radio frequ-
ency energy, for example
a transmitter.
