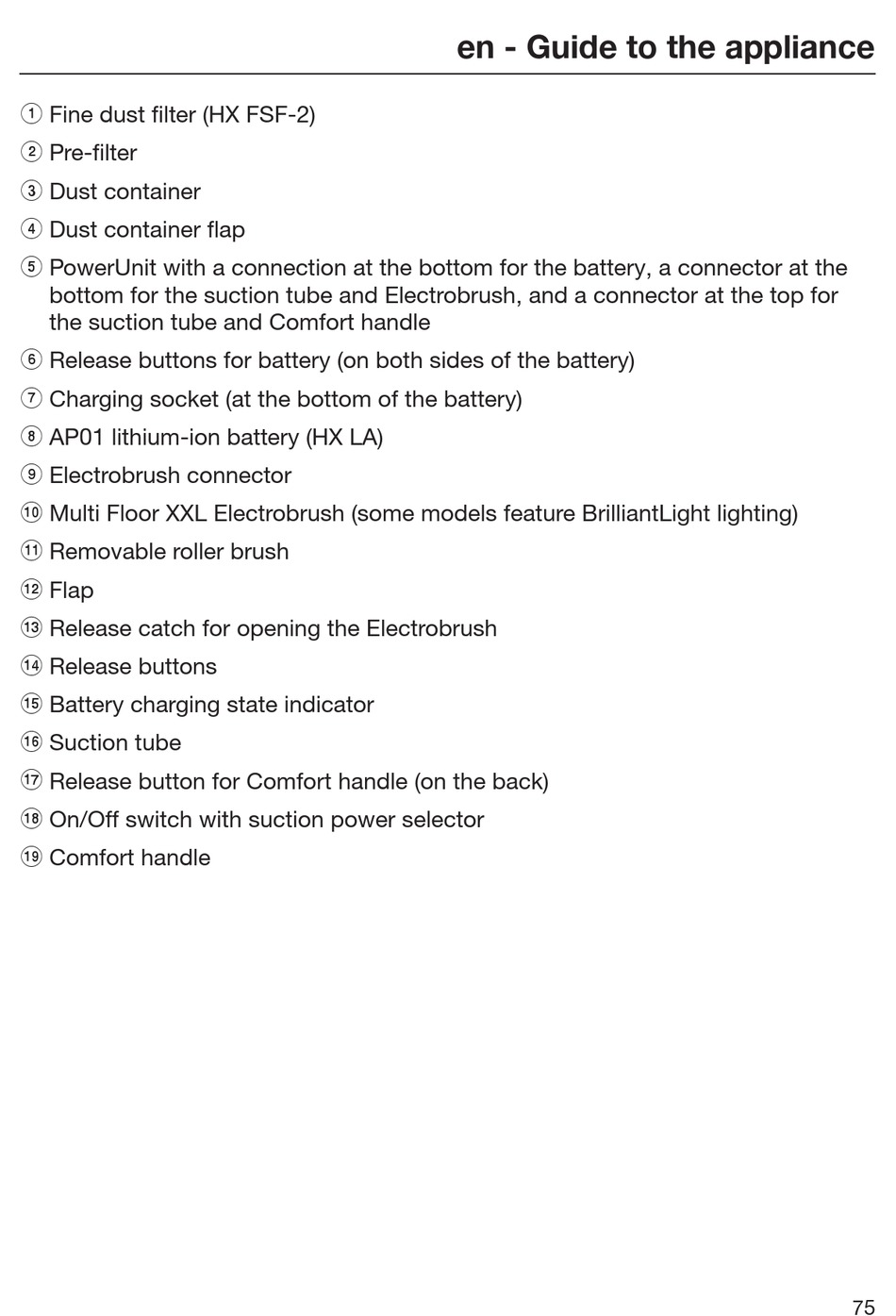

a Fine dust filter (HX FSF-2)
b Pre-filter
c Dust container
d Dust container flap
e PowerUnit with a connection at the bottom for the battery, a connector at the
bottom for the suction tube and Electrobrush, and a connector at the top for
the suction tube and Comfort handle
f Release buttons for battery (on both sides of the battery)
g Charging socket (at the bottom of the battery)
h AP01 lithium-ion battery (HX LA)
i Electrobrush connector
j Multi Floor XXL Electrobrush (some models feature BrilliantLight lighting)
k Removable roller brush
l Flap
m Release catch for opening the Electrobrush
n Release buttons
o Battery charging state indicator
p Suction tube
q Release button for Comfort handle (on the back)
r On/Off switch with suction power selector
s Comfort handle
en - Guide to the appliance
75
