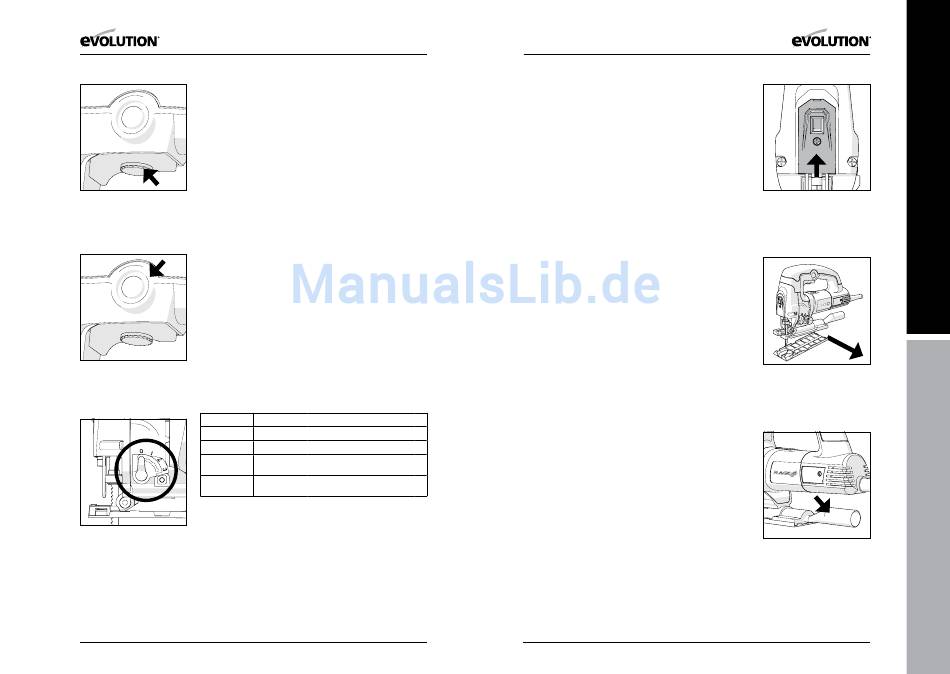

3. TRIGGER SWITCH LOCKING BUTTON (Fig. 3c)
• Pull the trigger fully and rotate the rotary control until the
desired speed is obtained.
• Push in the speed locking button to lock the trigger at the
selected speed.
• Press the trigger switch gently and then release to disengage
the selected speed and to switch the machine off.
4. CUTTING ACTION SELECTION SWITCH (Fig. 4)
This jigsaw has a 4 position switch (0-3) located on the Left
Fig 3 (b)
Hand side of the machine just behind the blade. Only operate
Close up view
this switch when the machine is switched 'Off' and the blade is
of Rotary Control.
stationary.
Position '0'
Positions '1 – 3' Orbital cutting actions
Orbital cutting action has an aggressive blade cutting motion
and is especially suited for cutting soft materials.
During orbital cutting the blade moves forwards as well as
up and down. Position 1 is the least aggressive of the orbital
cutting actions, with position 3 being the most aggressive.
The Table below gives some typical examples of the use of the
Fig 3 (c)
orbital cutting facility. We recommend that the operator always
Close up view of
practices on a piece of unwanted material to determine the
Locking Button.
most suitable selection for the task at hand.
POSITION
0
1
Hard materials such as chipboard, MDF, Plywood etc.
2
3
Fig 4
Close up view of
Selection Switch Lever.
12
www.evolutionpowertools.com
Straight cutting action
TYPICAL APPLICATION
Thin materials. Fine cuts. Tight curves. All metals.
Thick materials such as constructional timber and
plastic.
Fast cuts when cutting with the grain in softwood
material.
www.evolutionpowertools.com
5. LASER CUTTING GUIDE
This jigsaw is fitted with a Laser Guide which can be useful when
cutting straight lines. Only switch the Laser Guide on when you
are about to make a straight cut, and switch it off when the cut
has been completed. The switch is located on the front of the
machine. Press the 'I' side of the rocker switch to turn the Laser
Guide 'On' . Press the 'O' side of the rocker switch to turn the
Laser Guide 'Off' .
WARNING: Do not stare directly at the laser beam. A hazard
may exist if you deliberately stare into the beam. Please observe
all of the following safety rules.
• The laser beam must not be deliberately aimed at personnel
and must be prevented from being directed towards the eyes
of a person or animal.
• Always ensure that the laser beam is used only on workpieces
that have non-reflective surfaces, i.e natural wood or matt
surfaces etc.
• Never exchange the laser module assembly for a different
type or class of laser.
• Repairs to the laser module must only be conducted by
Evolution Power Tools or their authorized agent.
REPLACEMENT OF LASER BATTERIES
Power for the Laser Guide is provided by two (2) 'AAA' Cells.
When exhausted these should be replaced.
Access to the battery compartment is gained by loosening the
screw and removing the battery compartment cover.
(Fig. 5)
Observe the polarity of the cells and replace the cover after cell
replacement.
6. FOOTPLATE ANGLE ADJUSTMENT
Note: The footplate is factory set and adjusted so that the blade
cuts at 90
0
to the footplate.
The footplate may be tilted to an angle of up to 45
0
side with positive location stops at 15
, 30
and 45
.
0
0
0
To adjust the footplate:
WARNING: Disconnect the jigsaw from the power supply before
attempting to adjust the footplate.
• Unclip the plastic footplate shoe and store safely for future
installation. (Fig. 6)
• Withdraw the Dust Extraction Adaptor tube, if fitted, and
store safely for future installation. (Fig. 7)
13
Fig 5
Close up view of battery
compartment cover
and fixing screw.
Fig 6
View of footplate shoe
being unclipped and
removed from footplate.
to either
Fig 7
View of Adaptor tube in
service position.
