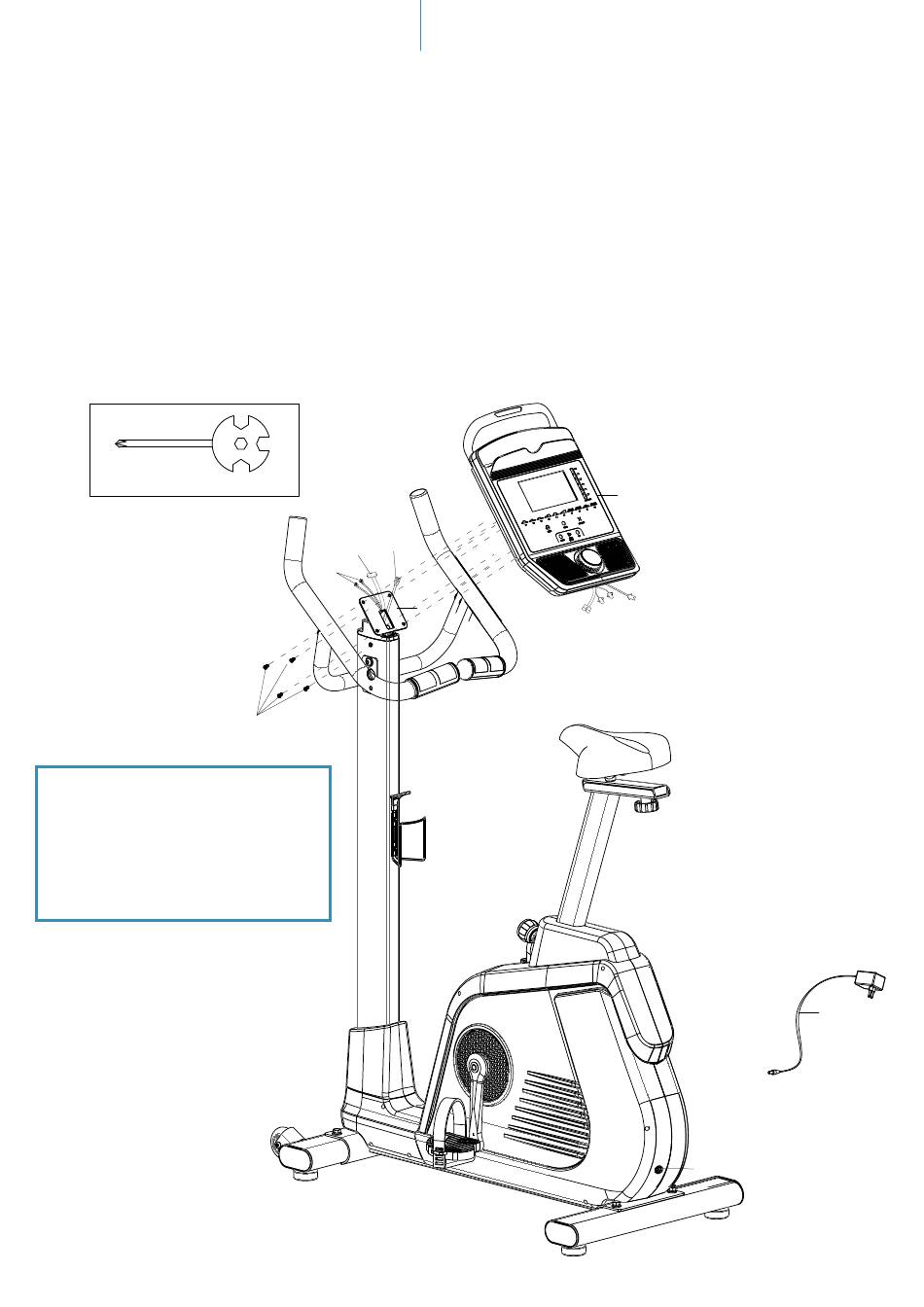

SET-UP INSTRUCTIONS
STEP 7
Remove the 4 screws (45) from the back of the computer (47).
Connect the cable extension (39), the computer cable (24) and the earthing cable II (93) to the
appropriate connections on the computer (47).
Then mount the computer (47) on the computer bracket (46) using the 4 screws (45).
Now connect the device to the power supply by plugging the power supply unit (15) into the
power supply connection (14) on the device and connecting it to a suitable socket.
