3

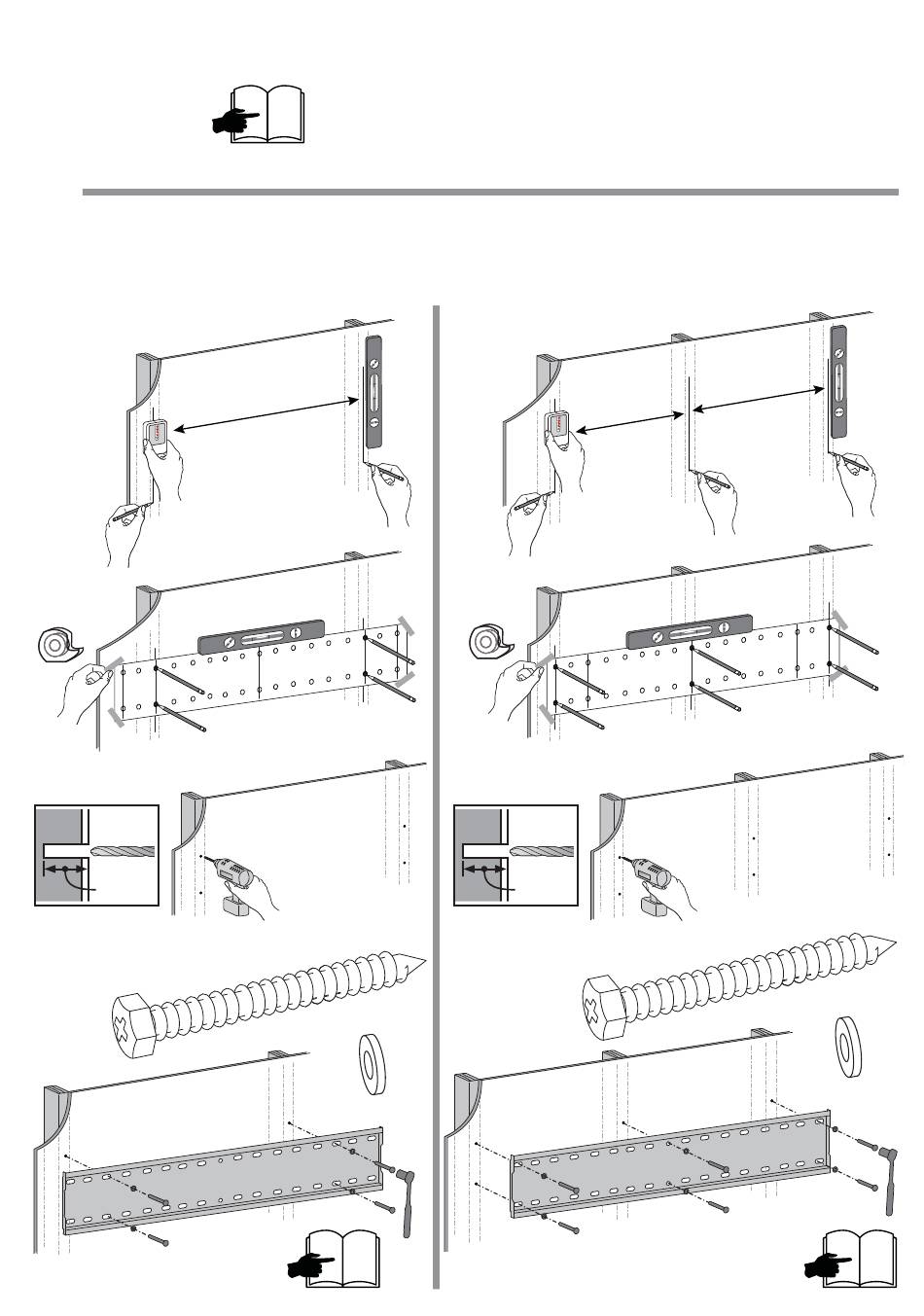

CONCRETE WALL INSTALLATION
CONCRETE
CONCRETO
BÉTON
MASSIVBETON
CEMENTO
БЕТОН
CONCRETO
ﺧرﺳﺎﻧﺔ
WOOD STUD INSTALLATION
WOOD STUD
ESTRUCTURA DE MADERA
MONTANT DE BOIS
HOLZPFOSTEN
ASSE DI LEGNO
ДЕРЕВЯННАЯ СТОЙКА
COLUNA DE MADEIRA
دﻋﺎﻣﺔ ﺧﺷﺑﯾﺔ
a
b
c
Ø 7/32"
(5.6mm)
2.5"
(63mm)
d
4x
8 of 15
9
A great way to verify a stud location is to tap a thin nail into the wall where you think the
stud is. Do this a number of times to verify the center and edges of the stud.
24" (610mm)
M8 x 60mm
4x
M8 Washer
13mm
10
a
16" (406mm)
b
c
Ø 7/32"
(5.6mm)
2.5"
(63mm)
6x
d
16" (406mm)
M8 x 60mm
6x
M8 Washer
13mm
10
888-61-266-W-01 rev. C • 04/19
