Fronius Robacta Drive CMT W Bedienungsanleitung Seite 42

Recommended
(1)
torch necks
(2)
(3)
(4)
(5)
(6)
Contact tubes required:
1)
2)

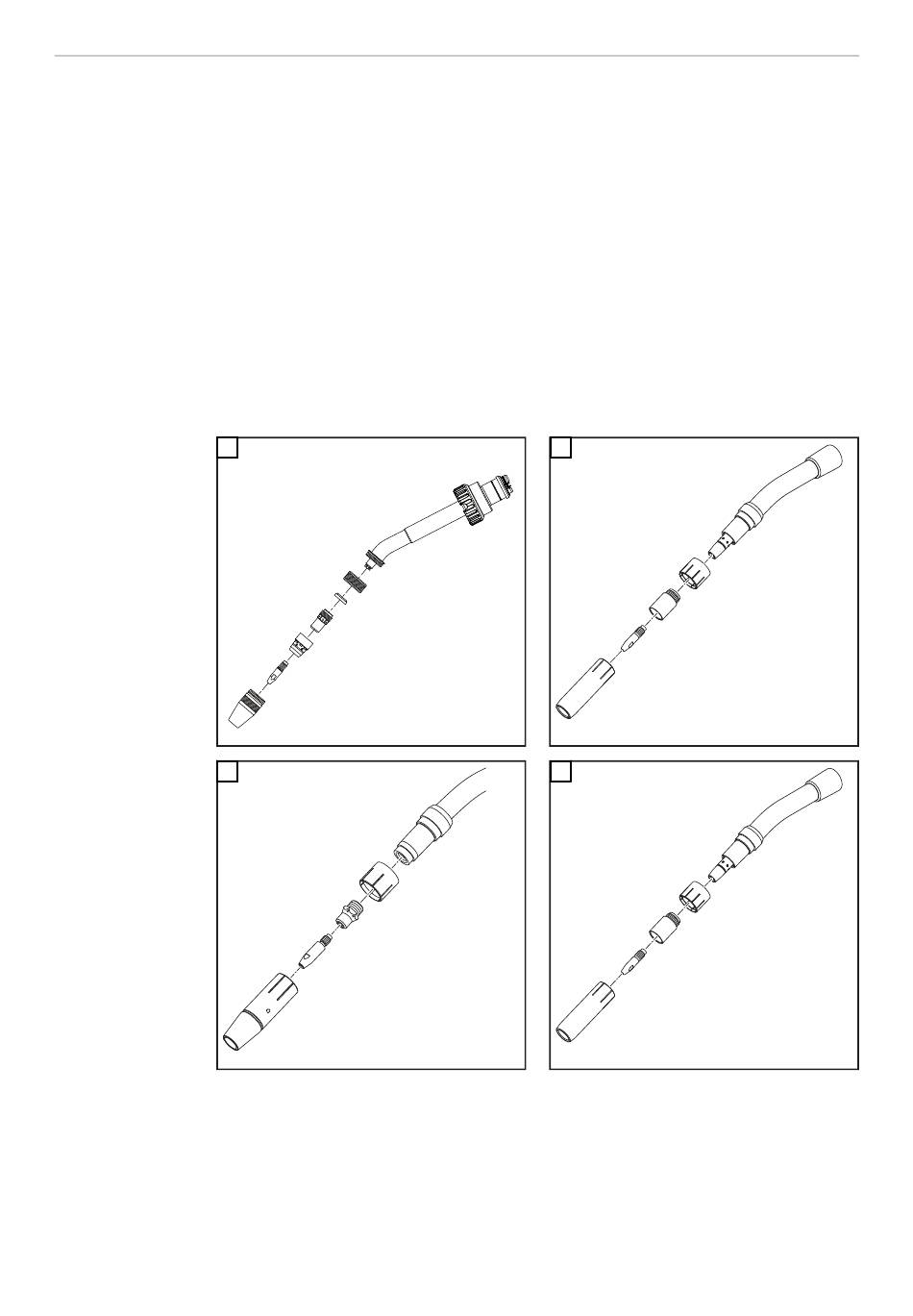

The following assembly steps are explained using a Robacta 300 / 500 as the ex-
ample. Assembly with other torch necks is carried out in a similar manner.
1
3
42
1)
Robacta 280 : 22°
1)
Robacta 300 : 22°, 36°
1)
Robacta 400 : 22°, 36°
2)
Robacta 500 : 22°, 36°
2)
Robacta 700 : 22°, 36°
2)
Robacta 5000 : 22°, 36°
M8 CB contact tube (with centre hole)
M10 CB contact tube (with centre hole)
2
4
