PA635-04-01E

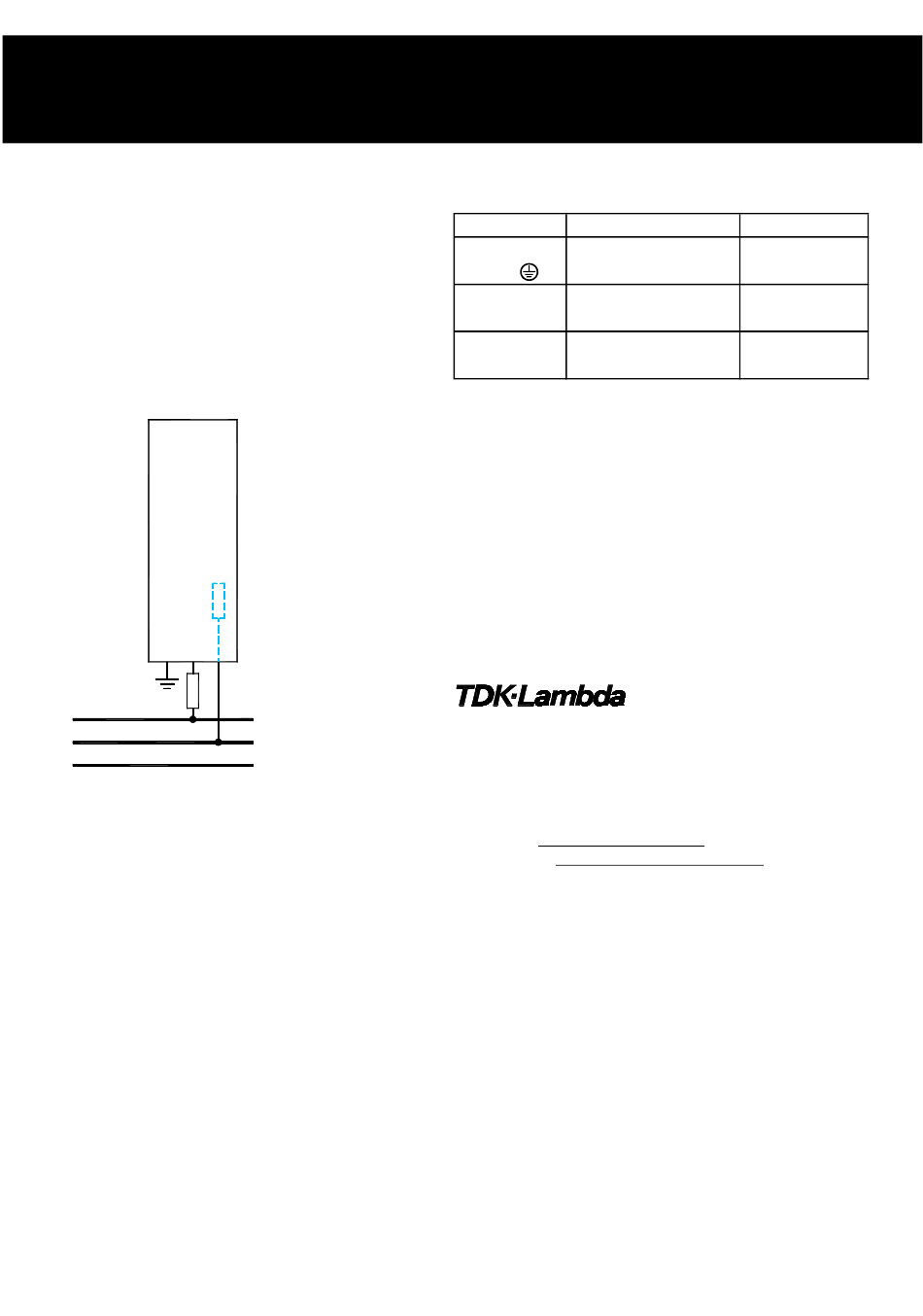

9. Phase to phase operation
The DRB240 is protected by an internal fuse in the Live line.
When connecting the DRB240 between two phases of a three
phase system an external fuse or circuit breaker must be used
in the Neutral line (N). This is to protect against a fault
between the now 'live' Neutral line and Earth. See section10
for external protection requirements.
Note: The phase-to-phase supply must not exceed the safety
approval input voltage of 100-240VAC+10% and 20A Max
branch circuit current.
DC
OUTPUT
AC
INPUT
PE
N
Fuse
L1
100-240VAC/20A
L2
MAX
L3
10. External Fuse Rating
If required a 250Vac/6.3A rated fuse should be fitted
externally on the input line. Surge current flows when line
turns on. Use slow-blow fuse or time-lag type fuse. Do not
use fast-blow fuse. Fuse rating is specified by in-rush current
value at line turn-on. Do not select the fuse according to input
current (RMS.) values under the actual load condition.
DOWNLOADED FROM WWW.SCATTS.CO.UK
Internal Fuse
Live(L) line
L
DOWNLOADED FROM WWW.SCATTS.CO.UK
11. DRB240 series UL508 Listed Condition
WIRING
Connector
Recommended Wire
Input
10~24 AWG
(L, N,
)
Output
10~24 AWG
(+V, -V)
Output
10~24 AWG
(DC OK)
1) Wire requirement is rated at minimum 105°C and to use
copper conductor only.
2) For use in a Pollution degree 2 environment only.
3) These products are considered for use where maximum
surrounding air temperature does not exceed 70°C. When
installing these products please refer to section 7 for
derating.
4) For indoor use only.
Product marking:
TDK-Lambda Singapore Pte. Ltd.
(Sales, Services and R&D)
1008 Toa Payoh North #06-01/08, #07-01/03
Singapore 318996
Telephone: +65 62517211
Facsimile: +65 62509171
WEBSITE: www.sg.lambda.tdk.com
Or WEBSITE: www.emea.lambda.tdk.com/uk
TDK-Lambda
DRB240 Series
INSTRUCTION MANUAL
Max. Torque
10.3 kgf.cm
(9 lbf.in)
10.3 kgf.cm
(9 lbf.in)
10.3 kgf.cm
(9 lbf.in)
