PA635-04-01E
Note: CE MARKING
CE Marking, when applied to a product covered by this handbook indicates compliance with the following:
Low Voltage Directive in that it is complies with EN60950-1 and EN62368-1.
EMC Directive
Restriction of the use of certain Hazardous Substances Directive

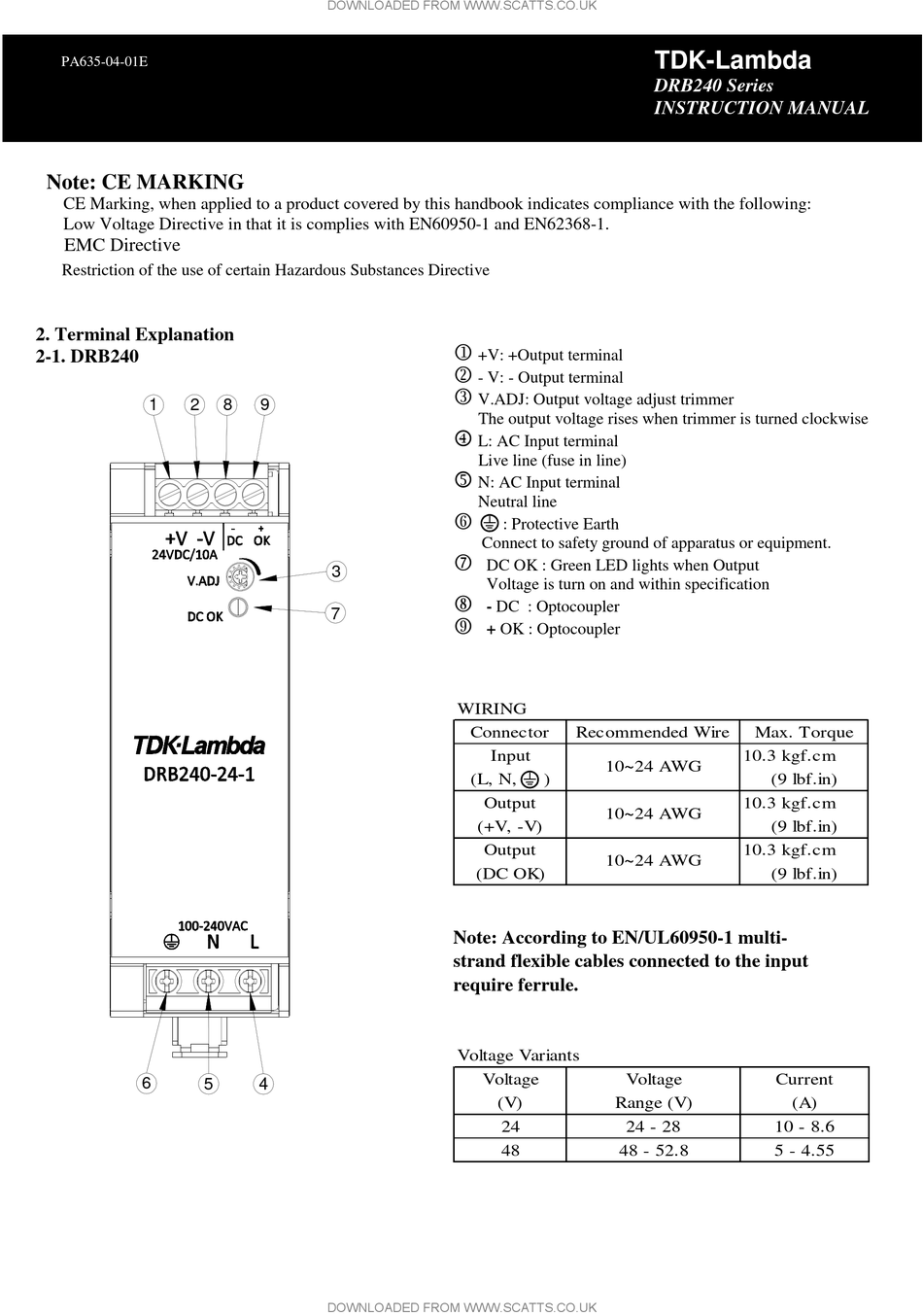

2. Terminal Explanation
2-1. DRB240
1
2
6
5
DOWNLOADED FROM WWW.SCATTS.CO.UK
8
9
3
7
4
DOWNLOADED FROM WWW.SCATTS.CO.UK
1
+V: +Output terminal
2
- V: - Output terminal
3
V.ADJ: Output voltage adjust trimmer
The output voltage rises when trimmer is turned clockwise
4
L: AC Input terminal
Live line (fuse in line)
5
N: AC Input terminal
Neutral line
6
: Protective Earth
Connect to safety ground of apparatus or equipment.
7
DC OK : Green LED lights when Output
Voltage is turn on and within specification
8
- DC : Optocoupler
9
+ OK : Optocoupler
WIRING
Connector
Recommended Wire
Input
10~24 AWG
(L, N,
)
Output
10~24 AWG
(+V, -V)
Output
10~24 AWG
(DC OK)
Note: According to EN/UL60950-1 multi-
strand flexible cables connected to the input
require ferrule.
Voltage Variants
Voltage
Voltage
(V)
Range (V)
24
24 - 28
48
48 - 52.8
TDK-Lambda
DRB240 Series
INSTRUCTION MANUAL
Max. Torque
10.3 kgf.cm
(9 lbf.in)
10.3 kgf.cm
(9 lbf.in)
10.3 kgf.cm
(9 lbf.in)
Current
(A)
10 - 8.6
5 - 4.55
