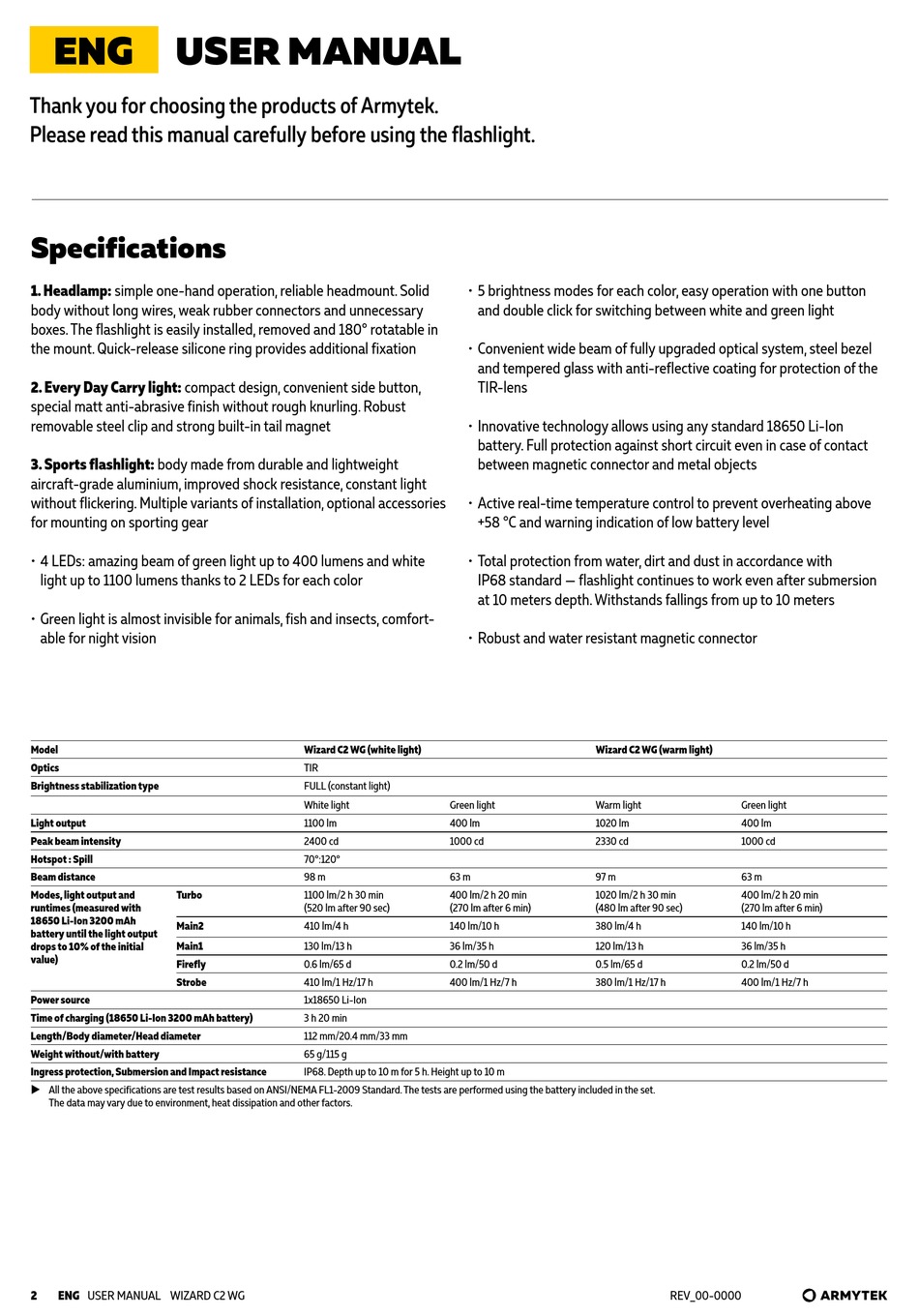

ENG USER MANUAL
Thank you for choosing the products of Armytek.
Please read this manual carefully before using the flashlight.
Specifications
1. Headlamp: simple one-hand operation, reliable headmount. Solid
body without long wires, weak rubber connectors and unnecessary
boxes. The flashlight is easily installed, removed and 180° rotatable in
the mount. Quick-release silicone ring provides additional fixation
2. Every Day Carry light: compact design, convenient side button,
special matt anti-abrasive finish without rough knurling. Robust
removable steel clip and strong built-in tail magnet
3. Sports flashlight: body made from durable and lightweight
aircraft-grade aluminium, improved shock resistance, constant light
without flickering. Multiple variants of installation, optional accessories
for mounting on sporting gear
• 4 LEDs: amazing beam of green light up to 400 lumens and white
light up to 1100 lumens thanks to 2 LEDs for each color
• Green light is almost invisible for animals, fish and insects, comfort-
able for night vision
Model
Optics
Brightness stabilization type
Light output
Peak beam intensity
Hotspot : Spill
Beam distance
Modes, light output and Turbo
runtimes (measured with
18650 Li-Ion 3200 mAh
Main2
battery until the light output
Main1
drops to 10% of the initial
value)
Firefly
Strobe
Power source
Time of charging (18650 Li-Ion 3200 mAh battery)
Length/Body diameter/Head diameter
Weight without/with battery
Ingress protection, Submersion and Impact resistance
X All the above specifications are test results based on ANSI/NEMA FL1-2009 Standard. The tests are performed using the battery included in the set.
The data may vary due to environment, heat dissipation and other factors.
2 ENG USER MANUAL WIZARD C2 WG
• 5 brightness modes for each color, easy operation with one button
• Convenient wide beam of fully upgraded optical system, steel bezel
• Innovative technology allows using any standard 18650 Li-Ion
• Active real-time temperature control to prevent overheating above
• Total protection from water, dirt and dust in accordance with
• Robust and water resistant magnetic connector
Wizard С2 WG (white light)
TIR
FULL (constant light)
White light Green light
1100 lm 400 lm
2400 cd 1000 cd
70°:120°
98 m 63 m
1100 lm/2 h 30 min 400 lm/2 h 20 min
(520 lm after 90 sec) (270 lm after 6 min)
410 lm/4 h 140 lm/10 h
130 lm/13 h 36 lm/35 h
0.6 lm/65 d 0.2 lm/50 d
410 lm/1 Hz/17 h 400 lm/1 Hz/7 h
1x18650 Li-Ion
3 h 20 min
112 mm/20.4 mm/33 mm
65 g/115 g
IP68. Depth up to 10 m for 5 h. Height up to 10 m
and double click for switching between white and green light
and tempered glass with anti-reflective coating for protection of the
TIR-lens
battery. Full protection against short circuit even in case of contact
between magnetic connector and metal objects
+58 °C and warning indication of low battery level
IP68 standard — flashlight continues to work even after submersion
at 10 meters depth. Withstands fallings from up to 10 meters
Wizard С2 WG (warm light)
Warm light
1020 lm
2330 cd
97 m
1020 lm/2 h 30 min
(480 lm after 90 sec)
380 lm/4 h
120 lm/13 h
0.5 lm/65 d
380 lm/1 Hz/17 h
Green light
400 lm
1000 cd
63 m
400 lm/2 h 20 min
(270 lm after 6 min)
140 lm/10 h
36 lm/35 h
0.2 lm/50 d
400 lm/1 Hz/7 h
