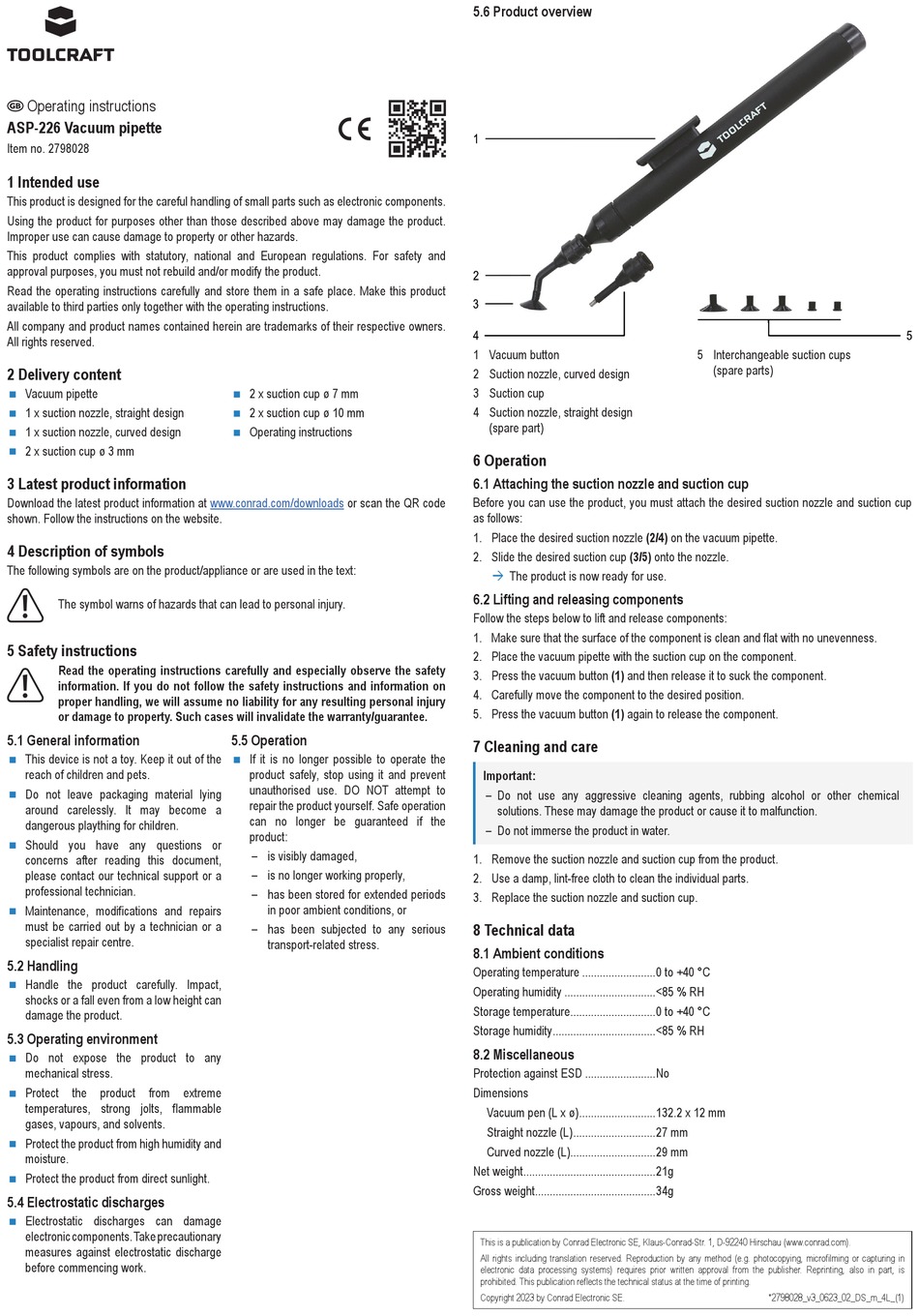

Operating instructions
ASP-226 Vacuum pipette
Item no. 2798028
1 Intended use
This product is designed for the careful handling of small parts such as electronic components.
Using the product for purposes other than those described above may damage the product.
Improper use can cause damage to property or other hazards.
This product complies with statutory, national and European regulations. For safety and
approval purposes, you must not rebuild and/or modify the product.
Read the operating instructions carefully and store them in a safe place. Make this product
available to third parties only together with the operating instructions.
All company and product names contained herein are trademarks of their respective owners.
All rights reserved.
2 Delivery content
Vacuum pipette
1 x suction nozzle, straight design
1 x suction nozzle, curved design
2 x suction cup ø 3 mm
3 Latest product information
Download the latest product information at
shown. Follow the instructions on the website.
4 Description of symbols
The following symbols are on the product/appliance or are used in the text:
The symbol warns of hazards that can lead to personal injury.
5 Safety instructions
Read the operating instructions carefully and especially observe the safety
information. If you do not follow the safety instructions and information on
proper handling, we will assume no liability for any resulting personal injury
or damage to property. Such cases will invalidate the warranty/guarantee.
5.1 General information
This device is not a toy. Keep it out of the
reach of children and pets.
Do not leave packaging material lying
around carelessly. It may become a
dangerous plaything for children.
Should you have any questions or
concerns after reading this document,
please contact our technical support or a
professional technician.
Maintenance, modifications and repairs
must be carried out by a technician or a
specialist repair centre.
5.2 Handling
Handle the product carefully. Impact,
shocks or a fall even from a low height can
damage the product.
5.3 Operating environment
Do not expose the product to any
mechanical stress.
Protect the product from extreme
temperatures, strong jolts, flammable
gases, vapours, and solvents.
Protect the product from high humidity and
moisture.
Protect the product from direct sunlight.
5.4 Electrostatic discharges
Electrostatic discharges can damage
electronic components. Take precautionary
measures against electrostatic discharge
before commencing work.
2 x suction cup ø 7 mm
2 x suction cup ø 10 mm
Operating instructions
www.conrad.com/downloads
or scan the QR code
5.5 Operation
If it is no longer possible to operate the
product safely, stop using it and prevent
unauthorised use. DO NOT attempt to
repair the product yourself. Safe operation
can no longer be guaranteed if the
product:
– is visibly damaged,
– is no longer working properly,
– has been stored for extended periods
in poor ambient conditions, or
– has been subjected to any serious
transport-related stress.
5.6 Product overview
1 Vacuum button
2 Suction nozzle, curved design
3 Suction cup
4 Suction nozzle, straight design
(spare part)
6 Operation
6.1 Attaching the suction nozzle and suction cup
Before you can use the product, you must attach the desired suction nozzle and suction cup
as follows:
1. Place the desired suction nozzle (2/4) on the vacuum pipette.
2. Slide the desired suction cup (3/5) onto the nozzle.
The product is now ready for use.
Æ
6.2 Lifting and releasing components
Follow the steps below to lift and release components:
1. Make sure that the surface of the component is clean and flat with no unevenness.
2. Place the vacuum pipette with the suction cup on the component.
3. Press the vacuum button (1) and then release it to suck the component.
4. Carefully move the component to the desired position.
5. Press the vacuum button (1) again to release the component.
7 Cleaning and care
Important:
– Do not use any aggressive cleaning agents, rubbing alcohol or other chemical
solutions. These may damage the product or cause it to malfunction.
– Do not immerse the product in water.
1. Remove the suction nozzle and suction cup from the product.
2. Use a damp, lint-free cloth to clean the individual parts.
3. Replace the suction nozzle and suction cup.
8 Technical data
8.1 Ambient conditions
Operating temperature .........................0 to +40 °C
Operating humidity ...............................<85 % RH
Storage temperature .............................0 to +40 °C
Storage humidity ...................................<85 % RH
8.2 Miscellaneous
Protection against ESD ........................No
Dimensions
Vacuum pen (L x ø) ..........................132.2 x 12 mm
Straight nozzle (L) ............................27 mm
Curved nozzle (L).............................29 mm
Net weight .............................................21g
Gross weight .........................................34g
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method (e.g. photocopying, microfilming or capturing in
electronic data processing systems) requires prior written approval from the publisher. Reprinting, also in part, is
prohibited. This publication reflects the technical status at the time of printing.
Copyright 2023 by Conrad Electronic SE.
5 Interchangeable suction cups
(spare parts)
*2798028_v3_0623_02_DS_m_4L_(1)
