EN

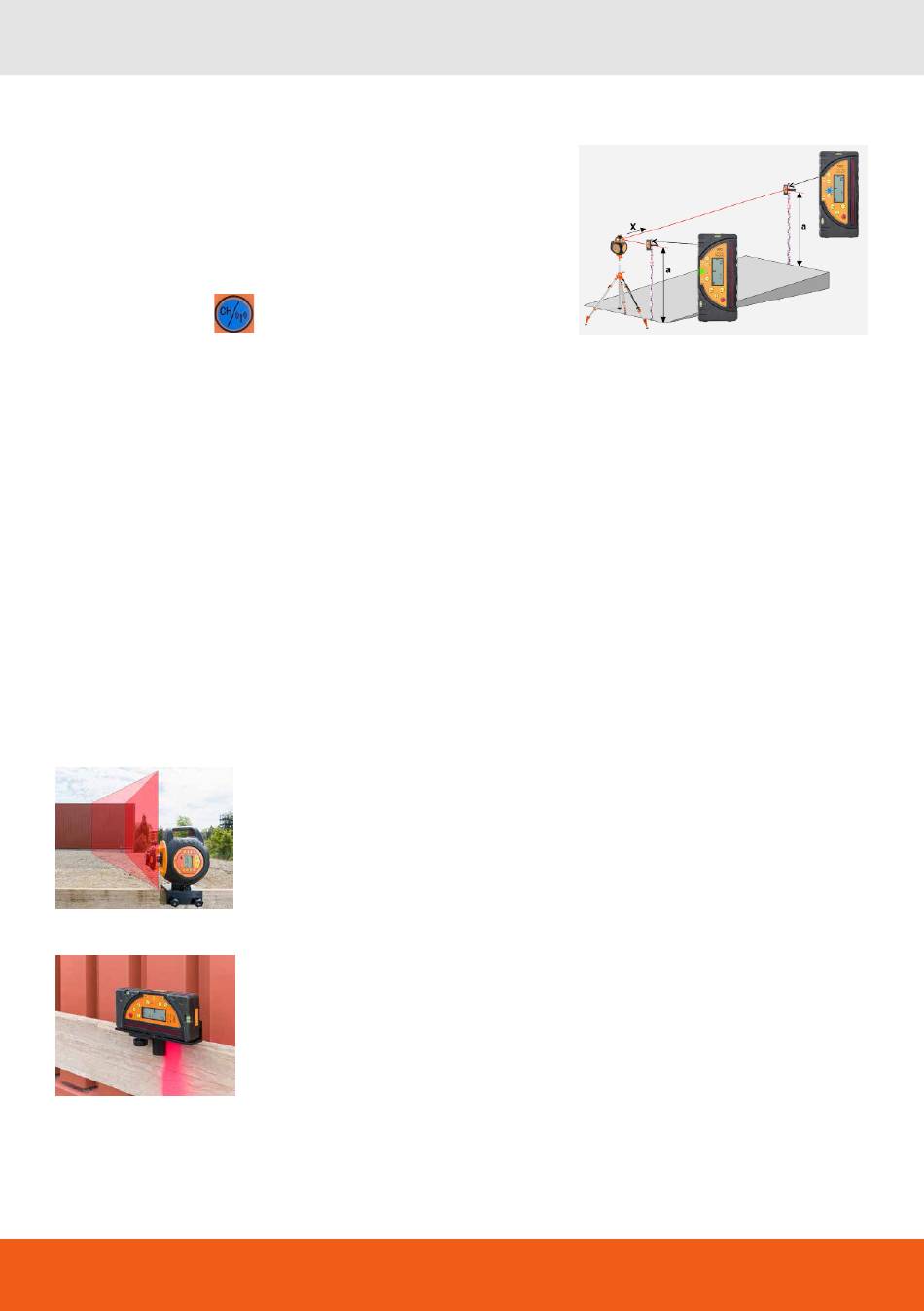

1. Set up the tracking laser at the foot of the ramp so that the
X-axis points towards the slope and power on the laser.
2. After the laser has levelled, adjust the height of the laser
receiver at the foot of the ramp until the zero position is
displayed (the green LED lights up and continuous beep
sounds).
3. Now move the laser receiver to the top of the ramp and
press the button
The tracking function is activated and the blue LED flashes.
4. The tracking laser now automatically tracks for the laser
receiver until the target slope is found. As soon as the target
slope is found and the green LED lights up, the blue LED
goes out and the laser receiver switches to normal reception
mode.
5. On the display of the laser and on the remote control you
can now read the exact value of the ramp inclination in %
(not in the monitored tracking function).
SCAFFOLDING
Set up the laser
Set up the receiver
18
for 2 sec.
1. Attach the tracking laser to the scaffold clamp holder on
the scaffold.
2. Power on the laser and bring the laser beam into coinci-
dence with the reference nail.
1. Attach the receiver FR 80-MM TRACKING to the scaffold
using the clamp and the adapter brackets.
2. Bring the zero mark of the receiver holder into coincidence
with the reference nail.
3. Power on the the receiver.
