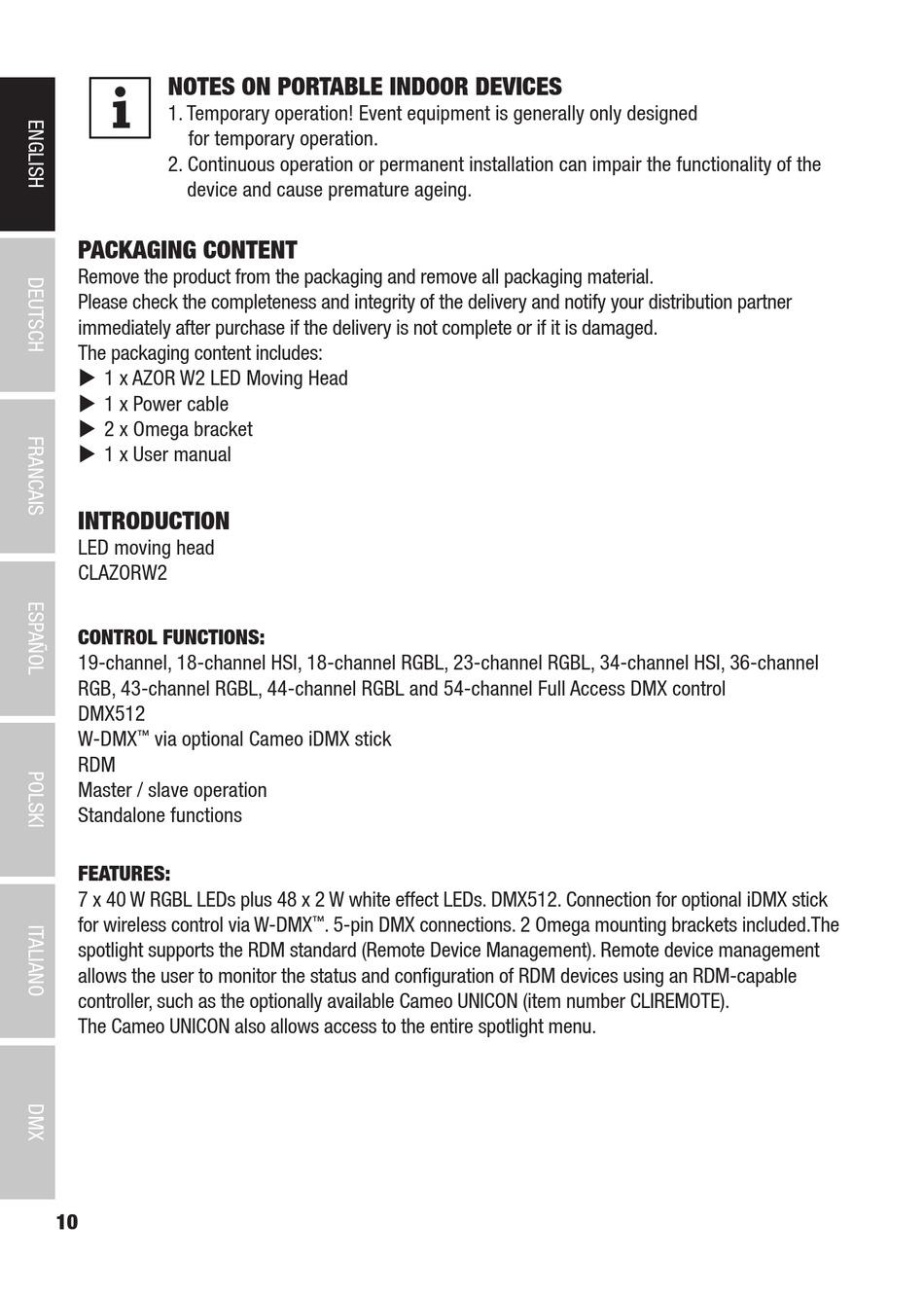

NOTES ON PORTABLE INDOOR DEVICES
1. Temporary operation! Event equipment is generally only designed
for temporary operation.
2. Continuous operation or permanent installation can impair the functionality of the
device and cause premature ageing.
PACKAGING CONTENT
Remove the product from the packaging and remove all packaging material.
Please check the completeness and integrity of the delivery and notify your distribution partner
immediately after purchase if the delivery is not complete or if it is damaged.
The packaging content includes:
X 1 x AZOR W2 LED Moving Head
X 1 x Power cable
X 2 x Omega bracket
X 1 x User manual
INTRODUCTION
LED moving head
CLAZORW2
CONTROL FUNCTIONS:
19-channel, 18-channel HSI, 18-channel RGBL, 23-channel RGBL, 34-channel HSI, 36-channel
RGB, 43-channel RGBL, 44-channel RGBL and 54-channel Full Access DMX control
DMX512
W-DMX
via optional Cameo iDMX stick
™
RDM
Master / slave operation
Standalone functions
FEATURES:
7 x 40 W RGBL LEDs plus 48 x 2 W white effect LEDs. DMX512. Connection for optional iDMX stick
for wireless control via W-DMX
spotlight supports the RDM standard (Remote Device Management). Remote device management
allows the user to monitor the status and configuration of RDM devices using an RDM-capable
controller, such as the optionally available Cameo UNICON (item number CLIREMOTE).
The Cameo UNICON also allows access to the entire spotlight menu.
10
. 5-pin DMX connections. 2 Omega mounting brackets included.The
™
