Quick Start / C31SMARTDOCKPD/ English

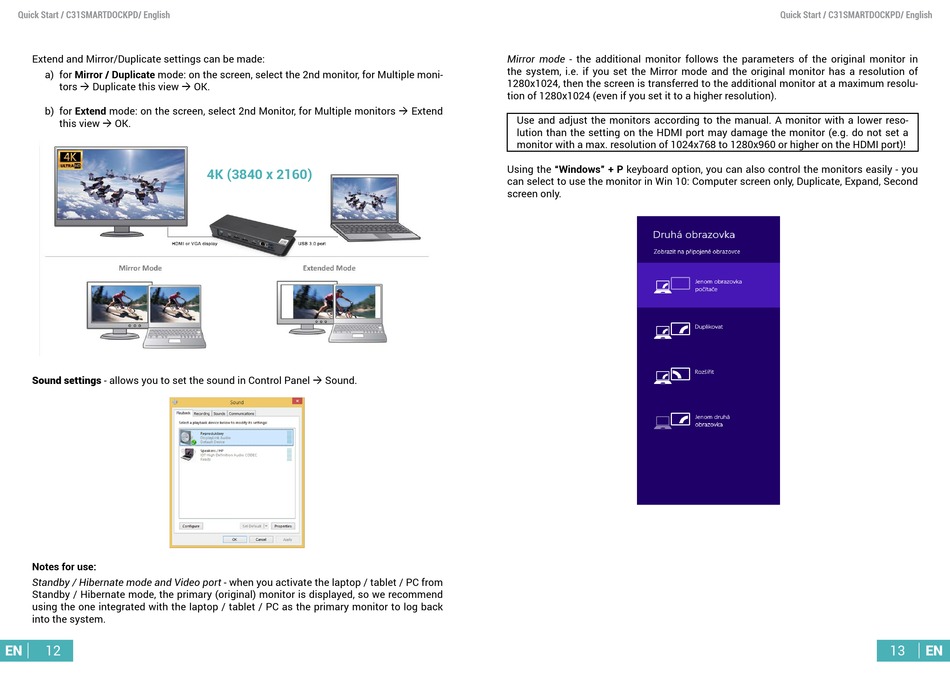

Extend and Mirror/Duplicate settings can be made:
a) for Mirror / Duplicate mode: on the screen, select the 2nd monitor, for Multiple moni-
tors Duplicate this view OK.
b) for Extend mode: on the screen, select 2nd Monitor, for Multiple monitors Extend
this view OK.
Sound settings - allows you to set the sound in Control Panel Sound.
Notes for use:
Standby / Hibernate mode and Video port - when you activate the laptop / tablet / PC from
Standby / Hibernate mode, the primary (original) monitor is displayed, so we recommend
using the one integrated with the laptop / tablet / PC as the primary monitor to log back
into the system.
EN
12
4K (3840 x 2160)
Mirror mode - the additional monitor follows the parameters of the original monitor in
the system, i.e. if you set the Mirror mode and the original monitor has a resolution of
1280x1024, then the screen is transferred to the additional monitor at a maximum resolu-
tion of 1280x1024 (even if you set it to a higher resolution).
Use and adjust the monitors according to the manual. A monitor with a lower reso-
lution than the setting on the HDMI port may damage the monitor (e.g. do not set a
monitor with a max. resolution of 1024x768 to 1280x960 or higher on the HDMI port)!
Using the "Windows" + P keyboard option, you can also control the monitors easily - you
can select to use the monitor in Win 10: Computer screen only, Duplicate, Expand, Second
screen only.
Quick Start / C31SMARTDOCKPD/ English
13
EN
