Unscrew the shoe (1) from the sensor (2)
4

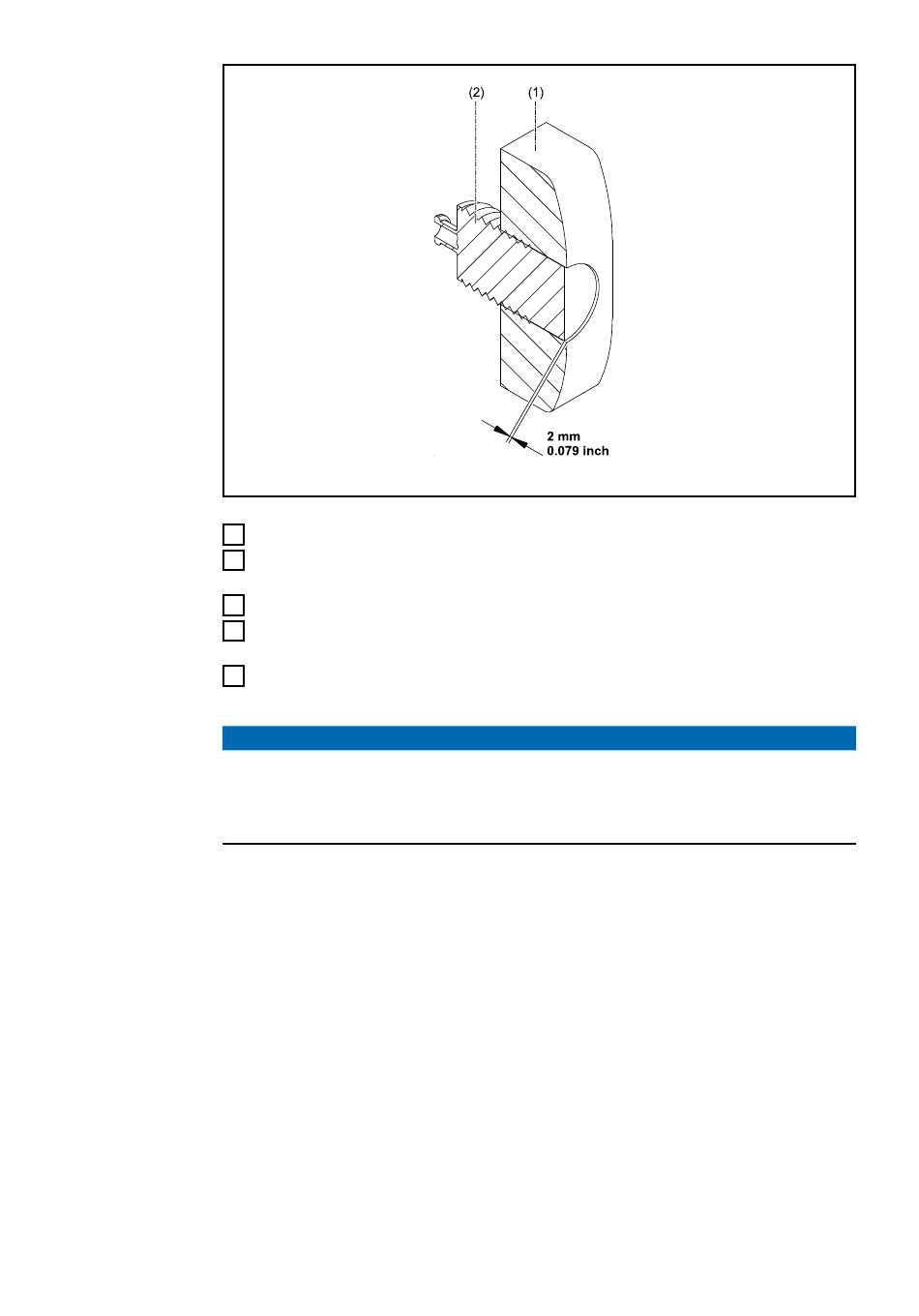

Screw a new shoe (1) onto the sensor (2), ensuring that the gap between the
5
sliding surface of the shoe and the surface of the sensor is 2 mm (0.079 inch)
Tighten the hexagonal nut (4)
6
Position the shoe (1) and sensor (2) on the retaining arm and tighten using
7
two screws (5)
Unlock the retaining arm (3) and ensure that the shoe (1) is touching the wire
8
electrode
NOTE!
Risk due to incorrect sensor positioning.
False triggers can be the result.
▶
Make sure, the retaining arm must not touch the wirespool or the wire elec-
trode.
